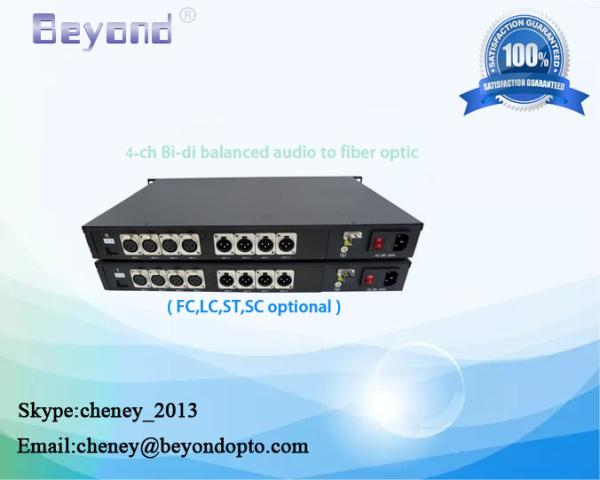

2-way XLR audio BY-XLR-4AA bi-directional broadcast audio over fiber extender,4-ch BIDI XLR auido to fiber converter
2-way XLR audio BY-XLR-4AA bi-directional broadcast audio over fiber extender,4-ch BIDI XLR auido to fiber converter
Specifications
Brand Name :
Beyondopto
Model Number :
BY-XLR-4AA
Certification :
CE,FCC,Rosh
Place of Origin :
ShenZhen,China
MOQ :
1 pair
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
1000 pairs per month
Delivery Time :
1-3 working days
Packaging Details :
paper box packing for export
Wavelength :
1310nm&1470nm~1610nm
Optical connector :
FC、ST、SC 、LC(optional)
Distance :
0~20KM
Impedance :
10K Ohm
Sample Rates From :
48kHz
Shipping Weight: :
7kg
Installation :
19’’ 1U rack-mount chassis
Description

4 ch 2 way balanced audio to fiber series support 4 Channel BIDI 16-bit digitally encoded broadcast quality balanced audio over one multi-mode or single-mode optical fiber. These fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audioand Professional AV applications, etc, and are available for stand-alone or rack-mount installations. FC, ST or SC optical connectors is optional.

Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.

Specifications

Opitcal:

Wavelength 1310nm&1470nm~1610nm
Output Power -10~ -5dBm / -5~0dBm
Optic fiber 50/125u multimode,62.5/125u multimode,9/125u single mode
Rx sensitivity -25dBm
Optical connector FC,ST,SC ,LC(optional)
Distance 0~500M (MM) / 0~20KM/40KM/60KM/80KM (SM)

Balanced Audio

Number of Channels 4 Input + 4 Output
Input Connector XLR(female)
Output Connector XLR(male)
Input / Output Impedance 10K Ohm
Input capacitance LINE inputs 10 pF
Max input/output voltage 3.0Vp-p
Frequency Response 10 Hz～24kHz @±3dB
Sample Rates From 48kHz
SNR > 80dB

Electrical & Mechanical

Power Adapter: AC 90V~240V
Power Consumption: < 8W
Installation 19’’ 1U rack-mount chassis
Shipping Weight: (include Transmitter & Receiver ) 7kg

Environmental

Operating Temperature: -20°C ~ +75°C
Storage Temperature: -40°C ~ +85°C
Relative Humidity: 0% ~ 95% (non-condensing)
MTBF: >100,000 hours

Audio connection diagram2-way XLR audio BY-XLR-4AA bi-directional broadcast audio over fiber extender,4-ch BIDI XLR auido to fiber converter
