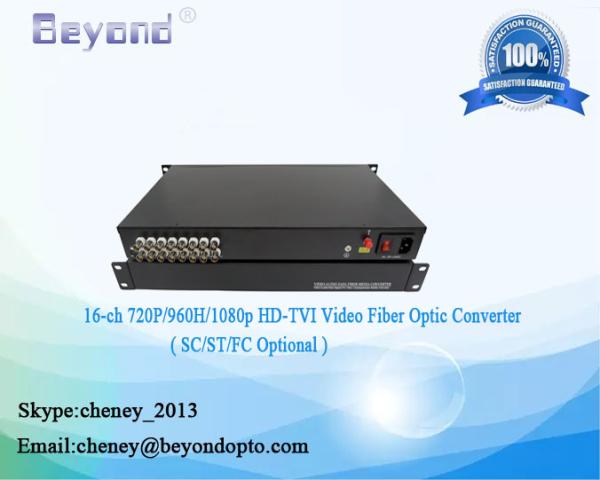

16-ch HD-TVI video to fiber converter,for 2-Mp/4-MP 1080P/960H/720P HD-TVI coaxial cameras
16-ch HD-TVI video to fiber converter,for 2-Mp/4-MP 1080P/960H/720P HD-TVI coaxial cameras
Specifications
Brand Name :
Beyondopto
Model Number :
BY-TVI-16V-1080P
Certification :
CE FCC ROSH
Place of Origin :
China
MOQ :
1 pair
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
1000 pairs per pair FOB ShenZhen
Delivery Time :
3-7 working days
Packaging Details :
Paper box packing for export
Wavelength :
1310nm&1550nm
Transmission Distance :
9/125u single mode， 20km
Optical connector :
FC、ST、SC (optional)
impedance :
75Ω
Power :
AC 90~240V
Unit Weight (pair) :
7.5kg
Dimension :
482mm×252mm×50mm
Package size :
54×40×18cm
Description

16 ch HDTVI TO Fiber Converter can simultaneously transmit 16 ch HDTVI +1 ch RS485(optional) over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment . Compatible with 720p/25,720p/30,720p/50,720p/60,1080p/25,1080p/30. Lossless non-compression real time transmission.

Features
1. High definition, Lossless non-compression real time transmission
2. Auto recognition of input video format as 25/30/50/60fps@720P & 25/30fps@1080P
3. UPnP, easy installation
4. Constant input optical power, and large dynamic range , no electrical or optical adjustments required .
5. Industry-grade of operating temperature from -30℃to 75℃
6. 19’’ 1U rack-mount chassis.
7. Optical interface: FC,ST, SC (optional)

Specifications
Opitcal:

Wavelength1310nm&1550nm
Output Power-6~-2dBm
Rx sensitivity-22dBm
Transmission Distance9/125u single mode, 20km
Optical connectorFC,ST,SC (optional)


Video:

Number of Channels16
Input/output impedance75Ω
Physical PortBNC port
Standard video input/output voltage1.0Vp-p
Video Bandwidth60MHz
Sampling Bandwidth10bit
Sampling Frequency120MHz
Rise and Fall time<0.8ns
Optical Signal Intrinsic Jitter<0.2 UI
Differential Gain< ±1.5%
Differential Phase< ±1°


Data:

Data protocolRS485
Data rate0~200 Kbps
Error rate< 10-9
ConnectorStandard terminal lead


Other

PowerAC 90~240V
Power Consumption≤15W
Temperature-30ºC ~75ºC
Humidity10%~90% RH
Unit Weight (pair)7.5kg
Dimension482mm×252mm×50mm
Package size54×40×18cm
Installation19’’ 1U rack-mount chassis
MTBF≥ 100000Hours

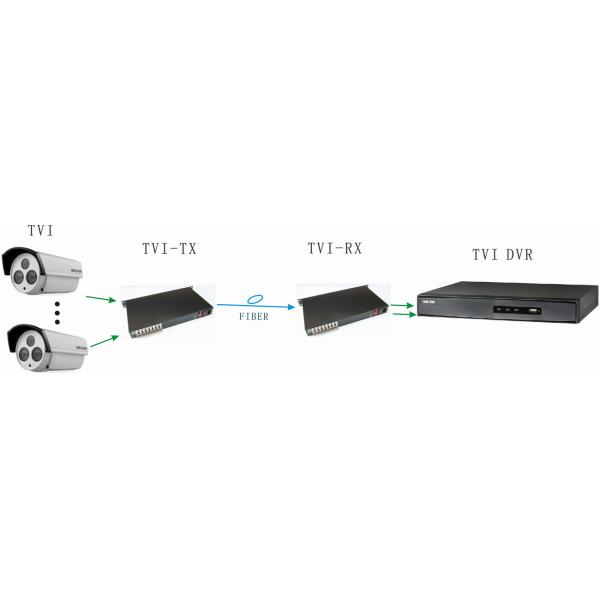

System connection diagram

16-ch HD-TVI video to fiber converter,for 2-Mp/4-MP 1080P/960H/720P HD-TVI coaxial cameras


16-ch HD-TVI video to fiber converter,for 2-Mp/4-MP 1080P/960H/720P HD-TVI coaxial cameras
