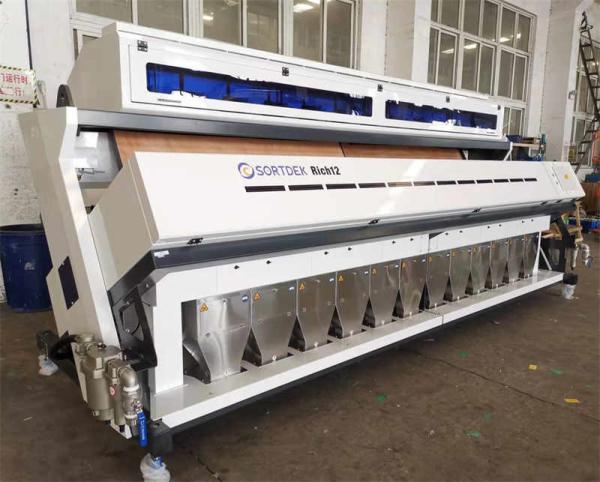

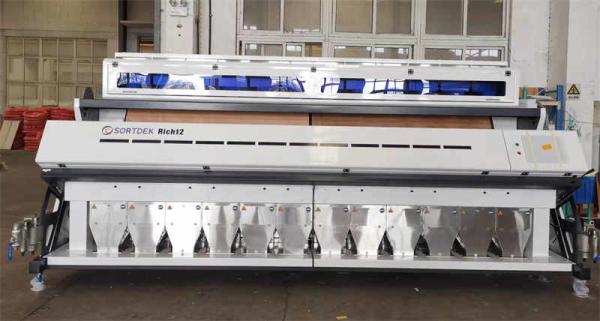

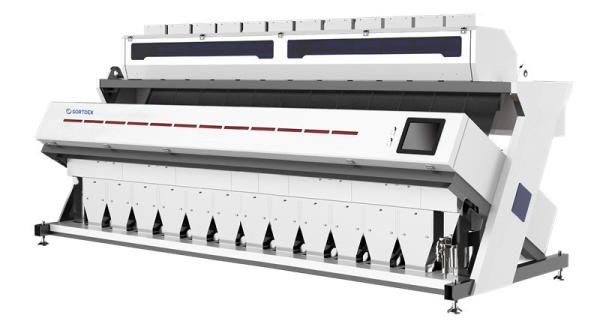

Super Large Capacity 20-25 TPH 12 Chutes AI Rice Color Sorter Rich 12

Ture Color CCD RICH Series AI color sorter is the premium model for a variety of rice sorting, such as raw rice, parboiled rice, basmati rice, indica rice, japonica rice, broken rice, etc.,the extreme color and size sorting performance brings extra value to the clients. Ultra-brain intelligent recognition, combined with image capture AI self-learning algorithm, improve optical error and realize adaptive operation of color sorting. Two chutes to twelve chutes machine available, upper dust suction system can be optional.

Highlights:
Extreme Simplified Operation
Protecting shield for material feeding
Topspeed cross positioning, flexible removal
AI self-learning, one-key simulation, acquiring optimal sorting scheme
Realize nonlinear distortion correction, improve the identification accuracy of spots and extreme light-yellow

Technial Paremeters:

Features:

1. HD industrial LCD screen with Linux operating system, 24-bit true color display.
2. High precision image processing system includes ultra-wide angle low distortion high speed lens and ultra-color high-definition CCD sensor, AI self-learning algorithm for image recognition can correct the optical errors automatically in the process of image acquisition.
3. Automatically uniform feeding, flow rate controlled adaptively.
4. Intelligent variable light source with digital stepless automatic dimming, it can adjust the brightness of the LED automatically according to the material sorting requirements and environment changing due to advanced digital automatic LED light adjustment technology.
5. Independent developed intelligent magnetic control high-frequency ejector has no air leakage problem thanks to the replacement of intelligent lever flexible return technology for traditional pressure return technology.
6. Barycenter & centroid coordinating algorithm, top-speed cross positioning the center point of material and flexibly remove defect accurately.
7. Intelligent air curtain dust removal from sorting chamber
8. AI deep learning and customized intelligent solutions for color sorting and size sorting both.The users can set the area of the material color, shape, size and defect by themselves and confirm the rejected material, so the machine can automatically set the sorting solution of the material according to the independent calculating, intelligent recognition and intelligent sorting principles with one key intelligent control technology.
9. AI self-learning, one-key simulation, acquiring optimal sorting scheme; operation and commissioning is so easy.
10. Equipped with reverse sorting, multiple times sorting methodology.
11. More than 1000 sorting schemes can be stored and switched with one key.
12. Cloud service technical platform, remote control, operation, maintenance, software upgrade can be achieved and it can detect and solve the LED light, electronic, mechanical and adjustment problems. It also can provide real-time online tracking service for the machine operation monitoring,data acquisition and online instruction.

Key Components and Brand:
Toshiba brand Full Color Camera CCD with 5400 pixel
Nikon industrial camera
Altera™ DSP, FPGA and chips
MeanWell™ brand power supply
Advantec™ brand display
SMC™ brand filters

Configuration:
