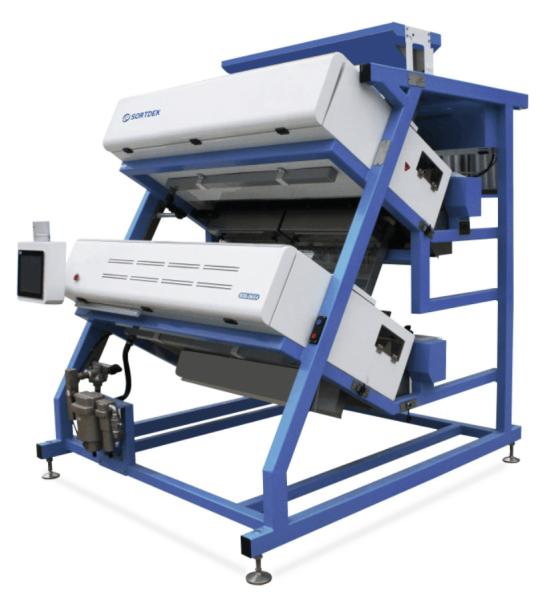

High Resolution Tea Colour Sorter Machine Two Layer Remote Control With IR Cameras

Quick Detail:

Description:

(1) LED: Germany OSRAM;high brightness, life-time up to 100,000 hours, and equipped with intelligent control dimming technology;

(2) Sensor: Japanese TOSHIBA ;Industrial color CCD of 160 million pixels, line frequency ≥ 10K, the minimum area of different colors can be up to 0.0004 square millimeters;

(3) Lens: Japanese NIKON, optical industry customized lens, with 150 line pairs of ultra-high resolution, low distortion: <0.2%, low color difference: <0.1 pixel, better imaging performance;

(4) Processor: ALTERA programmable logic device processor: data processing speed>5500k bits; data transmission speed> 210mhz; the system data acquisition and processing speed >3.125 Gbps, is extremely high;

(5) Solenoid valve: customized solenoid valve for color sorter; All imported alloy materials, MATRIX technology introduced in Italy, shutdown time: <0.05ms, life: >10 billion times;

(6) Operation interface: 12-inch HD industrial computer, Intel CPU, Windows operating system, 24-bit true color display, more realistic image display;

(7) Intelligent operation interface, visual analysis of images, one-click analysis of the proportion of impurities to be removed and transfer of sorting parameters, easier operation;

(8) Support remote control for mobile phone apps and monitoring equipment operation, convenient and fast;

(9) Support Internet remote control, system upgrade function, HD image acquisition, visual system adaptive correction technology, self-learning statistical analysis technology, and one-key automatic parameter adjustment technology；

(10) IR cameras are optional to be added.

Applications:

For sorting variety black tea and green tea raw material.

Specifications:
