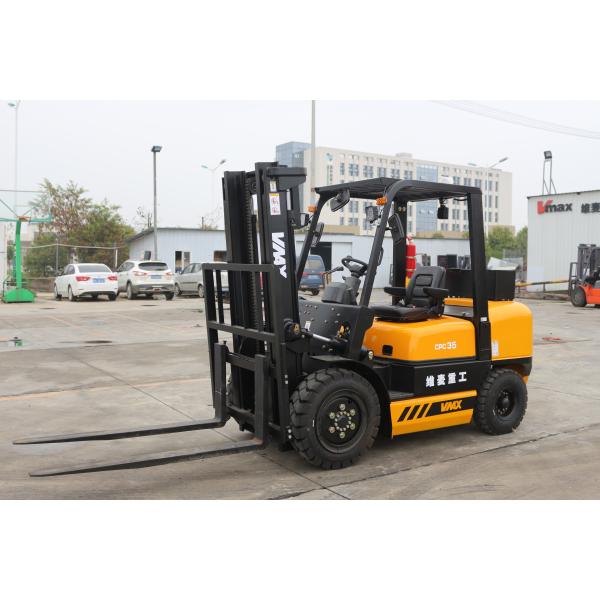

Diesel Power Material Handling Equipment Forklift CPC35 With Fork Size 1070*125*50
Diesel Power Material Handling Equipment Forklift CPC35 With Fork Size 1070*125*50
Diesel Power Material Handling Equipment Forklift CPC35 With Fork Size 1070*125*50
Diesel Power Material Handling Equipment Forklift CPC35 With Fork Size 1070*125*50
Specifications
Brand Name :
VMAX
Model Number :
CPC35
Certification :
CE, BV,SGS,ISO9001
Place of Origin :
CN
MOQ :
1 unit
Price :
＄7,930.00-＄11,500.00/unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5,000 units/year
Delivery Time :
25-30 days
Packaging Details :
nude package
Condition :
new
Power souce :
diesel engine
Fork length :
1070mm
Fork width :
125mm
Transmission :
manual
Overall dimensions :
2693*2090*1225mm
Max. lifting height :
6000mm
Color :
optional
Warranty :
1 year or 2000 hours
Engine :
Mitsubishi S4S, Xinchang A498, Xinchang A495, Xinchang C490, Isuzu C240, Dachai CA498, Yanmar 4TNE98
Load center :
500mm
Loading capacity :
3500kgs
Description

material handling equipment forklift CPC35 diesel power with fork size 1070*125*5​0:

SPECIFICATIONS of VMAX Diesel Forklift
Manufacturer's Data and Desigh Characteristics
Specifications
1 Manufacturer
2 Model Unit CPC35
3 Power type DIESEL
4 Rated capacity kg 3500
5 Load center mm 500
6 Operator type
Size
7 Max. lift height of mast with Load-backrest mm 4262
8 Max.lift height of fork mm 3000
9 Height of mast mm 2180
10 Free lift height(with backrest) mm 170
11 Height of Load-backrest mm 1235
12 Distance from seat to overhead guard mm
13 overhead guard height mm 2090
14 Length without fork mm 2693
15 Front overhang mm 498
16 Rear overhang mm 495
17 Wheel base mm 1700
18 The height of traction pin mm 310
19 Min. ground clearance mm 135
20 Overall width mm 1225
21 The distance between forks mm 1060/250
22 Tread(front /rear) mm 1000/970
23 Min. Turning radius(outside) mm 2420
24 Min. Turning radius(inside) mm 200
25 Min. Intersecting aisle mm 2400
26 Mast tilt angle deg
27 Fork size mm 1070*125*50
Performance
28
Speeds		 Max.Drive speeds(with/without full load) km/h 19/19
29 Lifting speeds (with /without full load) mm/s 330/370
30 Lowering speeds(with /without full load) mm/s 350/400
31 Max. tractive force(with /without full load) KN 20/16.3
32 Max.grade ability (with/without full load) % 15/20,16.5/20
Weight
33 Total weight kg 4700
34 Weight Distribution full load (front/ rear) kg 7380/820
35 Weight Distribution zero load(front / rear) kg 1880/2820
Wheels and Tyres
36 Quantity of wheels
37 Type of tyres
38 Tires Front 28x9-15-12PR
39 Rear 6.50-10-10PR
40 Driving Brake
41 Parking Brake
Control device for driving and transmitting
42 Battery V/AH
43 Engine (standard) Model XINCHAI 495
44 Rated output kw/rpm 42/2650
45 Rated torque N.m/rpm 174/1800-1900
46 No.of cylinder 4-95X105
47 Displacement L 2.98
48 Fuel tank capacity L 60
49 Number of speeds for transmission Power pallet transmission/Power shift transmission



About us:

Anhui VMAX Heavy Industry Co.,Ltd is the subsidiary of Hengtian Group, and is responsible for the import and export business of VMAX the sales channels and marketing network management, and providing forklifts, spare parts, and after-service to overseas.
Anhui VMAX Heavy Industry Co.,Ltd is a major enterprise in the forklift truck manufacturing industry in China.VMAX has a complete product range of material handling equipment, from 1-16t internal combustion counterbalance forklift, 1-5t electric counterbalance forklift truck, warehouse equipment, reach stacker and more. Utilizing our state-of-art R&D center, our provincial level technology center, efficient production support system and our strong marketing leading system, more 40 abroad agents, all these offers strong support to our customers.
