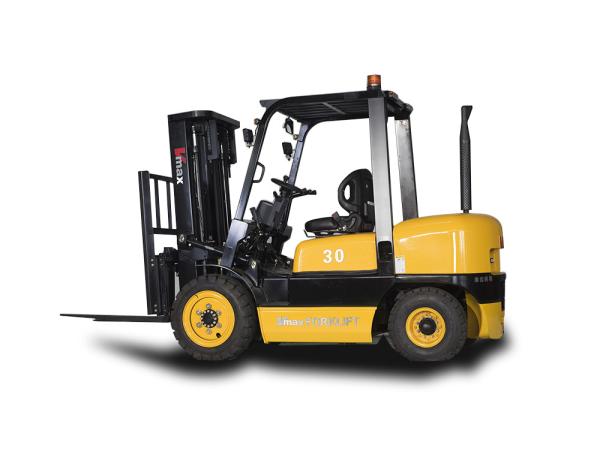

Professional 3T Diesel Engine Forklift Truck With Isuzu C240 Engine Customized
Professional 3T Diesel Engine Forklift Truck With Isuzu C240 Engine Customized
Specifications
Brand Name :
VMAX
Model Number :
CPCD30
Certification :
ISO,CE,SGS
Place of Origin :
ANHUI,CHINA
MOQ :
1UNIT
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000unit / year
Delivery Time :
45 DAYS
Packaging Details :
bubble wrap
product name :
counterbalance forklift truck
Max. Lifting Height :
6000mm
Min. Lifting Height :
3000mm
Type :
diesel forklift indoors
Color :
customized
Rated Loading Capacity :
3000kg
Description

Specifications

* Load capacity 3000kg with Isuzu c240 engine.
* 3M lift height,1.07m fork,solid tyres.
* Automatic,12months warranty.
* Brandnew

3T COUNTER BALANCE DIESEL FORKLIFT TRUCK SPECIFICATION
Model Unit CPC30/CPCD30
Power type Diesel
Rated capacity kg 3000
Load center mm 500
Mast Lifting height mm 3000
Free lift height mm 175
Fork size(L*W*T) mm 1070×125×45
Tilting Angles(Front/Rear) deg 6°/12°
Front overhang mm 485


Exterior Size		 Length without fork mm 2680
Overall width mm 1225
Mast drop mm 2065
Max.lift mm 4250
Front-wheel Overhead mm 2070
Min Turning Radius mm 2420
Min.intersecting aisle mm 2100


Speeds		 Max Driving speeds km/h 18.5/20
Lifting speeds mm/s 470/520
Lowering speeds mm/s 550/520
Max.grade ability % 20
Total weight kg 4300

Tires		 Front 28*9-15-12PR
Rear 6.5-10-10PR
Wheelbase mm 1700

Tread		 Front mm 1000
Rear mm 970
Min.ground clearance mm 110


Engine		 Model XINCHANG490BPG
Rated output kw/rpm 37/2650
Rated torque N.m/rpm 148/1800
No.of cylinder 4
Displacement L 2.54
Fuel tank capacity L 52

Here are the details of standard configurations:

Diesel forklift truck with 3,000kg load capacity

Model Number: CPCD30

Equipped with China engine C490BPG,Hydraulic transmission with TCM-technology

Standard with 2-stage wide-view mast, lifting height is 3,000mm

Pneumatic tires, 1070mm forks,Safety seat,Free tool box and spare parts.

Back-up buzze, rearview mirror, full set of lights and so on.

Our Services

As a professional manufacturer of forklift, we also can offer you customized service,
The following items are optional:
Container mast, for example, 2-stage full free mast of 3m, 3-stage full free mast of 4.5m/ 4.8m
Side shifter, fork positioner, longer forks, fork extension
For the details of customized configurations and options, please contact with us.
VMAX professional service will be impressed on you.
