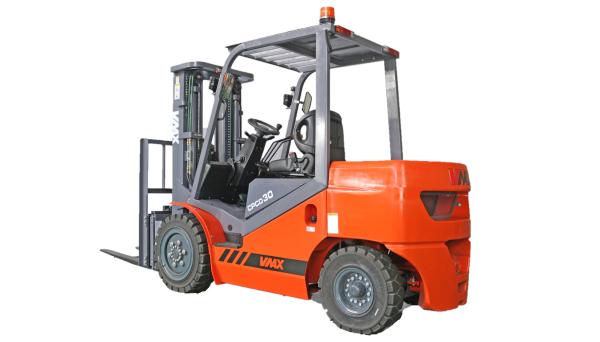

4t 3t Toyota Diesel Powered Forklift , Taylor Stand Up Reach Forklift Customized
4t 3t Toyota Diesel Powered Forklift , Taylor Stand Up Reach Forklift Customized
Specifications
Model Number :
CPCD40
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Place of Origin :
ANHUI,CHINA
Brand Name :
VMAX
MOQ :
1UNIT
Price :
Negotiable
Packaging Details :
bubble wrap
Delivery Time :
45 DAYS
Supply Ability :
3000unit / year
color :
red
engine :
isuzu
name :
heavy duty forklift
type :
Material Handling Forklift
Rated Loading Capacity :
4000kg
Power Souce :
Diesel Engine
Description

taylor forklift stand up forklift 4 ton forklift toyota 3t forklift

Material Handling Forklift Quick Details

Type:Powered Pallet Truck

Power Souce:Diesel Engine

Rated Loading Capacity:4000kg

Max. Lifting Height:6000mm

Min. Lifting Height:3000mm

Fork Length:1070mm

Fork Width:130mm

Overall Dimensions:2885*1480*2105mm

Certification:CE ISO TUV GS SGS

After-sales Service Provided:Engineers available to service machinery overseas

color:As per for you

load center:500mm

engine:C498BPG

Color:As per for you

Material Handling Forklift specification:

model CPCD40-X8
Power type diesel
Rated capacity kg 4000
Load center mm 500
Mast Lifting height mm 3000
Fork size Length*Width*Thickness mm 1070x150x50
Tilting angles Front/Rear . 6/12
Min. Turning Radius mm 2700
Min. intersecting stacking aisle mm 4420
Min. intersecting aisle mm 2685
Min. ground clearance mm 140
Overhead guard height mm 2105
Front overhang mm 500
Max. driving speeds km/h 19.5
Max. lifting speeds mm/s 400
Max. grade ability % 20
Length without fork mm 2895
Overall width mm 1410
Max. lift mm 4160
Mast height mm 2127
Tires Front mm 250-15-16PR
Rear mm 6.5-10-10PR
Wheelbase mm 1900
Tread Front/ Rear mm 1160/1065
Self-possessed Kg 5310
Battery Voltage/Volume V/Ah 12/105
Engine Model 498BPG
Rated output kw/r.p.m 45/2500
Rated torque Nm/r.p.m 198/1800
No.of cylinder 4
Displacement L 3.168
Fuel tank capacity L 80

Company Information

Anhui VMAX Machinery Manufacturing Co., Ltd. Is located in Lu'an, Anhui, China. We are one of the biggest forklift manufacturers in China, which has 67, 000 square meter area workshop and outputs 5, 000 sets forklifts annually. We have different kinds of large blazing cutter, plasma cutter, large punch machine, CNC machining center, large painting machine and other high-class machines and testing equipment, which ensure perfect quality of each forklift from VMAX. Now our products include counterbalance diesel for klift, battery forklift, gas/LPG forklift, pallet truck, stacker, reach truck, mast mobile container crane, etc. With firstclass technology and stable quality, VMAX products won the appreciation form majority of overseas customers. Our products have been exported to Europe, America, the Middle East, Southeast Asia, Africa and many other countries and regions. More than 400 VMAX members offer you products with top-class service. We sincerely welcome you to visit.
