Near Infrared Optical Sorter

Product Description

Near Infrared Optical Sorter offer industry leading accuracy and precision to help you improve product quality and maximize product output.

The system features a high quality reject system and premium NIR wide spectrum illumination system. The NIR Colour Sorter is available in a variety of configurations ranging from a single chute to a 12 chute model to meet your processing demands.

Product Specifications

1. Real output depends on material and its contamination.

2. If products update, no further notice. Please refer to the real machine.

Structure Schematic

Advantages

A. wide range of application

In addition to realize colour sorting by visible color spectrum system, also can realize the sorting of infrared sensitive material by using near infrared optical system.

• Combine shape sorting function

According to the characteristic of material, using special image processing algorithm with shape and color, to realize shape sorting successfully by detecting material's Circularity rate, linear rate, Perimeter and area, etc.

• Transmission-type color tunable background lamp

Use transmission-type background board instead of traditional reflection-type background board, simplified the system, improved the stability. Use RGB color tunable background lamp instead of RGB reflection board, in addition to get red, green, blue color, also can get multi colors by the mixing of RGB lights.widely expanded the colors of background.

Example of Sorting

Features

* Flexible Configuration & Variable Light Source

The NIR colour sorter has a colour LED illumination system and NIR wide spectrum illumination system. The Color LED illumination system can choose use different spectrum for the illumination to increase the contrast and increase the precision of information acquisition. The LED illumination system has an efficient cooling system, enhancing system lifetime, low energy consumption and high performance. The NIR wide spectrum illumination system uses a German imported light source. The light source also has uniform illumination, high brightness, low energy consumption and stable property.

* Dedicated Image Processing Algorithm

Raw product can be analyzed based on shape and colour. For materials with complex colours, the machine sorts materials more directly and accurately by using HSV-changed colour space sorting method.

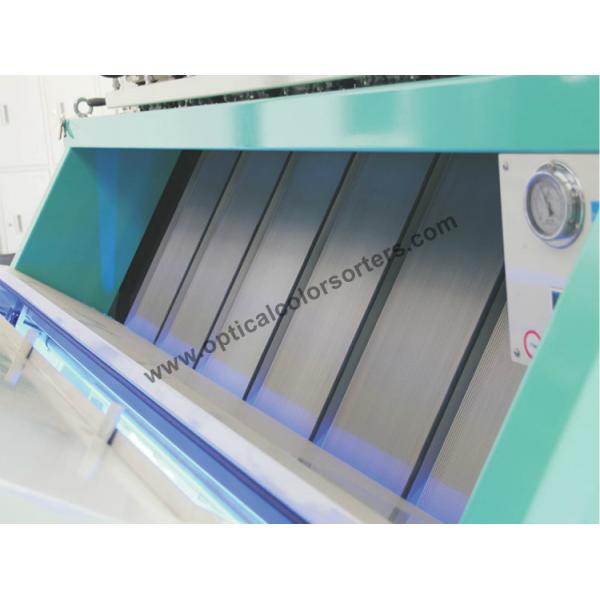

* Unique Trough Configuration

The special anodising technology complies with international standards. The system can be equipped with cascade plate and narrow chute channel to meet the colour sorting for various materials.

* High Quality Solenoid Valve

The high frequency ejector has a long service life and has very low air consumption, providing the highest capacity rejection output.The system is available with different sizes of solenoid valves according to the raw product being sorted.

* Excellent Rejection Rate

The advanced image acquisition system features intelligent processing algorithms, a high quality nozzle system and excellent elimination rate.

* Simple Easy to Use Touchscreen Interface

The graphical interface is easy to use and learn for both technicians and line operators.

Analyzing Ability of NIR Sorting Machine

Shape Sorting
