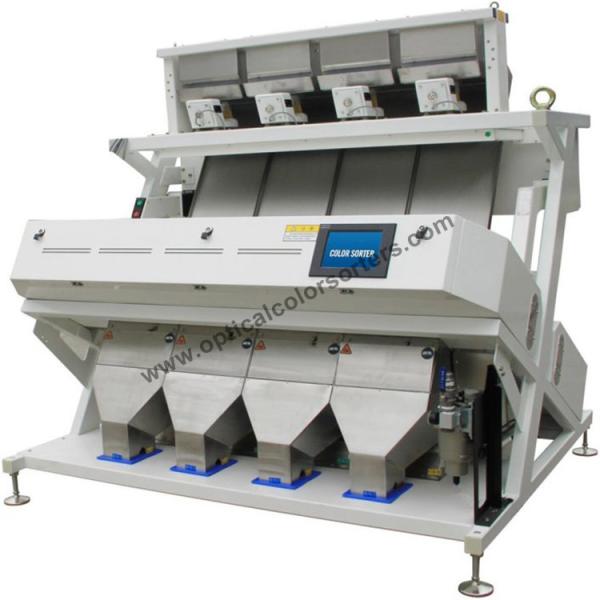

Smart Optical Sorting Machine With High Definition CCD Image Acquisition System
Smart Optical Sorting Machine With High Definition CCD Image Acquisition System
Smart Optical Sorting Machine With High Definition CCD Image Acquisition System
Smart Optical Sorting Machine With High Definition CCD Image Acquisition System
Smart Optical Sorting Machine With High Definition CCD Image Acquisition System
Smart Optical Sorting Machine With High Definition CCD Image Acquisition System
Smart Optical Sorting Machine With High Definition CCD Image Acquisition System
Smart Optical Sorting Machine With High Definition CCD Image Acquisition System
Smart Optical Sorting Machine With High Definition CCD Image Acquisition System
Smart Optical Sorting Machine With High Definition CCD Image Acquisition System
Smart Optical Sorting Machine With High Definition CCD Image Acquisition System
Smart Optical Sorting Machine With High Definition CCD Image Acquisition System
Specifications
Brand Name :
BANGHAO
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
3,000 sets per year
Delivery Time :
15 days after we receive your deposit
Packaging Details :
Wooden Boxes, Vacuum Aluminum Packing
Product name :
Chute Color Sorting Machine
Accuracy :
more than 99.99%
After-sales service provided :
Engineers available to service machinery overseas,Free spare parts,Online support,Overseas service center available,Video technical support
Voltage :
220V 50HZ,220v/50hz,220v/110v,380V,24V
Warranty :
1 Year
Sorting accuracy :
≥99.9
Description

Channel Optical Color Sorter

Channel Optical Color Sorter Features

1. The introduction of LED air cooling.

2. The unique suction ventilation system.

3. Full-color high-definition CCD camera image acquisition system.

4. Intelligent operating platform, easy to operate, easy to master, the real man-machine dialogue, intelligent docking, sit back and relax.

5. International high-end full-color line scan technology.

Technology Data

Model RCSK2 RCSK3 RCSK4 RCSK5 RCSK6 RCSK7
Output(t/h) 2-5 4-7.5 6-10 7-12.5 8-13 10-15
Carryover (bad:good) >8:1 >8:1 >8:1 >8:1 >8:1 >8:1
Accuary(%) >99% >99% >99% >99% >99% >99%
Power(V/Hz) 220/50 220/50 220/50 220/50 220/50 220/50
Power(Kw) 0.8-1.5 1-2.0 1-3.0 1.5-3.5 1.5-4.0 2-4.5
Air pressure(Mpa) 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8
Consumption(L/min) ＜960 ＜1440 ＜1920 ＜2400 ＜2880 ＜3360
Weight(Kg) 500 700 850 950 1100 1400
Dimensions(mm) 1250*1607*1953 1875*1607*1953 1920*1607*1953 2260*1607*1953 2596*1607*1953 2934*1607*1953

Recommended Applications

* Rice

* Wheat

* Peanuts

* Seeds

* Grains

* Beans and Pulses
