Specifications
Brand Name :
BANGHAO
Model Number :
BCSD1280 Belt-type Color Sorter
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
3,000 sets per year
Delivery Time :
15 days after we receive your deposit
Packaging Details :
Wooden Boxes, Vacuum Aluminum Packing
Accuracy :
more than 99.99%
After-sales service provided :
Engineers available to service machinery overseas,Free spare parts,Online support,Overseas service center available,Video technical support
Voltage :
220V 50HZ,220v/50hz,220v/110v,380V,24V
Warranty :
1 Year
Sorting accuracy :
≥99.9
Product name :
Optical Salt Color Sorting Machine Super titanium steel salt color sorter
Type :
Salt Processing Machine
Air pressure :
0.6-0.8MPa
Description

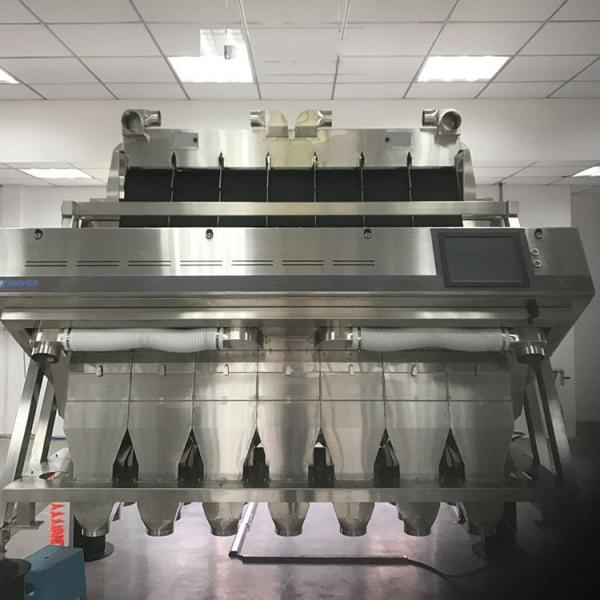

Optical Salt Color Sorting Machine Super titanium steel salt color sorter

Our super titanium steel salt color sorter machine is widely used for sort sea salt, mountain salt, table salt, industrial salt, large particles of salt, powdered salt etc.


Technical Parameters

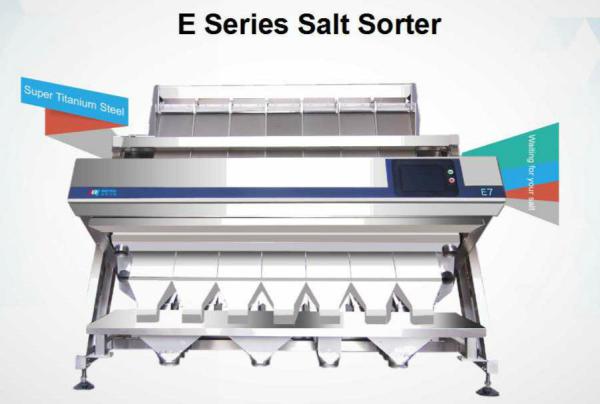

Model E7 Series Salt Color Sorter
Capacities (t/h) 3-12
Channels 420
Voltage (V) 180-240(50Hz)
Power of Main Machine ( KW ) 3.5
Air Pressure (MPa) 0.6-0.8
Suggested Working Temperature (°C) 5-35
Dimension (LxWxH) (mm) 2625*1755*2298
Net Weight (kg) 1570


Examples of Sorting

Product Advantages


316L Full titanium steel machine body
For solving the problem of salt corrosion.it uses?316L full titanium steel as the machine body,which?has a powerful pitting corrosion resistance and?greatly extend the life of the machine

Super brain technology
According to the characteristic of salt, it uses intelligent localization algorithm for achieving accurate reject and improving output

True color micro camera
Using custom ultra-clear real color CCD? Sensor technology, with HD& low distortion industrial? tens, micro level identification can bring 99.9% ultra-high solution

Magnetically levitated ejector
According to the characteristic of salt, this machine uses unique magnetically levitated ejector technology, which completely match the lifetime of the machine

Real time big data system
Achieving one-key intelligent operation.remote?operation.diagnosis,warranty.online training and a lot of value-added business news sending

Why Choose Our Salt Color Sorter?
1. Over 10 years experiences focus on color sorter. We are one of the biggest sorter machine factory in China. We have the strength give better service and price to you.
2. Overseas Service Station: We have service station, cooperate reseller more than 40 countries. We can meet your requirements on testing, installation and after sales service.
3. OEM/ODM is Supported: We have a strong R&G team(5 famous doctor engineers are included ). We can research and development suitable color sorter for you.
4. Quality Process Assurance: We pass CE, ROHS and ISO quality management system, each process of production are under strictly standard.
5. Shipping Guarantee: We have professional packaging operations team, independent export qualification to ensure product safety and stability to reach customers in the hands.
6. After-sales Service Guarantee: We provide one year warranty and lifetime maintenance. Free home repair during the warranty period (except for human factors or irresistible natural phenomena caused by failure or damage)
7. Sales team: Our professional sales team is fluent in English, Russian, Chinese , Spanish and Japanese. Can communicate better with customers.

Color Sorter Problems Solutions

The equipment involves an automatic fault detection and alarm function, and the fault parts will be indicated

by an indicator light or shown by a color display. Users can usually solve the problem by themselves.

Faults Causes Solutions
Air leakage of solenoid valves Foreign matters found in valves Blow air into the valve in a reverse direction for repeatedly test
Wear of valve components Replace worn parts
Solenoid valves fail to work Poor contact of valve wires Re-plug or repair poor contact parts to enable good contact
Damaged control circuit boards Replace control circuit control boards
An inadequate amount of air injection for solenoid valves Solenoid valves are not switched to the assigned location Re-adjust or replace solenoid valves
Air pressure is too low

Check the pressure gauge and corresponding air piping

Rice leaps on rice channels The water content in rice is excessively high Dry the rice for re-sorting
Ashes on rice channels cake Clean the rice channel with a piece of soft cloth
Scratches occur on rice channels Replace rice channels with new ones
Frequent action of color sorting indicator lights and electromagnetic valves (fluorescent lamps) Fluorescent lights are burn out Replace fluorescent lamps with new ones
Color sorting modes are not set correctly Set color sorting modes correctly
Damaged power supplies for fluorescent lamps Replace power supplies
Background plates get stuck Restore stuck boards
Rice sorting waves are not correctly set Re-adjust background plates
Fluorescent lamps are not lightened Re-lighten fluorescent lamps
Circuit fault reminders appear Circuit fault Please contact us
Poor rice sorting results on channels at both sides Fluorescent lamps are black at both ends Replace fluorescent
The equipment don’t work at all Sensitivity is too low Adjust sensitivity
Background plates are improperly adjusted

Adjust background plates

Sorted grains are increasingly inferior ones during a certain period Dust accumulates on glass plates in the sorting chamber Wipe off dust with a clean piece of cloth
Parameters of sensitivity and background plates change Re-set parameters
Rice channels are unheated Check the heating system
Dust wipers are damaged and aged Replace dust wipers
Poor sorting results on a single side of the system Poor cleaning results due to inappropriate action of rod less cylinders Adjust the wiping speed of dust wipers
Color Sorters often shut down Excessively high sensitivity; re-adjust the sensitivity Background plates (or wave forms) are not adjusted properly
Re-adjust Background plates Excessively high content of yellow grains
Reduce output Inadequate air supply pressure
Check the air pressure and air passage to find out they are proper; re-adjust the air passage Protection of air pressure often occurs
Try to make pipes unblocked clean or replace relative filter elements
