Specifications
Brand Name :
BANGHAO
Certification :
ISO9001, ISO CE, BV
Place of Origin :
China
MOQ :
1ses
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
3000 sets per year
Delivery Time :
15 day after we receive your deposit
Packaging Details :
3000 sets per year
Product name :
Rice Color Sorter
Type :
Grain Processing Equipment, Single rice mill, Food Processing Machinery, grain processing machine
Voltage :
220V 50HZ, 380V, 220V/380V, 220v/50hz, customized
Application :
Rice processing, sorting, wheat, grain cleaning and separating
Function :
color sorter, rice milling
Usage :
Food Industry , Rice Sorting, Rice milling
Condition :
New
Color :
As photos or customized
Sorting accuracy(%) :
≥99.99
Warranty :
One year
After-sales service provided :
Engineers available to service machinery overseas, Field installation, commissioning and training, Overseas service center available, Field maintenance and repair service
Description

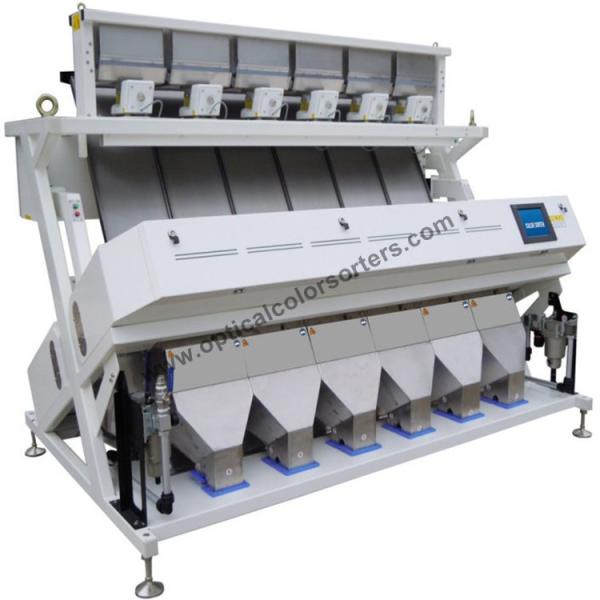

CCD Rice Color Sorter Machine​

Product Description

We are a leading global supplier of optical sorting solutions to the food and non-food processing industries and has been at the forefront of optical sorting technology for over 10 years. We keep on offering our customers a choice of precision-engineered innovative optical sorting equipment to meet today’s exacting optical sorting applications.

Should any interested in our CCD rice color sorter machine,please feel free to contact with us and prompt reply will be within 6 hours for service.

Technical Parameters

Model RCSK6 CCD Rice Color Sorter Machine
Output(t/h) 4-12
Carryover (bad: good) 15:1
Accuracy (%) 99.99%
Voltage (V/Hz) 220/50
Power (Kw) 1.5-4.0
Air pressure (Mpa) 0.6-0.8
Consumption (L/min) <3600
Weight (Kg) 1000
Dimensions (mm) 2596*1607*1953

Example of Sorting

How CCD Rice Color Sorter Machine Can Help You?

Improving your profitability:

* Highest quality production
* Lowest product loss
* Diverse products, any contaminant
* Minimal product damage
* Low operating costs – long term warranty
* Optimum recovery rates

Enhancing your productivity:

* Minimum operator skills
* High uptime
* Quick and easy installation
* Maintenance from remote locations
* For consistency in production
* Effective in harshest environments

Product Advantages

  • Unique-in-the-industry light different color selection mode is efficient for the high-end color selection of light beige, speckled or darkened rice. The first-time output compounding rate is over 1:1, and the second-time more than 15:1. (Bad: Good) Under this mode, the signal separation of belly-white and shallow yellow would be accomplished, selecting the yellow without any white, as is a pioneering technology in the industry.

  • Under the different-color mode, color-selection requirements of all kinds of grain can be achieved. The first-time output compounding rate is over 1:1, and the second-time more than 15:1. (Bad: Good)

  • Under the belly-white mode, color selection will be further optimized. For the belly-white, the first-time output compounding rate is above 1:1; and the second-time over 25:1. For full-white or full-yellow, the first-time output compounding rate is also above 1:1; and the second-time more than 30:1. With easy mode-shift function, unique 3-color convertible background board, all modes are free to shift in betweens by changing the automatic light sources, except for the reversed-selection mode which requires special light source.

  • Newly-optimized operating interface is quite user-friendly. The “one-button auto” and “project back-up” functions help to reset the original parameters when misconduct happens.

  • Newly-designed mechanical structure provides favorable stability and applicability. There are two output mode, the large-chute mode and separated small-chute mode. Each mode is equipped with reinforced chutes that greatly reduce the output compounding rate. Large chute is convenient for installation, while small chute allows the user to change into “3-time color selection” model according to customer requirements.

  • Innovative smart LED shadowless cold light system design can efficiently find out small spots, light yellow,belly-white,core-white,black pin-points, which makes identification and judgment much easier, sorting more accurate. The light source has long service life, high luminous efficiency and strong anti-interference stability, and no warm-up is needed.

  • Unique direct-spray nozzle has greatly eliminated the huffing resistance, reduced the air consumption, accelerated the response speed and made the operation more accurate and effective whist diminishing the output compounding rate.

  • International cutting-edge industry special 5088 full-color high-speed line scan imaging sensor CCD, and special color sorting cameras tailored by top International suppliers,can precisely identity subtle spots of 0.04 mm², and meet high-end color sorting requirements of synchronous sorting and independent sorting for belly-white and core-white.

  • The rice small lesion, shallow yellow, white belly, white core, needle point such as black Leis, grain,aiming at provide more flexible separation combination scheme in the multiple modes of complex intelligent algorithm, color sorting accuracy higher, ratio of lower.

Packaging & Shipping

Machines to be carefully packaged to endure transportation under harsh conditions. Handling instructions are designed to protect the machine in the critical moments during transportation, unloading and installation.

Delivery Time: 15-20 Days after order confirmed.

Payment Terms: TT, Letter of Credit.

Commissioning and Installation:

1. On Site Installation and Training Service by our professional engineer;

2. Study and Learn the Machine Operation in Our Factory;

3. Responsive in 24 hours: Telephone, Email, Video or On Site Solutions by our Technical Experts.
