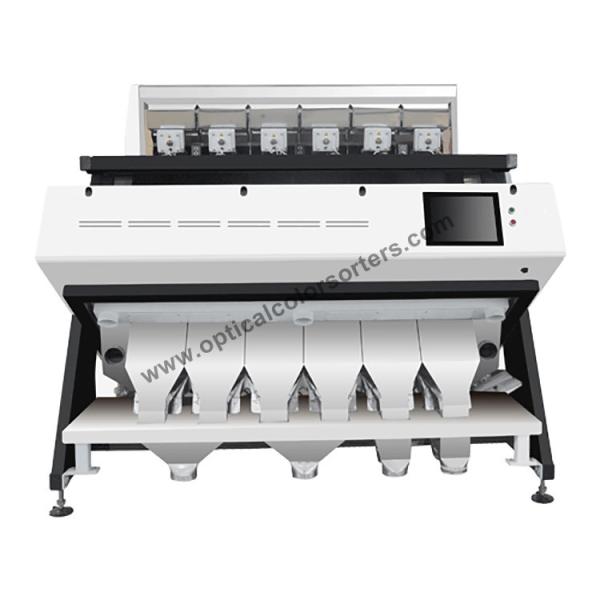

One Key Automatic Plastic Color Sorter Machine With Soft Landing System
One Key Automatic Plastic Color Sorter Machine With Soft Landing System
One Key Automatic Plastic Color Sorter Machine With Soft Landing System
One Key Automatic Plastic Color Sorter Machine With Soft Landing System
One Key Automatic Plastic Color Sorter Machine With Soft Landing System
One Key Automatic Plastic Color Sorter Machine With Soft Landing System
One Key Automatic Plastic Color Sorter Machine With Soft Landing System
One Key Automatic Plastic Color Sorter Machine With Soft Landing System
Specifications
Brand Name :
BANGHAO
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
3,000 sets per year
Delivery Time :
15 days after we receive your deposit
Packaging Details :
Wooden Boxes, Vacuum Aluminum Packing
Product name :
Plastics Color Sorter
Accuracy :
more than 99.99%
Type :
industry color sorter,optical plastic sorter,BCSD Plastic Color Sorter
Voltage :
220V 50HZ,220v/50hz,220v/110v,380V,24V
Warranty :
1 Year
Application :
plastics
Sorting accuracy(%) :
≥99
Usage :
plastic color sorting
After-sales service provided :
Engineers available to service machinery overseas,Free spare parts,Online support,Overseas service center available,Video technical support
Description

Plastic Color Sorting Machine

Product Description

CCD Optical plastic color sorting machine is suitable for all kinds of plastics, recycled plastics separation, also can be used to choose the white, yellow, black, red, green, blue and other colors of color selection. Can also apply to the PC, ABS, PA, PS, PET and PP separation of particles or material, etc.

Our color sorter machinery limited manufacture plastic color sorter machine for sorting all kinds of plastic by color.

Technical Parameters

Name Channels Power of Main Machine(kW) Voltage(V) Air Pressure(MPa) Air Consumption(m3/min) Dimension(LxWxH)(mm) Net Weight (kg)
CG4 240 2.6 180~240(50Hz) 0.6~0.8 ≤4.0 1765x1570x2143 1050
CG6 360 3.2 180~240(50Hz) 0.6~0.8 ≤5.5 2400x1570x2143 1450
CG8 480 3.6 180~240(50Hz) 0.6~0.8 ≤6.5 2950x1570x2143 1800
CG10 600 4.2 180~240(50Hz) 0.6~0.8 ≤8.0 3700x1570x2143 2200

Examples of Sorting

Product Advantages

Super Brain

According to the characteristics of the material matching, using professional self-learning and one-key automatic technology for achieving a "fool" operation.

True Color Micro Camera

Using CCD sensor technology, with HD & low distortion industrial lens which can scan material over 30,000 times in one second, micro level identification.

Point-point Clean System

Individually configurable cleaning system for each channel, with 3 times interval cleaning than other common color sorter machine.

High-Speed Ejector

Magnetically levitated high-speed ejector can completely match the whole machine, with a long using life by using Meyer unique technology.

Stepless Dimming

Complementary Stepless Dimming According to the environmental change of sorting material and automatically adjusting the brightness output with adaptive technology.

Soft Landing System

According to the design of system dynamics ensuring the soft load for material, reducing the probability of a rebound, fragmentation & loss of materials.

Working Principle

1. Raw Material are put into the machine from its feeding hopper on the top.

2. Vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate .

3. Under the effect of light source, CCD sensor receives compound light from materials being sorted.

4. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.

Color Sorter Problems Solutions
