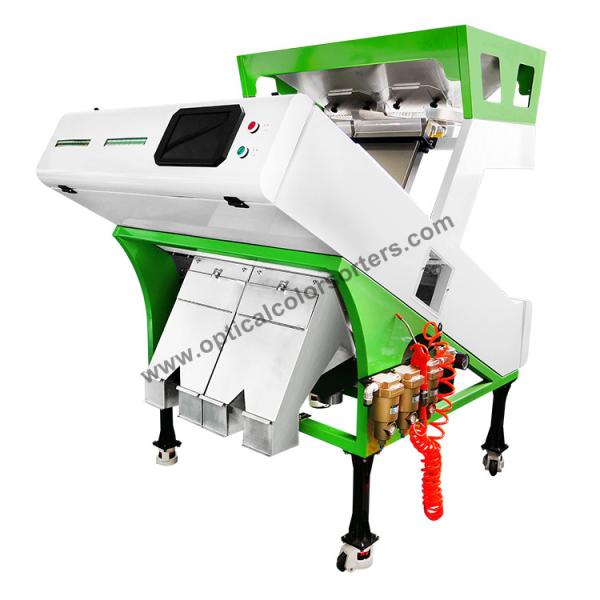

High Efficiency Optical Sorting Machine For Plastic Recycling Industry
High Efficiency Optical Sorting Machine For Plastic Recycling Industry
High Efficiency Optical Sorting Machine For Plastic Recycling Industry
High Efficiency Optical Sorting Machine For Plastic Recycling Industry
High Efficiency Optical Sorting Machine For Plastic Recycling Industry
High Efficiency Optical Sorting Machine For Plastic Recycling Industry
High Efficiency Optical Sorting Machine For Plastic Recycling Industry
High Efficiency Optical Sorting Machine For Plastic Recycling Industry
High Efficiency Optical Sorting Machine For Plastic Recycling Industry
High Efficiency Optical Sorting Machine For Plastic Recycling Industry
High Efficiency Optical Sorting Machine For Plastic Recycling Industry
High Efficiency Optical Sorting Machine For Plastic Recycling Industry
Specifications
Brand Name :
BANGHAO
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
3,000 sets per year
Delivery Time :
15 days after we receive your deposit
Packaging Details :
Wooden Boxes, Vacuum Aluminum Packing
Product name :
Plastics Color Sorter
Accuracy :
more than 99.99%
Type :
industry color sorter,optical plastic sorter,BCSD Plastic Color Sorter
Voltage :
220V 50HZ,220v/50hz,220v/110v,380V,24V
Warranty :
1 Year
Application :
plastics
Sorting accuracy(%) :
≥99
Usage :
plastic color sorting
After-sales service provided :
Engineers available to service machinery overseas,Free spare parts,Online support,Overseas service center available,Video technical support
Description

High Efficiency Optical Sorting Machine For Plastic Recycling Industry

Product Description

Manual sorting is a simple process that needs very little technology, but it leaves much room for improvement. Manual sorting is a very labor intensive, costly, and inefficient method for sorting plastics. One problem with efficiency is that the labor force involved in manual sorting has a high turnover rate.

Wuxi Bird Machinery Technology Co., Ltd has been developed plastic optical sorting machine in order to improve efficiency and quality, and reduce the cost of plastics recycling.

Technical Parameters

Model 6SXZ-68L 6SXZ-68L 6SXZ-136L 6SXZ-272L
Output <600kg/h <1000kg/h <1200kg/h <2400kg/h
Carry over Rate(Bad:Good) 12.5:1 12.5:1 12.5:1 12.5:1
Sorting Accuracy ≥99.9% ≥99.9% ≥99.9% ≥99.9%
Voltage(V/Hz) 220V 50HZ 220V 50HZ 220V 50HZ 220V 50HZ
Power Supply(Kw) 0.7-1.0 1.5-2.0 1.5-1.8 2.5-3.0
Pressure(Mpa) 0.4-0.6 0.4-0.6 0.5-0.7 0.6-0.8
Air Consumption(L/min) <500 <600 <1000 <2000
Weight 310kg 550kg 490kg 920kg
Dimension 2051*1240*1762mm 3200*2020*810mm 2037*1540*1550mm 1922*2430*1349mm

Examples of Sorting

Product Advantages

Products Show
