FTTTH 8 Core Indoor Fiber Optic Cable PVC Single Mode Fiber Patch Cord
FTTTH 8 Core Indoor Fiber Optic Cable PVC Single Mode Fiber Patch Cord
FTTTH 8 Core Indoor Fiber Optic Cable PVC Single Mode Fiber Patch Cord
FTTTH 8 Core Indoor Fiber Optic Cable PVC Single Mode Fiber Patch Cord
FTTTH 8 Core Indoor Fiber Optic Cable PVC Single Mode Fiber Patch Cord
FTTTH 8 Core Indoor Fiber Optic Cable PVC Single Mode Fiber Patch Cord
Specifications
Brand Name :
YOFC / Corning
Model Number :
single mode
Certification :
ISO,RoHS , CE
Place of Origin :
Shenzhen,China
MOQ :
1000 meters
Price :
can be negotiated
Payment Terms :
L/C, T/T, Western Union, MoneyGram,paypal
Supply Ability :
50000 m / day
Delivery Time :
2-7 working days
Packaging Details :
opp bag + carton box
Products name :
FTTTH drop cable indoor 8 core single mode fiber optic cable PVC
mode type :
single mode
cable type :
G652D
cable material :
PVC/LSZH
cable diameter :
2.2(outer/inner)
delivery time :
2-7 working days after payment done
Warranty :
1 year after delivery
payment term :
T/T , PAYPAL,WESTERN UNION ,30%deposit , balance paid before delivery
length :
can be customized
core :
8 core
Description

FTTTH drop cable indoor 8 core single mode fiber optic cable PVC

optic fiber cable have indoor and outdoor type . also have lots of type : armored cable . drop cable , pull far cable , GYXTW ,etc

Also , the cable diameter from 0.9/2.0/3.0/3.6/4.8/7mm and core quantity : simplex , duplex ,4 core ,6 core ,8 core ,12core ,24 core ,48 core ,etc , it can be customized accroding to your requirements .

Product Description

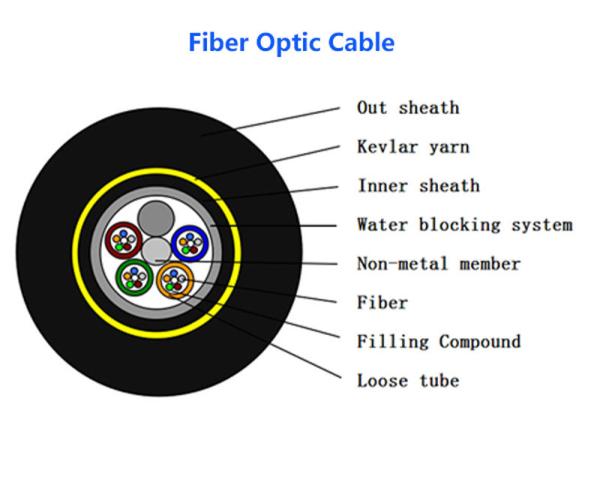

Cable construction details

Number of fiber 8core
Loose tube material PBT
diameter 2.2(outer/inner)
Tube-filling Tube filling compoun
Steel wire size 0.8mm
Number 2
Outer sheath material PE,HDPE,LDPE
diameter 1.8±0.2mm

Cable Mechanical characteristic

core Cable diameter weight
1~8 8.0mm+-0.3mm 65kg/km+-10kg
Temperature range -40+70(℃) -----
Min Bending Radius(mm) Long term 10D
Min Bending
Radius(mm)		 Short term 20D
Min allowable
Tensile Strength(N)		 Long term 1200
Min allowable
Tensile Strength(N)		 Short term 1500
Operation temperature -40+70(℃)
Installation temperature -20+60(℃)
Storage temprature
 -40+70(℃)

Fiber type Single mode:
(1)9/125-G652D
(2)9/125-G655
(3)9/125-G657A1,G657A2,G657B2,G657B3

Multimode:
(4)50/125-OM2
(5)62.5/125-OM1
(6)50/125-OM3
(7)50/125-OM4

(8)50/125-OM5
Fiber brand YOFC, Corning, OFS...
Connector type SC, LC, FC, ST, E2K, MU, MTRJ, MPO/MTP, SMA, DIN

Cord type Simplex ,Duplex, 4cores, 6cores, 12cores, 24cores...
Cable diameter 0.9mm, 2.0mm, 3.0mm....
Cable jacket PVC, LSZH, OFNR, OFNP
Length(M)

0.3m,1m,2m,5m,10m,25m,50m,100m ( can be customized )
