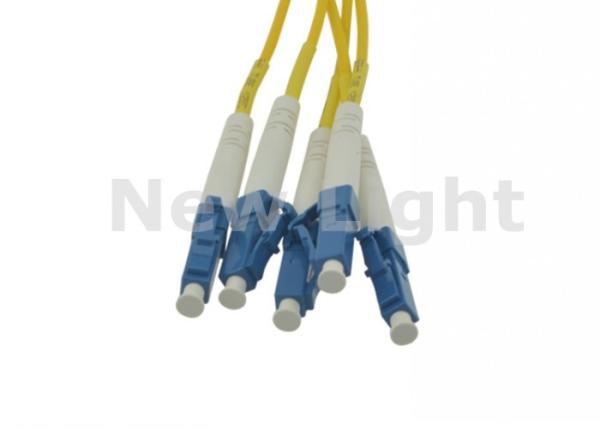

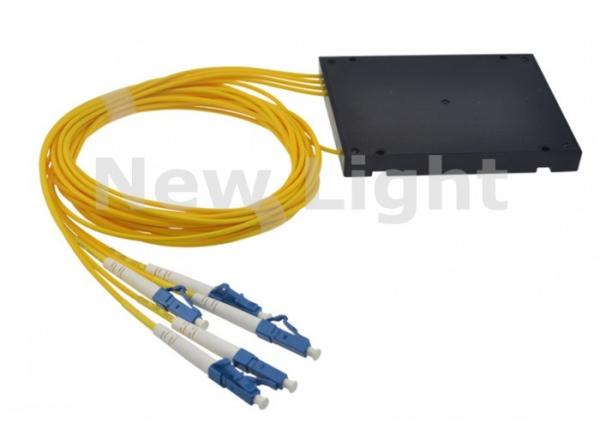

FTTH ABS Fiber Optic Splitter / 1x4 PLC Splitter Single Mode With LC UPC Connector
FTTH ABS Fiber Optic Splitter / 1x4 PLC Splitter Single Mode With LC UPC Connector
FTTH ABS Fiber Optic Splitter / 1x4 PLC Splitter Single Mode With LC UPC Connector
FTTH ABS Fiber Optic Splitter / 1x4 PLC Splitter Single Mode With LC UPC Connector
Specifications
Brand Name :
New Light
Certification :
CE
Place of Origin :
China
MOQ :
100
Price :
Negotiate
Payment Terms :
Western Union, T/T, MoneyGram
Supply Ability :
10000/month
Packaging Details :
1 set per pack
Color :
Yellow cable ,Blue connector
Connector type :
LC
Polish :
UPC
Cable diameter :
2.0mm
Mode :
Single mode
OEM :
Available
Description

LC UPC 1x4 PLC Fiber optical splitter single mode with LC UPC connector FTTH ABS optic splitter box

Application:

Fiber Optic CATV; Fiber to home (FTTH); Passive Optical Networks; Fiber communication systems;

Local Areal Networks (LAN)

Specification:

Parameters 1x4 1x8 1x16 1x32 1x64
Operating Wavelength(nm) 1260-1650
Insertion Loss (dB) Max(S/P) 7.4/7.2 10.7/10.5 13.7/13.5 16.9/16.5 21
Loss Uniformity (dB) Max 0.6 0.8 1.2 1.7 2.5
Return Loss (dB) Min(S/P) 50/55 50/55 50/55 50/55 50
PDL (dB) Max 0.2 0.3 0.3 0.3 0.4
Directivity (dB) Min 55 55 55 55 55
Pigtail Length(m) 1.2(±0.1) or customer specified
Fiber Type SMF -28e or customer specified
Wavelength Dependent Loss(dB) 1 1 1 1 1
Temperature Stability 0.6 0.6 0.8 1 1
(-40~85 ℃)(dB)
Operating Temperature( ℃) -20~75
Storage Temperature( ℃) -40~85
Packaging Size(L x W x H)(mm) 40x4x4 40x4x4 40x4x4 50x7x4

60x12x4

FTTH ABS Fiber Optic Splitter / 1x4 PLC Splitter Single Mode With LC UPC Connector
