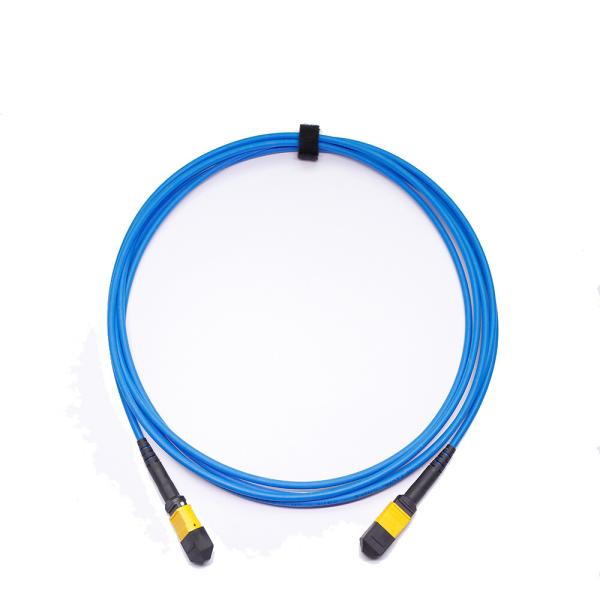

Low insertion loss 24 core MTP Mpo armored LSZH Material Fiber Optic Patch Cord 3meters

The MPO MTP connectors have standard insertion loss and low insertion loss . There is a little different between two types .

first of all , the color of the connector of low insertion loss is yellow color , and standard insertion loss of single mode is green color . If you order the low insertion loss MPO MTP , the color of connector will be yellow .

second , the insertion loss of low insertion loss MPO MTP can be less than 0.35dB , but the insertion loss of standard MPO MTP is less than 0.75dB .

at last , the price of low insertion loss and standard insertion loss connector is different .

Assembly is built using 24xfibres ferrule interface MPO/MTP® connectors which can be used directly with CFP/CXP 100G

transceivers or when used together with Transition Modules/ Cables can provide 100G compatible infrastructure for 40G QSFP+ transceivers.

MPO/MTP® 24xFibres Ferrule Cable Assembly can be used with 24xfibres ferrules MPO/MTP® to LC

module providing 40/100G compatible infrastructure for legacy non-parallel optics 4/8/10/16G Ethernet/ Fiber

Channels protocols networks.

Type B

Technical Parameter

more connector you can choose

How to order

1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
