1U 19 Rack Mount Fiber Optic WDM Dual Fiber LC/UPC Connector 1270nm-1610nm 18CH
1U 19 Rack Mount Fiber Optic WDM Dual Fiber LC/UPC Connector 1270nm-1610nm 18CH
1U 19 Rack Mount Fiber Optic WDM Dual Fiber LC/UPC Connector 1270nm-1610nm 18CH
1U 19 Rack Mount Fiber Optic WDM Dual Fiber LC/UPC Connector 1270nm-1610nm 18CH
Specifications
Brand Name :
New Light
Model Number :
CWDM
Certification :
ISO ,ROSH
Place of Origin :
China
MOQ :
1
Price :
1~30
Payment Terms :
L/C, T/T, Western Union, MoneyGram, paypal
Supply Ability :
1000000
Delivery Time :
7~15 working days
Packaging Details :
export packing
Brand name :
New Light
connector type :
LC UPC
OEM / ODM :
acceptable
warranty :
3 years
delivery time :
2-10 working days after receive payment
payment :
T/T , L/C , paypal , westen union , money gram
products name :
16 Channels CWDM module with fiber optic LC UPC single mode 3 meters
mode type :
single mode
Description

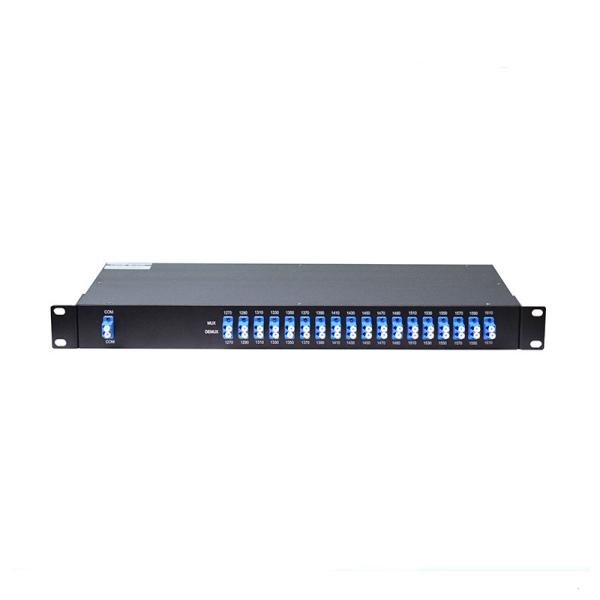

1U 19" Rack Mount Dual Fiber LC/UPC Connector 1270nm-1610nm 18CH CWDM Mux+Demux Module

CWDM Mux/Demux Module over a single or duplex single mode fiber is quite common to extend your overall bandwidth. It offer high stability and reliability, and has small package size. Its operating wavelength is from 1270nm to 1610nm(1261nm-1611nm) which totally offer 18 channels with 20nm channel spacing.

Features:

Low Insertion Loss

High Isolation

High Reliability and Stability

Low PDL

Compact Design

Good channel-to-channel uniformity

Wide Operating Wavelength: 1270nm-1610nm (1261nm~1611nm)

Wide Operating Temperature: -20 to +70℃

Applications:

CWDM System

Add/Drop

PON Networks

CATV Links

Compliance:

Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
RoHS

Performance Specifications

Parameter 4 Channel 8 Channel 18 Channel
Mux Demux Mux Demux Mux Demux
Channel Wavelength (nm) 1270~1610
Center wavelength Accuracy (nm) ±0.5
Channel Spacing (nm) 20
Channel Passband (@-0.5dB bandwidth (nm) >13
Insertion Loss (dB) ≤1.2 ≤2.5 ≤3.8
Channel Uniformity (dB) ≤0.5 ≤1.0 ≤1.5
Channel Ripple (dB) 0.3
Isolation (dB) Adjacent N/A >30 N/A >30 N/A >30
Non-adjacent N/A >40 N/A >40 N/A >40
Inertion Loss Temperature Sensitivity (dB/°C) <0.005
Wavelength Temperature Shifting (nm/°C) <0.002
Polarization Dependent Loss (dB) <0.1
Polarization Mode Dispersion <0.1
Directivity (dB) >50
Return Loss (dB) >45
Maximum Power Handling (mW) 300
Opterating Temperature (°C) -20~+70
Storage Temperature (°C) -40~85
Package dimension (mm) L100 x W80 x H10 or L140xW100xH15

Above specification are for device without connector.

ordering information

CWDM X XX X XX X X XX
Channel
Spacing		 Number of Channels Configuration 1st Channel Fiber Type Fiber
Length		 In/Out Connector
C=CWDM 16=16 Channel M=Mux
D=Demux		 13=1310nm
……
47=1470nm
49=1490nm
……
61=1610nm
SS=special		 1=Bare fiber
2=900um
Loose tube
3=2mm Cable
4=3mm Cable		 1=1m
2=2m
S=Specify		 0=None
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=LC/APC
6=LC/PC
S=Specify

1U 19

Packaging : bags&carton box

  • Shipping: International Express: Fedex, DHL, UPS, TNT and EMS , or by sea ..If you have another

preferred carrier, please notify us in advance.

  • FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
  • DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.




Delivery and payment


1. T/T/ , PAYPAL , WESTEN UNION , MONEY GRAM , L/C .
2. 30% deposit in advance , 70% balance paid before delivery .
