16 Splitters Plug In SplitterOptical Fiber Distribution Box Wall - Mounted
16 Splitters Plug In SplitterOptical Fiber Distribution Box Wall - Mounted
16 Splitters Plug In SplitterOptical Fiber Distribution Box Wall - Mounted
16 Splitters Plug In SplitterOptical Fiber Distribution Box Wall - Mounted
Specifications
Brand Name :
kelong
Model Number :
GF-KJW（N）/C-16
Certification :
tlc
Place of Origin :
china
MOQ :
200pcs
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/day
Delivery Time :
5-8 work days
Packaging Details :
carton/wood
installation envioronment :
indoor or outdoor
installation way :
wall mounted or pole mounted
PLC :
2*8,1*16
Description

GF-KJW(N) series optical fiber distribution box is an optical network termination and distribution device,has the function of splicing,termination,jumping,distribution and splitting.Applications:FTTH,FTTD,FTTB,FTTO

Technical parameters:

Operation Conditions:

Work Temperature: -25℃～+65℃

Relative humidity:≤95%

Atmospheric pressure: 70KPa~106 KPa

Photoelectric property

Insertion loss: ≤0.35dB

return loss:PC≥45 dB UPC≥50dB

withstand voltage between grounding device and the box ≥3000V(DC)/1min (no puncture,no flashover)

Isolation resistance between grounding device and the box＞2×104MΩ/500V(DC)

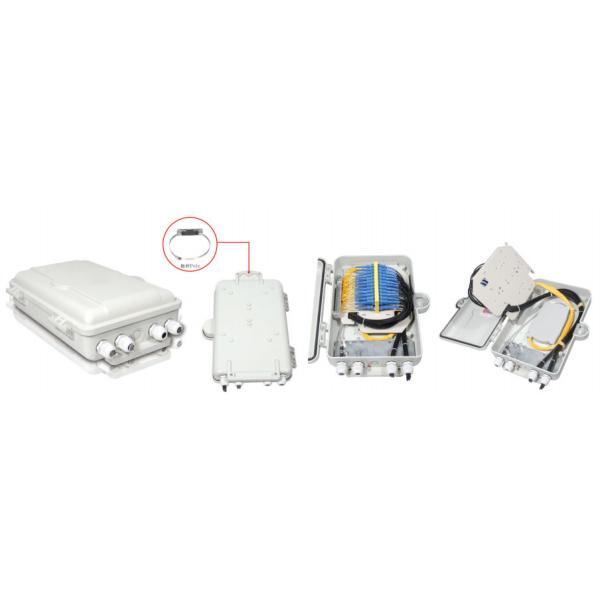

Optical Fiber distribution box(Plug in splitter type)

Cable insert way:bottom in and bottom out

Installation environment:Outdoor and Indoor

Good compatible performance,optional capacity,splitter cassette can be installed if you need.

It’s a distribution box which used in PON network splitting point,adopt plug in splitter,fip up structure,two-layer distribution space,small box size but big capacity.

NO. TYPE SIZE Installation method Remark
1 GF-KJW(N)/C-16 350*340*100 Wall-mounted(outdoor or indoor) special accessories for pole-mounted
2 GF-KJW(N)/C-32 460*340*100 Wall-mounted(outdoor or indoor) special accessories for pole-mounted
