Networking Enclosure Fiber Optic Cabinet 19inch Installation , 42/46U
Networking Enclosure Fiber Optic Cabinet 19inch Installation , 42/46U
Networking Enclosure Fiber Optic Cabinet 19inch Installation , 42/46U
Networking Enclosure Fiber Optic Cabinet 19inch Installation , 42/46U
Specifications
Brand Name :
kelong
Model Number :
G/MPX-KL007D
Certification :
tlc
Place of Origin :
china
MOQ :
5pcs
Packaging Details :
carton/wood
Delivery Time :
7 work days
installation size :
19inch
capacity :
42/46U
Description

Networking Enclosure Fiber Optic Cabinet 19inch Installation , 42/46U

G/MPX-KL007D Networking Enclosure has advanced ventilation,power distribution,cable management and great safety performance,to provides a rekiable space for IT servers,network equipments and telecom applications.Can be applied to networking,communication,industrial control and many other fields.19’’ international installation standard, universal type. Various accessories can be provided to meet the needs of different applications.

Operation Conditions:

Work Temperature: －5℃～＋40℃

Relative humidity:≤≤85%RH(25℃±5℃)

Altitude: £1000m (if altitude > 1000m, derating use according to GB/T 3859.2-1993)

Vertical gradient: ≤5%

The main dimension of framework,cabinet and the device

Networking Enclosure Fiber Optic Cabinet 19inch Installation , 42/46U

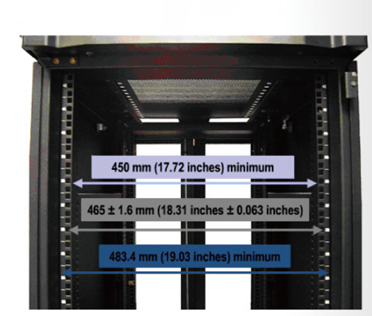

*The distance between two rails:450mm(17.72inches) minimum

* The distance between the installation holes in two rails:465±1.6mm

*The cabinet width:483.4mm minimum,offer the space for device panel

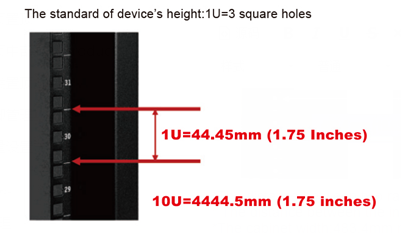

The standard of device’s height:1U=3 square holes

Networking Enclosure Fiber Optic Cabinet 19inch Installation , 42/46U

Cabinet dimension and capacity

dimension remark
height 2000,2200 dimension can be customized
width 600 dimension can be customized
depth 600,800,1000,1100,1200 dimension can be customized
capacity 42U(2000 mm height),46U(2200mm height),
