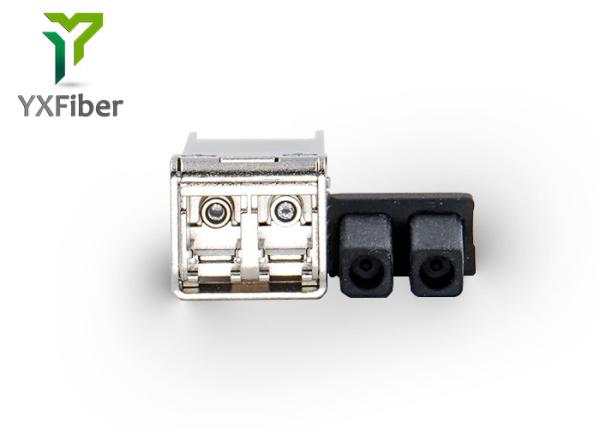

CH21 1550.12nm DW-SFP40-10G 40km ER 10G DWDM SFP+ Optical Module
CH21 1550.12nm DW-SFP40-10G 40km ER 10G DWDM SFP+ Optical Module
CH21 1550.12nm DW-SFP40-10G 40km ER 10G DWDM SFP+ Optical Module
CH21 1550.12nm DW-SFP40-10G 40km ER 10G DWDM SFP+ Optical Module
CH21 1550.12nm DW-SFP40-10G 40km ER 10G DWDM SFP+ Optical Module
CH21 1550.12nm DW-SFP40-10G 40km ER 10G DWDM SFP+ Optical Module
Specifications
Brand Name :
YXFiber
Model Number :
YXF-PP-DXXL-40D CH21
Certification :
CE RoHS FCC
Place of Origin :
Hubei, China
MOQ :
1pcs
Price :
$120.00 / Piece
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
1~3working days after payment
Packaging Details :
10pcs in Plastic tray
Type :
Optical Fibers
No. of Fiber :
2.
Use :
FTTH
Supply Voltage :
3.3V
Power :
0~+4dBm
Data rate :
10Gbps
Wavelength :
1559.79nm
Transmission distance :
40km
Interface :
Duplex LC
Power consumption :
<2W
Standard :
0°C to +70°C
Laser Type :
EML DWDM
Sensitivity :
<-23dBm
Application :
(Data Center)
Port :
Wuhan
Description
10G DWDM CH21 1559.79nm 40km SFP+ Module Duplex LC (Channel support 17-60)

Features:

DWDM PON network

Hot pluggable

ITU-T DWDM grid wavelengths

Data rate selectable ≤4.25Gbps or 9.95Gbps to 11.3Gbps bit rates

Up to 40km on 9/125um SMF

Compliant with SFP+ MSA

SFP MSA package with duplex LC connector

Temperature Stabilized DWDM DFB Transmitterd

Multi channels optional

Wide data-rate range

Low Power Dissipation 1.5W Maximum

Excellent ESD protection

-5ºC to 70ºC Operating Case Temperature

Single 3.3V power supply

Diagnostic Performance Monitoring of module temperature,

Supply Voltages, laser bias current, transmit optical power,

receive optical power

RoHS compliant and lead free

Application

Gigabit Ethernet

ATM

DWDM System

Fiber links

Specification 10G DWDM SFP+

Product type Data Rate Wavelength Reach LD TX Power PD Rx Sens
DWDM SFP+ 10G 15xx.xx nm 40Km EML -1~3dbm PIN <-20dbm
DWDM SFP+ 10G 15xx.xx nm 80Km EML 0~4dbm APD <-24dbm
DWDM XFP 10G 15xx.xx nm 40Km EML -1~3dbm PIN <-16dbm
DWDM XFP 10G 15xx.xx nm 80Km EML 0~4dbm APD <-24dbm

Gereral operating characteristics

Parameter Symbol Min. Typ Max. Unit Note
Data Rate Ethernet 10.3125 Gb/s
Fiber Channel 9.953
Supply Voltage Vcc 3.13 3.3 3.47 V
Vcc V
Supply Current Icc5 mA
Icc3 450 mA
Operating Case Temp Tc 0 70 °C
