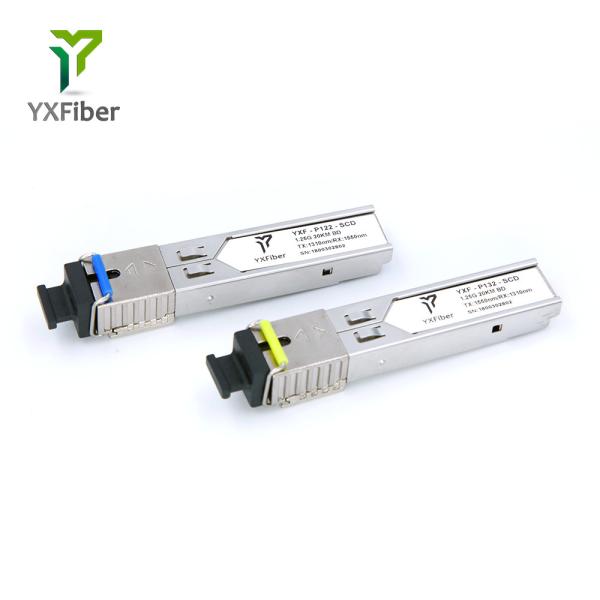

GLC-BX-20U/D SC SFP 1.25G BIDI 20KM 1310/1550nm Fiber Optic SFP Module
GLC-BX-20U/D SC SFP 1.25G BIDI 20KM 1310/1550nm Fiber Optic SFP Module
GLC-BX-20U/D SC SFP 1.25G BIDI 20KM 1310/1550nm Fiber Optic SFP Module
GLC-BX-20U/D SC SFP 1.25G BIDI 20KM 1310/1550nm Fiber Optic SFP Module
GLC-BX-20U/D SC SFP 1.25G BIDI 20KM 1310/1550nm Fiber Optic SFP Module
GLC-BX-20U/D SC SFP 1.25G BIDI 20KM 1310/1550nm Fiber Optic SFP Module
GLC-BX-20U/D SC SFP 1.25G BIDI 20KM 1310/1550nm Fiber Optic SFP Module
GLC-BX-20U/D SC SFP 1.25G BIDI 20KM 1310/1550nm Fiber Optic SFP Module
GLC-BX-20U/D SC SFP 1.25G BIDI 20KM 1310/1550nm Fiber Optic SFP Module
GLC-BX-20U/D SC SFP 1.25G BIDI 20KM 1310/1550nm Fiber Optic SFP Module
GLC-BX-20U/D SC SFP 1.25G BIDI 20KM 1310/1550nm Fiber Optic SFP Module
GLC-BX-20U/D SC SFP 1.25G BIDI 20KM 1310/1550nm Fiber Optic SFP Module
Specifications
Place of Origin :
Hubei, China
Brand Name :
YXFiber
Model Number :
YXF-P122-SCD/YXF-P132-SCD
Certification :
RoHS, ISO9001
Supply Ability :
8000 Piece/Pieces per Day
Packaging Details :
10pcs/ anti-static box.
MOQ :
1 Pair/Pairs
Price :
$7.00 - $9.00 / Pair
Payment Terms :
Western Union, T/T
Delivery Time :
1-3 working days
Type :
Fiber Optic Transceivers
No. of Fiber :
1.
Use :
FTTX
Supply Voltage :
3.3V
Power :
-3~-9dBm
Data rate :
1.25Gbps
Wavelength :
1310nm/1550nm
Transmission distance :
20km
Interface :
BIDI SC
Fiber Type :
SMF
DDMI :
Yes
Warranty :
1 Year
Application :
(Data Center)
Port :
Wuhan
Description
Product Description

1.25G 20km 1310/1550nm SFP Module BIDI SC DDM

Parameter Symbol Min Max Unit
Storage Temperature TSTG -40 +85 ºC
Ambient Operating Temperature TA 0 70 ºC
Optical Rise/Fall Time Tr /Tf - 0.26 ns
Eye Diagram IEEE 802.3z and ANSI Fibre Channel Compliant
Power Supply Current Icc - 200 mA
Extinction Ratio ER 9 13 dB
Sensitivity S - -22 dBm
Warning assert>-34dBm,de-assert<-26dBm

GLC-BX-20U/D SC SFP 1.25G BIDI 20KM 1310/1550nm Fiber Optic SFP Module

Applications

GLC-BX-20U/D SC SFP 1.25G BIDI 20KM 1310/1550nm Fiber Optic SFP Module

Company Profile

GLC-BX-20U/D SC SFP 1.25G BIDI 20KM 1310/1550nm Fiber Optic SFP Module

Packaging & Shipping

GLC-BX-20U/D SC SFP 1.25G BIDI 20KM 1310/1550nm Fiber Optic SFP Module
