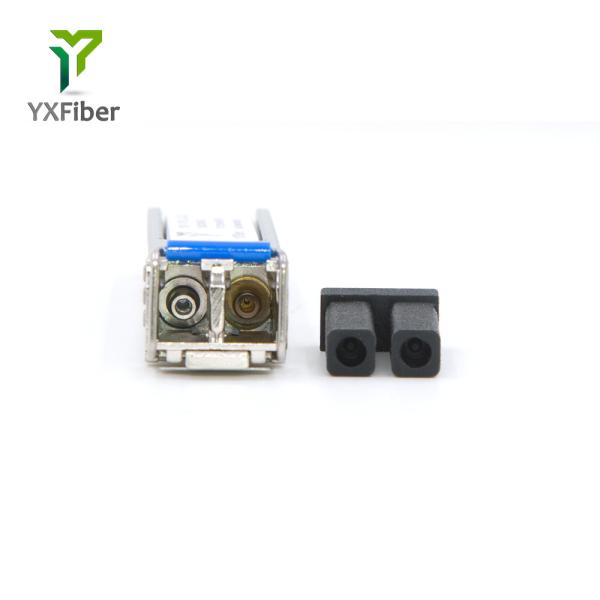

1.25G SFP-EX Dual 40km 1310nm DDM DOM LC Connector sfp fiber module
1.25G SFP-EX Dual 40km 1310nm DDM DOM LC Connector sfp fiber module
1.25G SFP-EX Dual 40km 1310nm DDM DOM LC Connector sfp fiber module
1.25G SFP-EX Dual 40km 1310nm DDM DOM LC Connector sfp fiber module
1.25G SFP-EX Dual 40km 1310nm DDM DOM LC Connector sfp fiber module
1.25G SFP-EX Dual 40km 1310nm DDM DOM LC Connector sfp fiber module
1.25G SFP-EX Dual 40km 1310nm DDM DOM LC Connector sfp fiber module
1.25G SFP-EX Dual 40km 1310nm DDM DOM LC Connector sfp fiber module
1.25G SFP-EX Dual 40km 1310nm DDM DOM LC Connector sfp fiber module
1.25G SFP-EX Dual 40km 1310nm DDM DOM LC Connector sfp fiber module
Specifications
Place of Origin :
Hubei, China
Brand Name :
YXFiber
Model Number :
YXF-GE-S31L-40D
Certification :
CE RoHS FCC
MOQ :
1pcs
Price :
$3.8~$4.5/PCS
Packaging Details :
10pcs in Plastic tray
Delivery Time :
1~3working days after payment
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Type :
Fiber Optic Transceivers
No. of Fiber :
2.
Use :
FTTH
Supply Voltage :
3.3V
Data rate :
1.25Gbps
Wavelength :
1310nm
Transmission distance :
40km
Interface :
Duplex LC
Fiber Type :
SMF
DDMI :
Yes
Warranty :
1 Year
Selling Units :
Single item
Single package size  :
22X5X6 cm
Single gross weight :
0.050 kg
Package Type :
10pcs/ anti-static box
Description
1.25G SFP-EX Dual 40km 1310nm DDM DOM LC Connector sfp fiber module

1.25G SFP-EX Dual 40km 1310nm DDM DOM LC Connector sfp fiber module

Features:

1. Small Form Pluggable (SFP) package.

2. DDM interface compliant with SFF-8472.

3. 1310nm DFB Laser and PIN receiver.

4. distance: 40Km

5. Power consumption less than 1.0W.

6. Hot-pluggable capability.

Application:

1. The transceiver is a low power, high performance, cost effective module supporting data-rate up to 1.25Gbps 40km transmission distance.

2. The low jitter and high sensitivity are extinguished features with 1310nm FP laser and PIN/TIA receiver.

3. The transceiver incorporates TX_DIS control, TX-FAULT and RX_LOS monitor functions.The devices are Class I laser safety compliant.

Parameter Symbol Min Max Unit
Storage Temperature TSTG -40 +85 ºC
Ambient Operating Temperature TA 0 70 ºC
Optical Rise/Fall Time Tr /Tf - 0.26 ns
Eye Diagram IEEE 802.3z and ANSI Fibre Channel Compliant
Power Supply Current Icc - 200 mA
Extinction Ratio ER 9 13 dB
Sensitivity S - -25 dBm
Warning assert>-34dBm,de-assert<-26dBm

Related Products

1.25G SFP-EX Dual 40km 1310nm DDM DOM LC Connector sfp fiber module

Production Flow

1.25G SFP-EX Dual 40km 1310nm DDM DOM LC Connector sfp fiber module

Certifications

1.25G SFP-EX Dual 40km 1310nm DDM DOM LC Connector sfp fiber module

FAQ

Q1. Do you provide samples? Is it free or extra?

Yes, but we need to charge for samples, we will return sample fee in the later order

Q2. What is your MOQ and the lead time?

We do not have MOQ, 1sample is available

Lead time: 1~3 working days for samples, 3~5 days for mass

Q3. What is your terms of payment?

Pament≤5000USD, 100% in advance

Payment> 5000USD, 40%T/T in advance, balance before shipment

Q4. How about Precautions?

Storage in anti-static box

When used, please ensure that the voltage is normal and stable

Q5. What is your after-sales service?

All our customers can enjoy the after-sales service for the three years quality warranty, and lifetime technical support

Q6. Could I use our own logo and label?

Yes, we could provide OEM service and make the products with your own label
