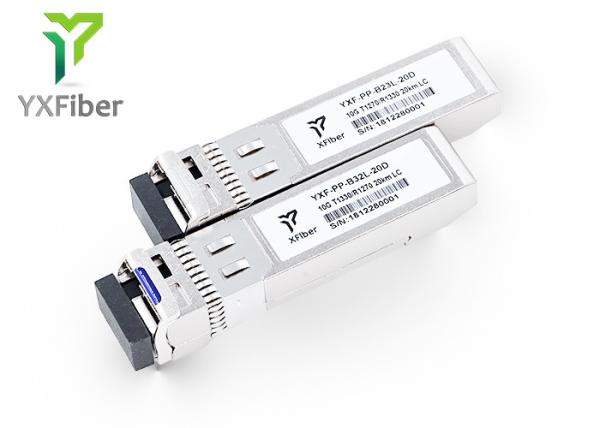

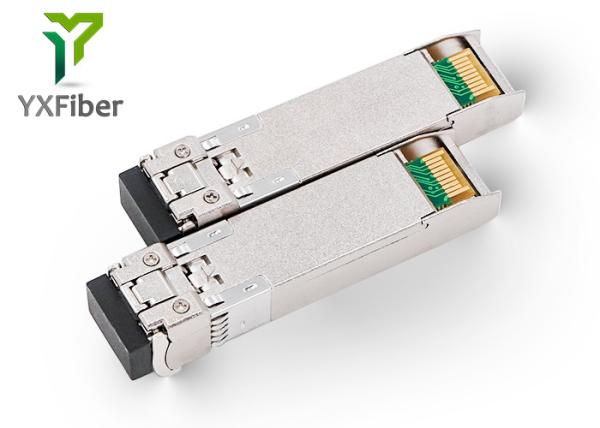

SFP-10G-BX20 BIDI SFP+ 20km 1270Tx/1330Rx LC SMF DFB Ddm DOM SFP Optical Module
SFP-10G-BX20 BIDI SFP+ 20km 1270Tx/1330Rx LC SMF DFB Ddm DOM SFP Optical Module
SFP-10G-BX20 BIDI SFP+ 20km 1270Tx/1330Rx LC SMF DFB Ddm DOM SFP Optical Module
SFP-10G-BX20 BIDI SFP+ 20km 1270Tx/1330Rx LC SMF DFB Ddm DOM SFP Optical Module
SFP-10G-BX20 BIDI SFP+ 20km 1270Tx/1330Rx LC SMF DFB Ddm DOM SFP Optical Module
SFP-10G-BX20 BIDI SFP+ 20km 1270Tx/1330Rx LC SMF DFB Ddm DOM SFP Optical Module
SFP-10G-BX20 BIDI SFP+ 20km 1270Tx/1330Rx LC SMF DFB Ddm DOM SFP Optical Module
SFP-10G-BX20 BIDI SFP+ 20km 1270Tx/1330Rx LC SMF DFB Ddm DOM SFP Optical Module
SFP-10G-BX20 BIDI SFP+ 20km 1270Tx/1330Rx LC SMF DFB Ddm DOM SFP Optical Module
SFP-10G-BX20 BIDI SFP+ 20km 1270Tx/1330Rx LC SMF DFB Ddm DOM SFP Optical Module
Specifications
Brand Name :
YXFiber
Model Number :
YXF-PP-B23L-20D/YXF-PP-B32L-20D
Certification :
CE RoHS FCC
Place of Origin :
Hubei, China
MOQ :
1PAIR
Price :
$24.00~$25/PAIR
Payment Terms :
T/T
Supply Ability :
100000pcs per month
Delivery Time :
1~3working days after payment
Packaging Details :
10pcs in Plastic tray
Type :
Fiber Optic Transceivers
No. of Fiber :
1.
Use :
FTTX
Supply Voltage :
3.3V
Power :
1~-7dBm
Data rate :
10G
Wavelength :
1270nm/1330nm
Transmission distance :
20km
Interface :
BIDI LC
Fiber Type :
SMF
DDMI :
Yes
Warranty :
1 Year
Selling Units :
Single item
Single package size  :
22X5X6 cm
Single gross weight :
0.100 kg
Package Type :
10pcs/ anti-static box.
Description
SFP-10G-BX BIDI SFP+ 20km 1270Tx/1330Rx LC SMF DFB ddm DOM SFP optical Module

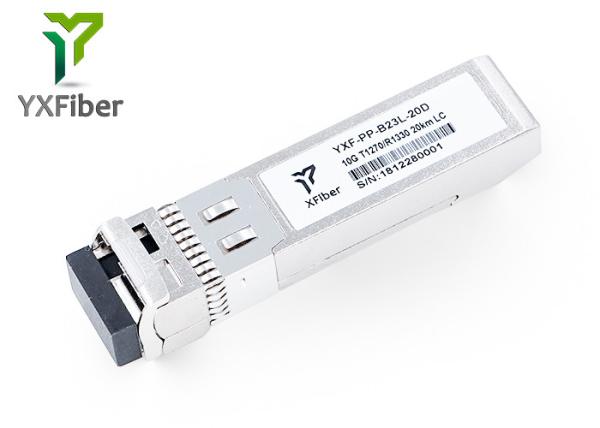

SFP-10G-BX-20U

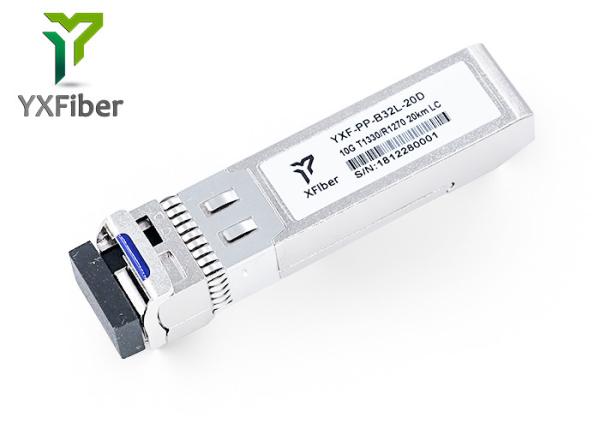

SFP-10G-BX-20D

Features

l Up to 20km transmission on SMF

l Up to 10.3125Gbps

l 1270nm/1330nm DFB laser and PIN receiver

l SFI electrical interface

l 2-wire interface for integrated Digital Diagnostic monitoring

l SFP+ MSA package with single LC connector

l Hot pluggable

l Very low EMI and excellent ESD protection

l +3.3V power supply

l Power consumption less than 1.0W

l Operating case temperature: 0~+70°C

10 gigabit sfp+

sfp+ lc

Applications

l High-speed storage area networks

l Computer cluster cross-connect

l Custom high-speed data pipes

Compliance

l Compliant with IEEE 802.3ae-2002

l Compliant with MSA SFF-8472

l Compliant with MSA SFF-8431

Specification

Absolute Maximum Ratings

Parameter

Symbol

Min.

Max.

Unit

Notes

Storage Temperature

TS

-40

+85

℃

Supply Voltage

VCC3

0

3.6

V

Relative Humidity

RH

5

+85

%

Note1

Rx Input Average Power

Pmax

-

+1.5

dBm

Our Advantages

SFP-10G-BX20 BIDI SFP+ 20km 1270Tx/1330Rx LC SMF DFB Ddm DOM SFP Optical Module

Related Products

SFP-10G-BX20 BIDI SFP+ 20km 1270Tx/1330Rx LC SMF DFB Ddm DOM SFP Optical Module

Production Flow

SFP-10G-BX20 BIDI SFP+ 20km 1270Tx/1330Rx LC SMF DFB Ddm DOM SFP Optical Module

Packaging & Shipping

SFP-10G-BX20 BIDI SFP+ 20km 1270Tx/1330Rx LC SMF DFB Ddm DOM SFP Optical Module

FAQ

Q1. Do you provide samples? Is it free or extra?

Yes, but we need to charge for samples, we will return sample fee in the later order

Q2. What is your MOQ and the lead time?

We do not have MOQ, 1sample is available

Lead time: 1~3 working days for samples, 3~5 days for mass

Q3. What is your terms of payment?

Pament≤5000USD, 100% in advance

Payment> 5000USD, 40%T/T in advance, balance before shipment

Q4. How about Precautions?

Storage in anti-static box

When used, please ensure that the voltage is normal and stable

Q5. What is your after-sales service?

All our customers can enjoy the after-sales service for the three years quality warranty, and lifetime technical support

Q6. Could I use our own logo and label?

Yes, we could provide OEM service and make the products with your own label
