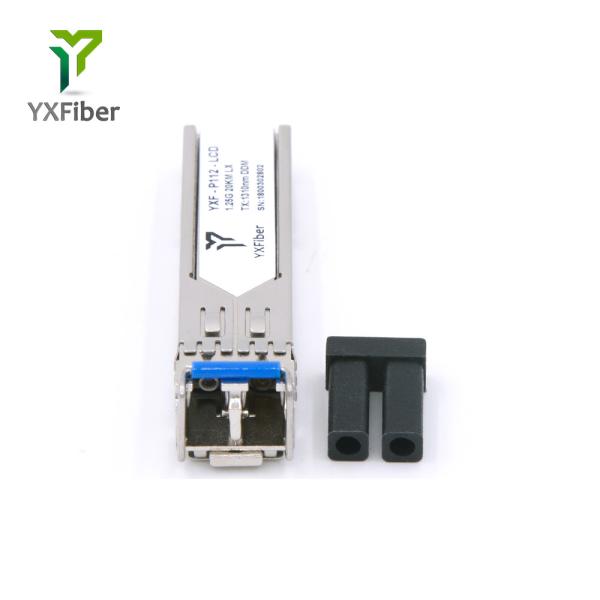

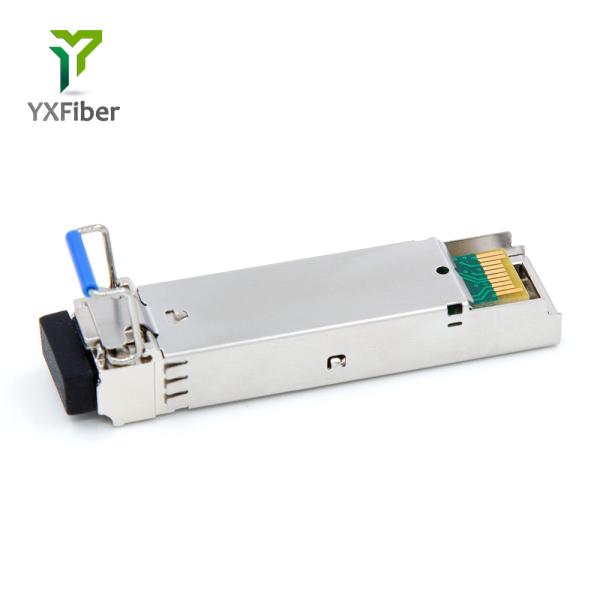

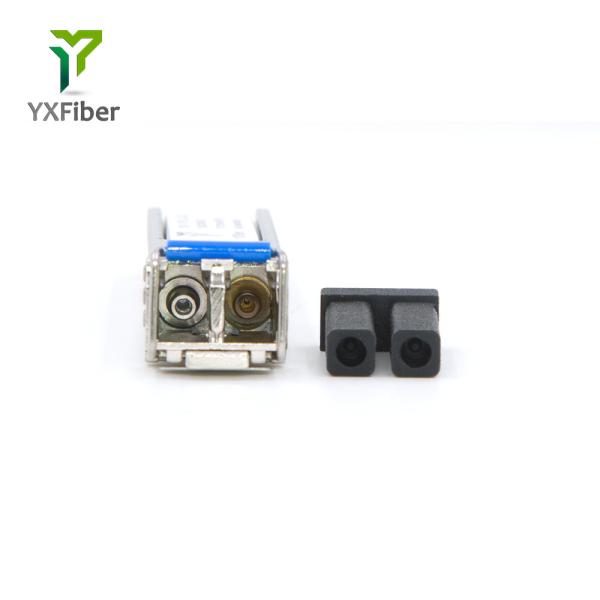

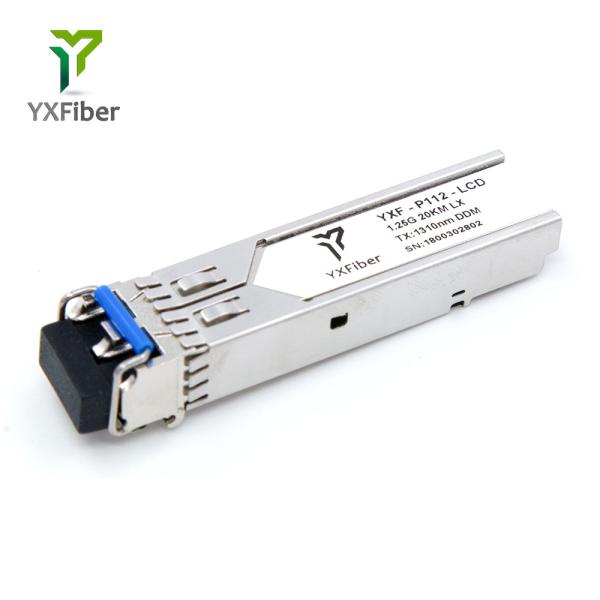

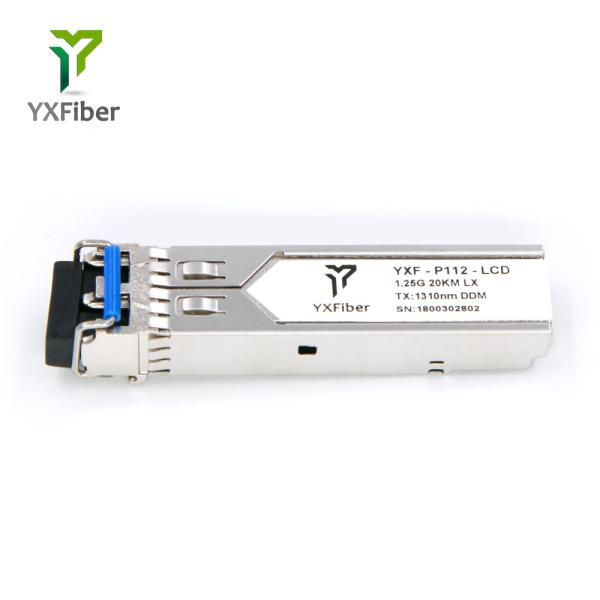

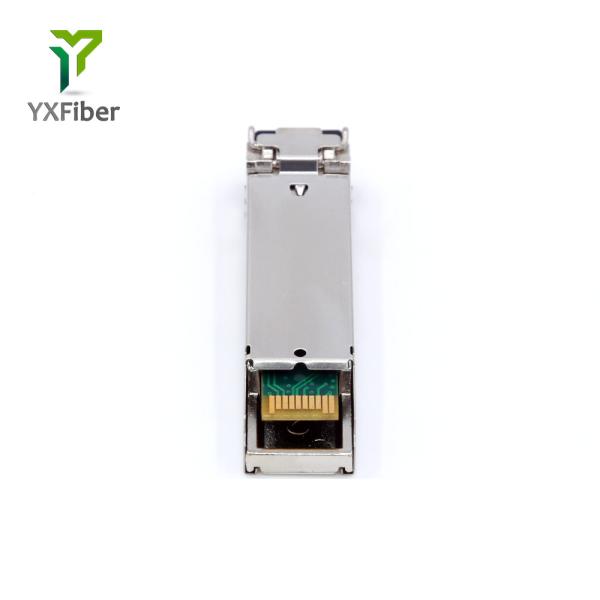

SFP 1000BX 20km 1310nm dual fiber SMF cisco fiber Transceiver SFP Module
SFP 1000BX 20km 1310nm dual fiber SMF cisco fiber Transceiver SFP Module
SFP 1000BX 20km 1310nm dual fiber SMF cisco fiber Transceiver SFP Module
SFP 1000BX 20km 1310nm dual fiber SMF cisco fiber Transceiver SFP Module
SFP 1000BX 20km 1310nm dual fiber SMF cisco fiber Transceiver SFP Module
SFP 1000BX 20km 1310nm dual fiber SMF cisco fiber Transceiver SFP Module
SFP 1000BX 20km 1310nm dual fiber SMF cisco fiber Transceiver SFP Module
SFP 1000BX 20km 1310nm dual fiber SMF cisco fiber Transceiver SFP Module
SFP 1000BX 20km 1310nm dual fiber SMF cisco fiber Transceiver SFP Module
SFP 1000BX 20km 1310nm dual fiber SMF cisco fiber Transceiver SFP Module
SFP 1000BX 20km 1310nm dual fiber SMF cisco fiber Transceiver SFP Module
SFP 1000BX 20km 1310nm dual fiber SMF cisco fiber Transceiver SFP Module
Specifications
Place of Origin :
Hubei, China
Brand Name :
YXFiber
Model Number :
YXF-P112-LCD
Certification :
RoHS, ISO9001
Supply Ability :
8000 Piece/Pieces per Day
Packaging Details :
10pcs/ anti-static box.
MOQ :
1 Piece/Pieces
Price :
$3.40 - $4.00 / Piece
Delivery Time :
1-3 working days
Type :
Fiber Optic Transceivers
No. of Fiber :
2.
Use :
FTTX
Supply Voltage :
3.3V
Power :
-3~-9dBm
Data rate :
1.25Gbps
Wavelength :
1310nm
Transmission distance :
20km
Interface :
Duplex LC
Fiber Type :
SMF
DDMI :
Yes
Warranty :
1 Year
Application :
(Data Center)
Port :
Wuhan
Description
Product Description
Technical Parameters Descriptions Technical Parameters Descriptions
Model Number YXF-GE-S31L-20D Interface LC
Fiber type SMF Laser/Detector FB/PIN
Form Factor Duplex SFP DDM Yes
Data Rate 1.25Gbps Output Power -3~-9dBm
Wavelength 1310nm Power Supply 3.3V
Distance 20KM Temperature 0~70°C
Sensitivity <-22.0dBm Certificate CE,ROHS,FCC,ISO9001,SGS
Selling Units Single Warranty 1Year

SFP 1000BX 20km 1310nm dual fiber SMF cisco fiber Transceiver SFP Module

Features:

1. Industry standard Small Form Pluggable (SFP) package.

2. Digital diagnostic monitor interface compliant with SFF-8472.

3. 1310nm FP Laser and PIN receiver.

4. Very low EMI and excellent ESD protection.

5. Power consumption less than 1.0W.

6. Hot-pluggable capability.

Advantages:

1. The transceiver is a low power, high performance, cost effective module supporting data-rate up to 1.25Gbps 20km transmission distance.

2. The low jitter and high sensitivity are extinguished features with 1310nm FP laser and PIN/TIA receiver.

3. The transceiver incorporates TX_DIS control, TX-FAULT and RX_LOS monitor functions.The devices are Class I laser safety compliant.

Parameter Symbol Min Max Unit
Storage Temperature TSTG -40 +85 ºC
Ambient Operating Temperature TA 0 70 ºC
Optical Rise/Fall Time Tr /Tf - 0.26 ns
Eye Diagram IEEE 802.3z and ANSI Fibre Channel Compliant
Power Supply Current Icc - 200 mA
Extinction Ratio ER 9 13 dB
Sensitivity S - -23 dBm
Warning assert>-34dBm,de-assert<-26dBm
Application

SFP 1000BX 20km 1310nm dual fiber SMF cisco fiber Transceiver SFP Module

Related Products

SFP 1000BX 20km 1310nm dual fiber SMF cisco fiber Transceiver SFP Module

Company Information

SFP 1000BX 20km 1310nm dual fiber SMF cisco fiber Transceiver SFP Module

Production Flow

SFP 1000BX 20km 1310nm dual fiber SMF cisco fiber Transceiver SFP Module

Packaging & Shipping

SFP 1000BX 20km 1310nm dual fiber SMF cisco fiber Transceiver SFP Module

FAQ

Q1. Do you provide samples? Is it free or extra?

Yes, but we need to charge for samples, we will return sample fee in the later order

Q2. What is your MOQ and the lead time?

We do not have MOQ, 1sample is available

Lead time: 1~3 working days for samples, 3~5 days for mass

Q3. What is your terms of payment?

Pament≤5000USD, 100% in advance

Payment> 5000USD, 40%T/T in advance, balance before shipment

Q4. How about Precautions?

Storage in anti-static box

When used, please ensure that the voltage is normal and stable

Q5. What is your after-sales service?

All our customers can enjoy the after-sales service for the three years quality warranty, and lifetime technical support

Q6. Could I use our own logo and label?

Yes, we could provide OEM service and make the products with your own label
