Specifications
Place of Origin :
shenzhen
Brand Name :
DYS/OEM
Certification :
IS09001-2015.ROHS
Model Number :
Armoured Fiber Optic Patch Cord
Mode :
Single-mode or Multi-mode
MOQ :
Negotiable
Packaging Details :
1pcs in 1 packign or Customized
Delivery Time :
2days
Payment Terms :
T/T or L/C,Western Union
Supply Ability :
500000PCS / Month
Price :
Negotiable
Description

Flexible Armoured Blue 6mm (12core) Diameter Singlemode Optical Fiber Patch Cord Gray

Quick Details

Brand Name: DYS
Model Number: Flexible Armoured Blue 6mm
Mode: Singlemode
Insertion Loss≤0.5 dB
Standard color:Blue(Singlemode), Gray(Multimode)
Compression resistant strength:≥150KGf/100MM

Applications
·Fiber to the home(FTTH)
·Building unprotected cabling
·WiMax base station remote radios
·Suited for Industrial and Aerospace and Defense applications.
·Based on the N type RF Coax connector

Features

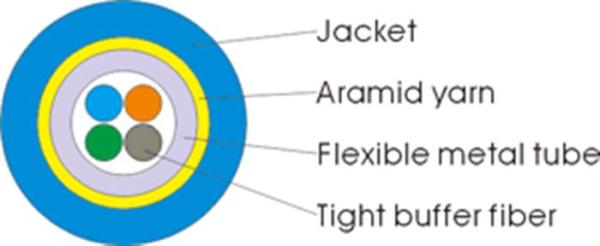

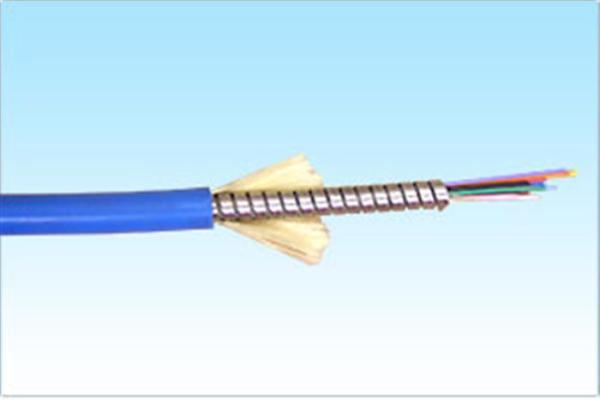

·Flexible metal tube protect the fiber optic

·High compression resistant, high tensile resistant, rat –bite resistant

·Bend resistant and optimum flexible

·Easy wiring, secured and reliable

Specifications

Item

Vaule

Outer diameter

2.9mm(1core, 2core), 4.0mm(4core), 4.5mm(6core), 6mm(12core)

Standard color

Blue(Singlemode), Gray(Multimode)

Operating temperature

-40℃～+75℃

Storage temperature

-40℃～+80℃

Compression resistant strength

≥150KGf/100MM

Tensile strength

Short term

150N

Long term

80N

Bending radius

Dynamic

45mm

Static

30mm


Competitive Advantage

DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, products exported to Europe and the United States and Southeast Asian countries.
