Vertical 96 Core Waterproof Fiber Optic Splice Closure For Ribbon Fibers
Vertical 96 Core Waterproof Fiber Optic Splice Closure For Ribbon Fibers
Vertical 96 Core Waterproof Fiber Optic Splice Closure For Ribbon Fibers
Vertical 96 Core Waterproof Fiber Optic Splice Closure For Ribbon Fibers
Vertical 96 Core Waterproof Fiber Optic Splice Closure For Ribbon Fibers
Vertical 96 Core Waterproof Fiber Optic Splice Closure For Ribbon Fibers
Vertical 96 Core Waterproof Fiber Optic Splice Closure For Ribbon Fibers
Vertical 96 Core Waterproof Fiber Optic Splice Closure For Ribbon Fibers
Vertical 96 Core Waterproof Fiber Optic Splice Closure For Ribbon Fibers
Vertical 96 Core Waterproof Fiber Optic Splice Closure For Ribbon Fibers
Vertical 96 Core Waterproof Fiber Optic Splice Closure For Ribbon Fibers
Vertical 96 Core Waterproof Fiber Optic Splice Closure For Ribbon Fibers
Specifications
Place of Origin :
Shenzhen（China）
Brand Name :
DYS/OEM
Certification :
IS09001-2015.ROHS
Model Number :
OFSC-009
Capacity :
96Core
Materials :
ABS, PC or PP
Size :
600x135
MOQ :
Negotiable
Packaging Details :
1pcs in 1 packign or Customized
Delivery Time :
3days
Payment Terms :
T/T or L/C,Western Union
Supply Ability :
500000PCS / Month
Price :
Negotiable
Name :
Fiber Optic Splice Closure
Applications :
Optical network
Features :
Suitable for aerial, duct, and underground application
Features2 :
Valve option for pressure testing
Duration :
25Years
Description

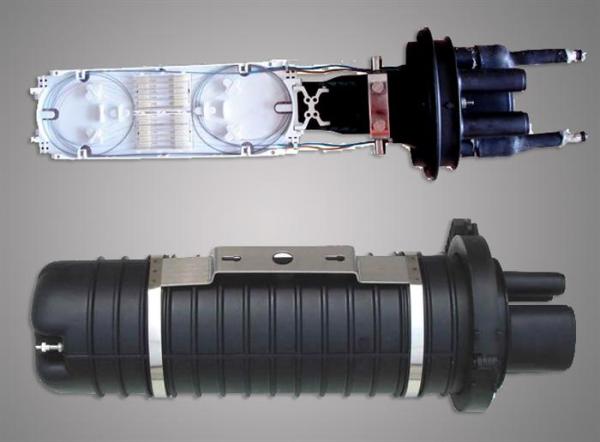

Vertical 96 Core Waterproof Fiber Optic Splice Closure For Ribbon Fibers

Quick Details:

Brand Name: DYS/OEM

Model Number:Vertical 96 Core

Application: aerial, direct-burying, wall-mounting,

Pipeline laying way

Structure: open structure

Material: ABS/PC

Span life: 30 years

Environmental temperature: -40°C to +75°C

Applications

·Optical network

·Local area netwoks

·Wide area networks

Features

·Suitable for aerial, duct, and underground application

·Valve option for pressure testing

·Quick open clamped design

·Reliable gasket sealing, reopened repeatedly without changing sealing material

·Suitable for ribbon and non-ribbon fibers

Specifications

Item

OFSC-001

OFSC-002

OFSC-003

OFSC-004

OFSC-005

OFSC-006

OFSC-007

OFSC-008

OFSC-009

OFSC-010

Size

(HxWxD)

mm

460x20

x110

415x200

x105

300x200

x93

386x250

x120

438x205

330x85

435x220

430x130

600x135

600x250

Cable diameter

(mm)

Φ5~Φ10mm

Φ10~Φ60mm

Cable port

4

8

2

6

4

3

3

5

5

5

Max capacity of splice

120

144

72

192

288

36

240

96

96

576

Weight(kg)

2.6

3.5

1.45

3.3

2.8

1

3.1

3.5

ab3.6

5.5

Materials

ABS, PC or PP

Duration

25Years

Type

Horizontal

Vertical(Dome)

Vertical 96 Core Waterproof Fiber Optic Splice Closure For Ribbon Fibers

Competitive Advantage

DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, products exported to Europe and the United States and Southeast Asian countries.
