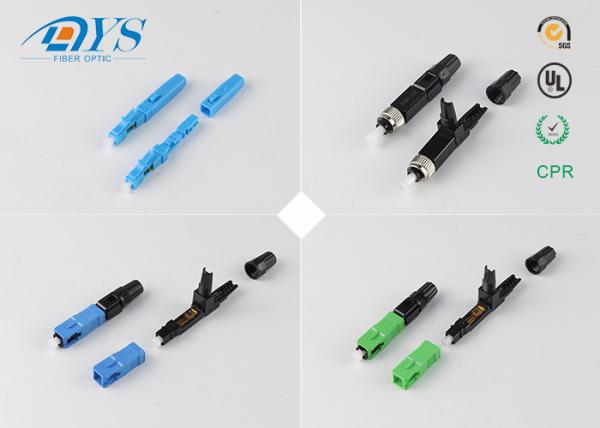

Field Assembly Optical Fiber Connectors Free sample Field Assembly FTTH SC Fiber Optic Quick Connector
Field Assembly Optical Fiber Connectors Free sample Field Assembly FTTH SC Fiber Optic Quick Connector
Field Assembly Optical Fiber Connectors Free sample Field Assembly FTTH SC Fiber Optic Quick Connector
Field Assembly Optical Fiber Connectors Free sample Field Assembly FTTH SC Fiber Optic Quick Connector
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
DYS
Certification :
IS09001-2015.ROHS
Model Number :
SC Quick Connector
MOQ :
Negotiable
Packaging Details :
Customized
Delivery Time :
2days
Payment Terms :
T/T or L/C,Western Union or Paypal
Supply Ability :
500000PCS / Month
Product name :
Field Assembly FTTH SC Fiber Optic Quick Connector
Insertion loss :
≤0.3dB
Return loss :
≥55dB
Mechaincal Durability :
1000matings
Storage temperature :
-40℃to+85℃
Operation temperature: :
-40℃to+85℃
Tensile Strengh :
>90N
Standard :
IEC 61754-4
Price :
Negotiable
Description

Installed in order to ensure the quality and efficiency of research and development of the high ratio of the fiber optic fast in products. Pressure welding parts adopt new unique structure design, installation no injecting, no grinding, no material . With embedded optical fiber type structure .

Installed with high quality and high success rate and fast and other characteristics .It Can be reused and easy to carry

APPLICATION

Used to open the FTTH fiber terminal end.

In the box, cabinet, such as wiring into the box.

Off the back of the accidents such as fiber, maintenance.

LAN, wan, data and video transmission.

The construction of the fiber end user access and maintenance.

Optical fiber access of mobile base station.

FEATURES

Single fiber, SC/LC/ST/FC-based connector

In-line connection available

Operating temperature: -40° to 85°C

Cable Diameter Range: 2.0mm, 3.0mm, 2.0*3.0mm

Field Assembly Optical Fiber Connectors Free sample Field Assembly FTTH SC Fiber Optic Quick Connector

PRODUCT PARAMETERS

Type SM-UPC SM-APC MM-UPC
Typical MAX Typical MAX Typical MAX
Insertion loss ≤0.1 ≤0.35dB ≤0.15 ≤0.35dB ≤0.05 ≤0.3dB
Return loss ≥45dB ≥55dB ≥30dB
Durability 500 mating cycles
Working temperature -40 to + 85℃
