Light Weight Fiber Optic Terminal Box For FTTH With Indoor Wall Mounted Type
Light Weight Fiber Optic Terminal Box For FTTH With Indoor Wall Mounted Type
Specifications
Place of Origin :
shenzhen
Brand Name :
DYS/OEM
Certification :
IS09001-2015.ROHS
Model Number :
FTTH-002
MOQ :
Negotiable
Price :
Negotiable
Packaging Details :
Individual box or according to customer's request
Delivery Time :
3-5 work days
Payment Terms :
L/C,T/T
Supply Ability :
500000PCS / Month
Description

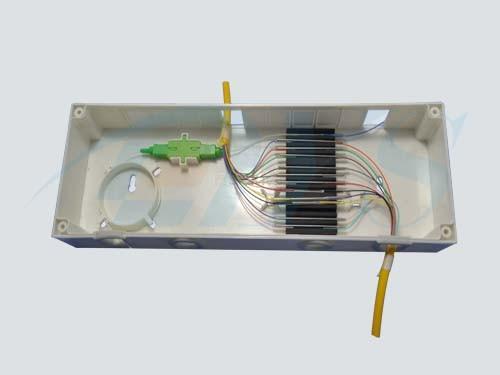

Light Weight Fiber Optic Terminal Box For FTTH With Indoor Wall Mounted Type

Quick Details:

Model Number: FTTH-002

Material:: ABS+PC

Type:: Indoor wall mounted

Introduction:

FTTH model of Fiber Optic Terminal Box is a newly developed by our company for application of FTTH. The box is light and compact, especially suitable for protective connection of fiber cables and pigtails in FTTH.

Applications

·Fiber to the home(FTTH)

·Fiber to the building(FTTB)

·Local area netwoks

·Wide area networks

Features

·Small size and light weight for easy installation compact body

·Wall mounted with mechanical protection function

·Available for FC,SC,ST,LC adatpers

·Fiber can get in from bottom or side

·Anti-UV, Ultra violet resistant and rainfall resistant

Main Technical Indexes

1.Environmental Temperature:-25°C~40°C;

2.Max capacity: 4 fibers;

3.Suitable types of fiber cables: 4 fibers indoor fiber cables;

4.Dimension: 150*110*30mm

Specifications:

Item

FTTH-1

FTTH-2

FTTH-3

FTTH-4

FTTH-5

FTTH-6

Size(HxWxD)mm

180x168x30

300x100x45

150x110x30

200x215x24

260 x320 x90

86x86x10

Cable diameter(mm)

Ф5～Ф10

Cable ports

2

4

2

Adapter ports

8

1

4

8

16

2

Max capacity of splice

16

12

4

16

2

Suitable Adapter

SC,LC,E2000

SC,FC,LC,E2000

Materials

ABS,PC or ABS+PC

EnvironmentalTemperature(℃)

－25～40

Light Weight Fiber Optic Terminal Box For FTTH With Indoor Wall Mounted Type

Competitive Advantage

DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.
