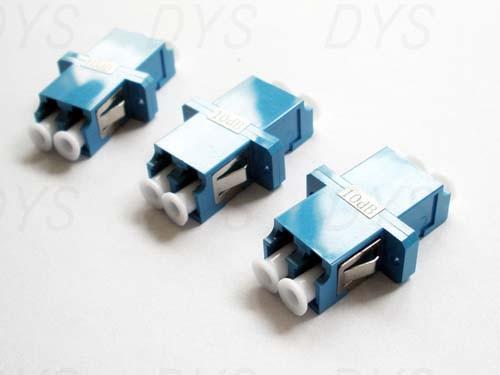

LC Duplex Fiber Optic Attenuator 10DB Fast For Optical Power Receivers Protection
LC Duplex Fiber Optic Attenuator 10DB Fast For Optical Power Receivers Protection
LC Duplex Fiber Optic Attenuator 10DB Fast For Optical Power Receivers Protection
LC Duplex Fiber Optic Attenuator 10DB Fast For Optical Power Receivers Protection
LC Duplex Fiber Optic Attenuator 10DB Fast For Optical Power Receivers Protection
LC Duplex Fiber Optic Attenuator 10DB Fast For Optical Power Receivers Protection
LC Duplex Fiber Optic Attenuator 10DB Fast For Optical Power Receivers Protection
LC Duplex Fiber Optic Attenuator 10DB Fast For Optical Power Receivers Protection
Specifications
Place of Origin :
Shenzhen（China）
Brand Name :
DYS/OEM
Certification :
IS09001-2015.ROHS
Model Number :
LC
MOQ :
Negotiable
Price :
Negotiable
Packaging Details :
Individual box or according to customer's request
Delivery Time :
3-5 work days
Payment Terms :
L/C,T/T
Supply Ability :
500000PCS / Month
Description

LC Duplex Fiber Optic Attenuator 10DB Fast For Optical Power Receivers Protection

Quick Details:

Model Number: LC attenuator

Attenuator Value: 10DB

Ploish: PC, UPC

Color: Blue

Connector: LC

Core: Duplex

Return Loss: >50

Mating Durability: >1000 cycle

LC Fiber optic duplex attenuator

DYS FIBER OPTIC COMPANY'sattenuator have adapter type andplug type.Including FC,SC,ST,LC,MU,E2000 etc.Meet theEUROPE ROHS request.Good loss value can adjust opticalpower to desired levels!

1.Aplication

• Passive optical networks


• Overpowered fiber optic systems


• Optical power receivers protection


• Multiwavelength systems balancing


• EDFA loop tests and measurements

2. Feature

• Metal ion doped fiber


• Attenuation levels ranging from 1 dB to 30 dB


• Low back reflection


• High power endurance


• Maximum stability, reliability and flat spectral response


• 100% IL, RL and visual inspection tested


• Easy to connect/disconnect (RJ latch)


• High mechanical resistance

3. Specification

Parameter

Value

Unit

Operating Wavelength

1310/1550 ± 10

nm

Tolerance for 1~5 dB Attenuation

± 0.5

dB

Tolerance for 6~30 dB Attenuation

± 10

%

Return Loss

> 50

dB

Operating Temperature

-40 to +75

C

Polarization Dependent Loss

< 0.1

dB

Mating Durability

>1000

cycle

LC Duplex Fiber Optic Attenuator 10DB Fast For Optical Power Receivers Protection

Competitive Advantage

DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, products exported to Europe and the United States and Southeast Asian countries.

Certificate of qualification

LC Duplex Fiber Optic Attenuator 10DB Fast For Optical Power Receivers Protection

Our Team

LC Duplex Fiber Optic Attenuator 10DB Fast For Optical Power Receivers Protection
