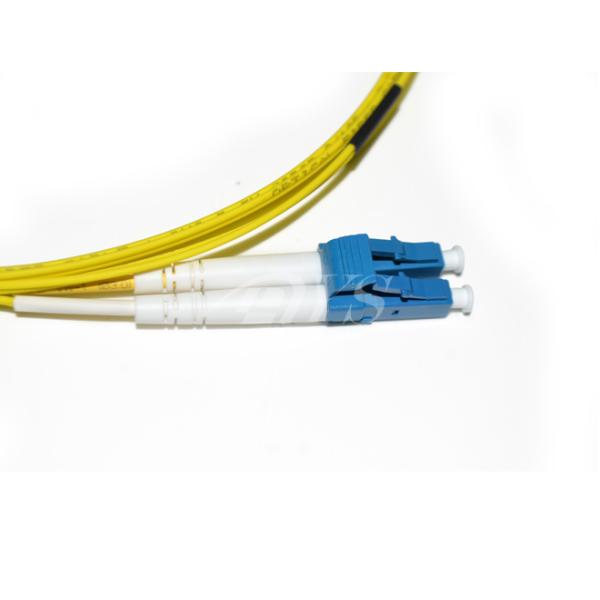

LC - LC Yellow Plastic Optical Fiber Patch Cord With Single Mode / Multimode
LC - LC Yellow Plastic Optical Fiber Patch Cord With Single Mode / Multimode
LC - LC Yellow Plastic Optical Fiber Patch Cord With Single Mode / Multimode
LC - LC Yellow Plastic Optical Fiber Patch Cord With Single Mode / Multimode
Specifications
MOQ :
Negotiable
Price :
Negotiable
Packaging Details :
Individual box or according to customer's request
Payment Terms :
T/C,L/C
Supply Ability :
2000/Weeks
Place of Origin :
shenzhen
Brand Name :
DYS/OEM
Model Number :
LC-LC
Certification :
IS09001-2015.ROHS
Description

LC - LC Yellow Plastic Optical Fiber Patch Cord With Single Mode / Multimode

Quick Details:

1.Place of Origin: Guangdong, China (Mainland)

2.Brand Name: DYS

3.Model Number: LC-LC

4.Certification 2: ISO 9001:2000

1.Fiber Optic Patch Cord Specifications

1.High Return Loss & Low Insertion Loss
2.High reliability and stability
3.Green Production, CE, RoHS Standard

2.Fiber Optic Patch CordParameter

Mode

Single mode

Multimode

Polish

UPC

APC

PC

Insertion Loss

≤0.2dB

≤0.3dB

≤0.2dB

Return Loss

≥55dB

≥65dB

≥35dB

Interchangeability

≤0.2dB

Salt Spray

≤0.1dB

Repeatability

≤0.1dB (1000 times)

Vibration

≤0.2dB (550Hz 1.5mm)

Temperature

≤0.2dB (-40+85 sustain 100 hours)

Humidity

≤0.2dB (+25+65 93 R.H.100 hours)

Apex Offset

0μm ~ 50μm

Radius of Curvature

7mm ~ 25mm

Standards-Compliant

ROHS,IEC and GR-326

Fiber cable performance specifications

Fiber type

Min.Bandwidth

Distance

attenuation

62.5/125

850/1300nm

200/500 MHz/Km

@100Mbps 2km @1Gig 220m

850/1300nm

3.0/1.0dB/km

50/125

850/1300nm

500/500 MHz/Km

@100Mbps 2km @1Gig 500m

850/1300nm

3.0/1.0dB/km

50/125

10Gig Optimized

850/1300nm

2000/500 MHz/Km

@100Gig Varies by VCSEL typical 300m 2850nm

850/1300nm

3.0/1.0dB/km

9/125

1310/1550nm

Approx 100 Terahertz

Up to 100km Varies by transceiver

1310/1550nm

0.4/0.3dB/km

Fiber type

Single mode:1,9/125-G652D
2,9/125-G655
3,9/125-G657

Multimode:4,50/125-OM2
5,62.5/125-OM1
6,50/125-OM3

Fiber

Corning,China Fiber,other

Connector1

SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO,SMA,D4 and others

Polishing

PC,UPC,APC,MTRJ Male connector,MTRJ female connector

Connector2

SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO,SMA,D4 and others

Polishing

PC,UPC,APC,MTRJ Male connector,MTRJ female connector

Cord type

Simplex ,Duplex

Cable diameter

0.9mm ,2.0mm,1.8mm 3.0mm

Cable jacket

PVC,LSZH,OFNR,OFNP

length(M)

0.5m,1m,3M,5m,10m,20m,200m

3.Fiber Optic Patch Cord Application

1.Optical fiber communications system

2.Optical fiber access networks

3.Optical fiber CATV

4.Optical fiber test equipments

5.Optical fiber data communication

LC - LC Yellow Plastic Optical Fiber Patch Cord With Single Mode / Multimode

Competitive Advantage
DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, products exported to Europe and the United States and Southeast Asian countries.

Why choose us :
1.Competitive price
2. Fast delivery
3.Free sample provided
4.Longtime warranty
5.Reliable quality, OEM service available
6. Professional product and technical support
7.Prompt answer for any question or inquiry
8.Value-added service: except good products, we can provide good services on logistic and other help you may need

Fiber Optic Patch Cord is one of our most competitive products. Any request, please kindly contact with me,I will do my best to satisfy your requirement. Hope I will take an opportunity to serve your esteemed company

If you have any questions or request,please let me know

I am at your service all the time!
