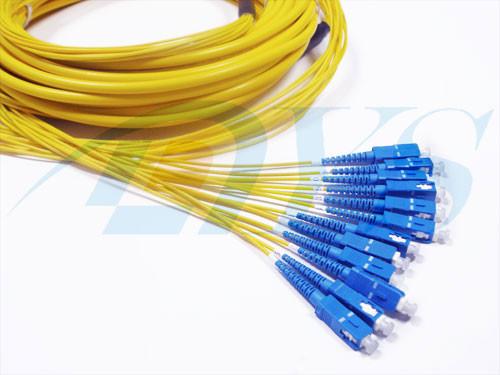

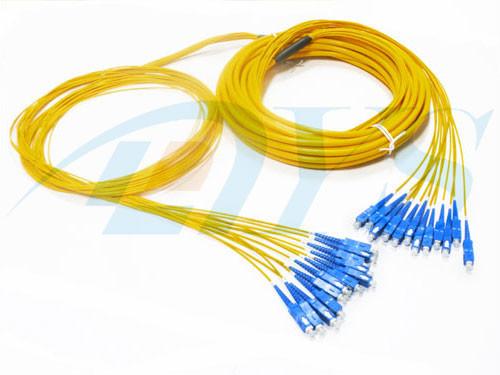

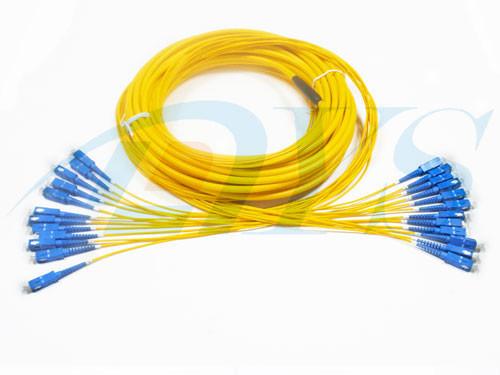

High Fiber Density Optical Fiber Patch Cord Single Mode 4 - 48 Cores Ribbon / Bundle Pigtail
High Fiber Density Optical Fiber Patch Cord Single Mode 4 - 48 Cores Ribbon / Bundle Pigtail
High Fiber Density Optical Fiber Patch Cord Single Mode 4 - 48 Cores Ribbon / Bundle Pigtail
High Fiber Density Optical Fiber Patch Cord Single Mode 4 - 48 Cores Ribbon / Bundle Pigtail
High Fiber Density Optical Fiber Patch Cord Single Mode 4 - 48 Cores Ribbon / Bundle Pigtail
High Fiber Density Optical Fiber Patch Cord Single Mode 4 - 48 Cores Ribbon / Bundle Pigtail
High Fiber Density Optical Fiber Patch Cord Single Mode 4 - 48 Cores Ribbon / Bundle Pigtail
High Fiber Density Optical Fiber Patch Cord Single Mode 4 - 48 Cores Ribbon / Bundle Pigtail
Specifications
Place of Origin :
shenzhen
Brand Name :
DYS/OEM
Certification :
IS09001-2015.ROHS
Model Number :
Standard Fiber Optic Patch Cord
Mode :
Single-mode or Multi-mode
Connector :
SC,FC,ST,LC,MU,E200,MPO
Insert loss :
≤0.2dB
Suitcable fiber :
9/125μm,50/125μm,62.5/125μm
MOQ :
Negotiable
Packaging Details :
1pcs in 1 packign or Customized
Delivery Time :
2days
Payment Terms :
T/T or L/C,Western Union
Supply Ability :
500000PCS / Month
Price :
Negotiable
Description

High Fiber Density Optical Fiber Patch Cord Single Mode 4 - 48 Cores Ribbon / Bundle Pigtail

Quick Details

Brand Name: DYS

Model Number: Single Mode 4 - 48 Cores

Mode: Singlemode

Insertion Loss≤0.2 dB

Tensile strength≥10kg

Applications

1·Switching between trunk line and distribution line

2·Connection of trunk line

3. Local area networks

4.Wide area networks

5·High integrated equiement and devices

6·High density cable wiring system

Features

1·4-48core available

2·0.9, 2.0, 3.0 fanout available

3·Small volume, high fiber density

4.High back reflection loss value

5.Stable capability and high reliability

6.Excellent mechanical capability

Performance

Item

SingleMode

MultiMode

Insertion loss

≤0.2dB

≤0.3dB

Return loss

PC≥50dB, APC≥55dB, UPC≥60dB

Insert-pull test

1000 times

Repeatability

≤0.1

Tensile strength

≥10kg

Operating temperature

-40℃~ +85℃

Ceramic ferrule spec

125.5um concentricity deviations:≤1μm

127um concentricity deviations:≤3μm

Suitable fiber

9/125μm

50/125μm, 62.5/125μm

Competitive Advantage

DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure productquality stability andexcellent performance; and good after-sales service, to win the trust of customers, products exported to Europe and the United States and Southeast Asian countries.

High Fiber Density Optical Fiber Patch Cord Single Mode 4 - 48 Cores Ribbon / Bundle Pigtail

High Fiber Density Optical Fiber Patch Cord Single Mode 4 - 48 Cores Ribbon / Bundle Pigtail
