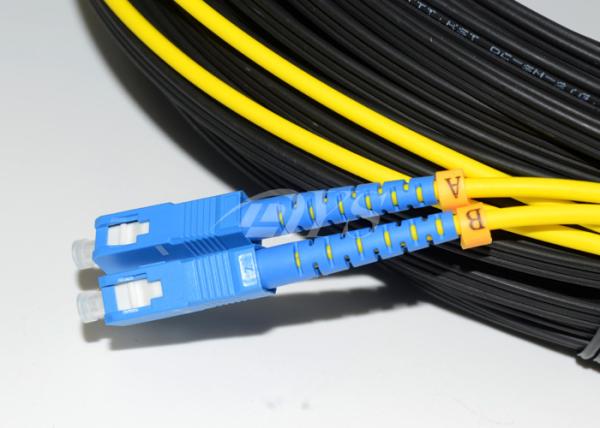

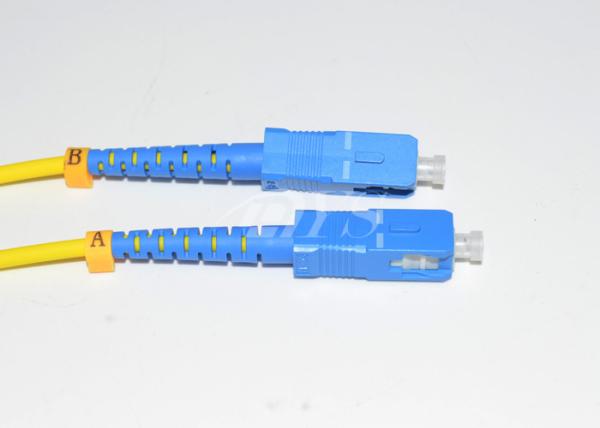

Duplex SC to SC Optical Fiber Patch Cord Patch / Cord Jumper For CATV
Duplex SC to SC Optical Fiber Patch Cord Patch / Cord Jumper For CATV
Duplex SC to SC Optical Fiber Patch Cord Patch / Cord Jumper For CATV
Duplex SC to SC Optical Fiber Patch Cord Patch / Cord Jumper For CATV
Duplex SC to SC Optical Fiber Patch Cord Patch / Cord Jumper For CATV
Duplex SC to SC Optical Fiber Patch Cord Patch / Cord Jumper For CATV
Duplex SC to SC Optical Fiber Patch Cord Patch / Cord Jumper For CATV
Duplex SC to SC Optical Fiber Patch Cord Patch / Cord Jumper For CATV
Specifications
Brand Name :
DYSFO
Model Number :
SC-SC
Certification :
IS09001-2015.ROHS
Place of Origin :
Guangdong, China (Mainland)
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T or L/C,Western Union or Paypal
Supply Ability :
500000PCS / Month
Delivery Time :
3-5 work days
Packaging Details :
Individual box or according to customer's request
Inserion Loss :
<0.2db
Certifaction :
ISO9001, ROHS
Jacket color: :
Black
Fiber Count: :
duplex
Description

Duplex SC to SC Optical Fiber Patch Cord Patch Cord jumper

Quick Detail:

  • Brand Name: DYS/OEM
  • Model Number: FTTH SC/UPC
  • Fiber type: Singlemode
  • Return Loss: >55db
  • Certifaction: ISO9001, ROHS
  • Cable type: FTTH FLAT DROP CABLE
  • Jacket color: Black
  • Fiber Count: duplex
  • Place of Origin: Guangdong, China (Mainland)
  • Inserion Loss: <0.2db

Packaging & Delivery

Packaging Details: Individual box or according to customer's request

Feature:

Price-Competitive

Low Insertion Loss & PDL

Factory-terminated and Tested

Fiber Options: G.652 /G.657/OM1/OM2/OM3 and PM Panda Fiber

Connector Options: FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTP

Polishing Options: PC/UPC/APC

Feature Connector with Ceramic Ferrules

Applications

Telecommunications networks
CATV, LAN, MAN and WAN application
Data processing networks
Cable television
Fibre-To-The-Home (FTTH)
Premises distribution

Specifications

Parameters Standard Fiber Cable Assemblies
Fiber Type SM(G.652/G.657A) MM(OM1/OM2/OM3)
Jacket Materials LSZH/OFNR/PVC
Connector Type SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials Ceramic
Testing Wavelengths 1310±30/1550±30nm 850±30/1300±30nm
Insertion Losss(dB)
TIA/EIA-455-107		 ≤ 0.3dB
(PC/UPC/APC)		 ≤ 0.3dB
(PC/UPC)
Return Loss(dB)
TIA/EIA-455-107		 ≥45dB(PC/UPC)
≥55dB(APC)		 ≥35dB(PC/UPC)
Exchangeability ≤ 0.2dB
Cable Assemblies Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C) -10~ + 70
Storage Temperature (° C) -40 ~ +85
Package 1unit/bag
*All values specified are with connectors.

Duplex SC to SC Optical Fiber Patch Cord Patch / Cord Jumper For CATVDuplex SC to SC Optical Fiber Patch Cord Patch / Cord Jumper For CATV

Competitive Advantage

DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.
