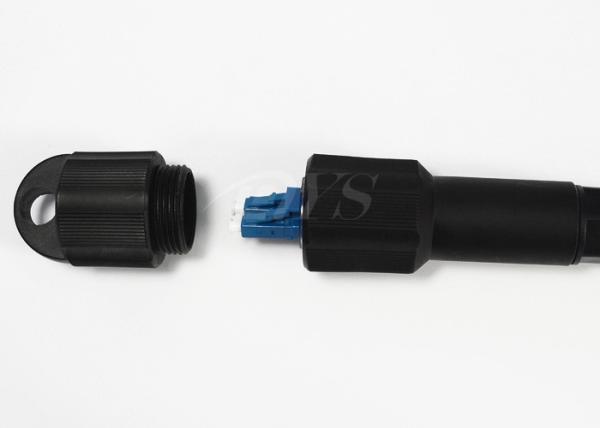

Black Waterproof ODLC / PDLC Fiber Optic Patch Cord , High shock

Quick Detail:

Fiber type: Singlemode9/125

Inserion Loss: <0.3db

Return Loss: >45db

Diameter: 7.0mm

Cable Color: Black

Delivery Detail:in 3 days

Details:

PDLC harsh environment cable assemblies are installation-friendly for fixed or mobile applications and transmit reliably data over long distances under severe environmental conditions.

Key Features

1• Robust fiber-optic connector for 2 and 4 channels with screwed mating mechanism

2• IP68 protection, salt-mist proof, and EMI protection

3• High shock, vibration, and mechanical resistance

4• Broad temperature range and wide range of indoor and outdoor cables

5• Easy, reliable and cost-effective installation

Application:

Fiber-to-the-Antenna (FTTA)

Latest and next-generation mobile communication systems(GSM, UMTS, CMDA2000, TD-SCDMA, WiMAX, LTE,etc.) deploy fiber-optic feeders to link the base station with the remote unit at the antenna mast.

Automation and industrial cabling

provides highest reliability and operating safety. The ruggedized design provides highest mechanical and thermal robustness which keeps the data lines alive even in case of
shock, strongest vibration, or accidental misuse.

Surveillance systems

Security camera manufacturers choose ODC connectors for its compact size and robust design. ODC assemblies are easy to install even in areas difficult to access and provide highest installation safety.

Naval and ship building

The high corrosion resistance convinced both naval and civil ship builders to use ODC assemblies for on-board communication systems. The nickel plated connectors withstand humid and salty environments and guarantee life times of 20 years and beyond.

Broadcast

offers a range of mobile cabling systems and ODC assemblies for temporary cable installations
required for the broadcasting of sport events, car racing, etc.and for temporary connections in case of natural hazards.

Optical performance

1.Insertion loss / IEC 61300-3-34

2.singlemode typ. ≤ 0.2 dB 97% ≤ 0.45 dB
3.multimode typ. ≤ 0.2 dB 97% ≤ 0.50 d
Return loss / IEC 61300-3-6 singlemode ≥ 50 dB

Competitive Advantage

DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; And good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.
