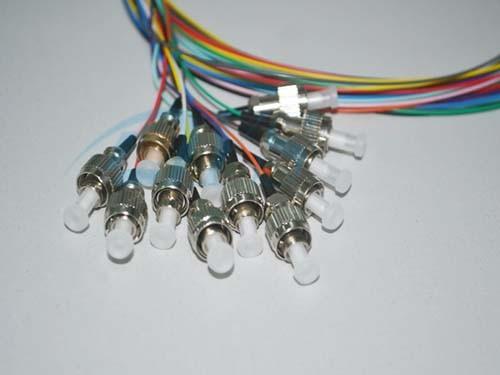

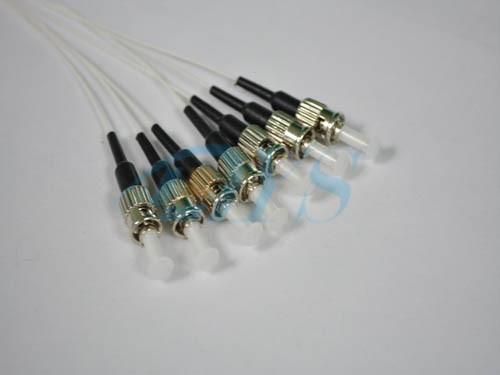

ST / PC Optic Fiber Connectors 12 Cores Cable Singlemode For Telecom Network
ST / PC Optic Fiber Connectors 12 Cores Cable Singlemode For Telecom Network
ST / PC Optic Fiber Connectors 12 Cores Cable Singlemode For Telecom Network
ST / PC Optic Fiber Connectors 12 Cores Cable Singlemode For Telecom Network
ST / PC Optic Fiber Connectors 12 Cores Cable Singlemode For Telecom Network
ST / PC Optic Fiber Connectors 12 Cores Cable Singlemode For Telecom Network
ST / PC Optic Fiber Connectors 12 Cores Cable Singlemode For Telecom Network
ST / PC Optic Fiber Connectors 12 Cores Cable Singlemode For Telecom Network
Specifications
Place of Origin :
shenzhen
Brand Name :
DYS/OEM
Certification :
IS09001-2015.ROHS
Model Number :
ST
MOQ :
Negotiable
Price :
Negotiable
Packaging Details :
Individual box or according to customer's request
Delivery Time :
3-5 work days
Payment Terms :
L/C,T/T
Supply Ability :
500000PCS / Month
Description

ST / PC Optic Fiber Connectors 12 Cores Cable Singlemode For Telecom Network

Quick Details:

Brand Name: DYS/OEM

Model Number: ST

Connector type: SC, LC, FC, ST, E2000, MU, MTRJ...

Inserion Loss: <0.3db

Return Loss: >45db

Cable diameter: 0.9, 2.0, 3.0mm

Cable material: PVC, LSZH, OFNR, OFNP, Hytrel

Applications

* CATV

* Telecom network

* Optical test equipment

* Local area networks

* Wide area networks

* Data processing networks

Features

* Low insertion loss value

* High back reflection loss value

* Stable capability and high reliability

* Excellent mechanical capability

* Boots in a variety of colors

Specifications:

Parameters Standard Fiber Cable Assemblies
Fiber Type SM(G.652/G.657A) MM(OM1/OM2/OM3)
Jacket Materials LSZH/OFNR/PVC
Connector Type SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials Ceramic
Testing Wavelengths 1310±30/1550±30nm 850±30/1300±30nm
Insertion Losss(dB)
TIA/EIA-455-107		 ≤ 0.3dB
(PC/UPC/APC)		 ≤ 0.3dB
(PC/UPC)
Return Loss(dB)
TIA/EIA-455-107		 ≥45dB(PC/UPC)
≥55dB(APC)		 ≥35dB(PC/UPC)
Exchangeability ≤ 0.2dB
Cable Assemblies Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C) -10~ + 70
Storage Temperature (° C) -40 ~ +85
Package 1unit/bag
*All values specified are with connectors.

ST / PC Optic Fiber Connectors 12 Cores Cable Singlemode For Telecom Network

Competitive Advantage

DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.

Certificate of qualification

ST / PC Optic Fiber Connectors 12 Cores Cable Singlemode For Telecom Network

Our Team

ST / PC Optic Fiber Connectors 12 Cores Cable Singlemode For Telecom Network
