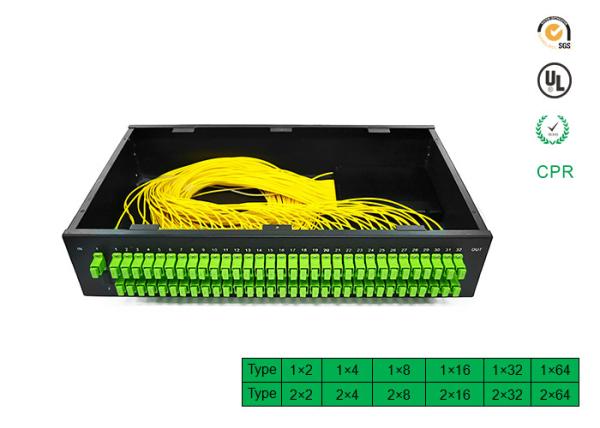

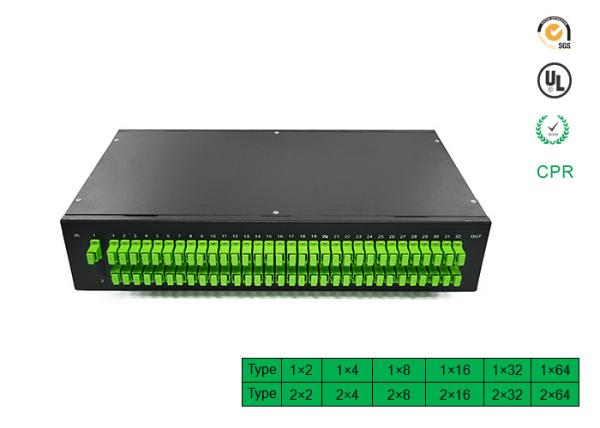

Factory directly selling price for 1x64 PLC Optical Fiber Splitter Rack optical splitter with SC APC connector
Factory directly selling price for 1x64 PLC Optical Fiber Splitter Rack optical splitter with SC APC connector
Factory directly selling price for 1x64 PLC Optical Fiber Splitter Rack optical splitter with SC APC connector
Factory directly selling price for 1x64 PLC Optical Fiber Splitter Rack optical splitter with SC APC connector
Factory directly selling price for 1x64 PLC Optical Fiber Splitter Rack optical splitter with SC APC connector
Factory directly selling price for 1x64 PLC Optical Fiber Splitter Rack optical splitter with SC APC connector
Factory directly selling price for 1x64 PLC Optical Fiber Splitter Rack optical splitter with SC APC connector
Factory directly selling price for 1x64 PLC Optical Fiber Splitter Rack optical splitter with SC APC connector
Factory directly selling price for 1x64 PLC Optical Fiber Splitter Rack optical splitter with SC APC connector
Factory directly selling price for 1x64 PLC Optical Fiber Splitter Rack optical splitter with SC APC connector
Specifications
Brand Name :
Fiber optic splitter
Model Number :
Rack mounted type
Certification :
IS09001-2015.ROHS
Place of Origin :
Guangdong, China (Mainland)
MOQ :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
50000/Week
Delivery Time :
in 3 days
Packaging Details :
Individual Box or According to Customer's Request
Wavelength :
1260-1650nm
Fiber Type :
G657A1 or customized made
Type :
Rack mounted type
Color :
Blue,Orange,Green,Brown,Grey,White,Red,Black
Input and Out Fiber Length :
1.1M ±0.05M
Input/output cable diameter :
0.25mm or 0.9mm or 2.0mm or 3.0mm
Input/output cable Jacket :
Hytrel/PVC/LSZH
Price :
Negotiable
Description

Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used 1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical optical distributor (POS) use. Including 1x2,1x4,1x8,1x16,1x32,1x64, and 2x2,2X4,2X8,2X16,2X32,2X64 type.

Applications

FTTx Systems

Digital, hybrid and AM-Video systems

LAN,WAN and Metro Networks

CATV systems

Other applictaions in fiber optic systems

Types

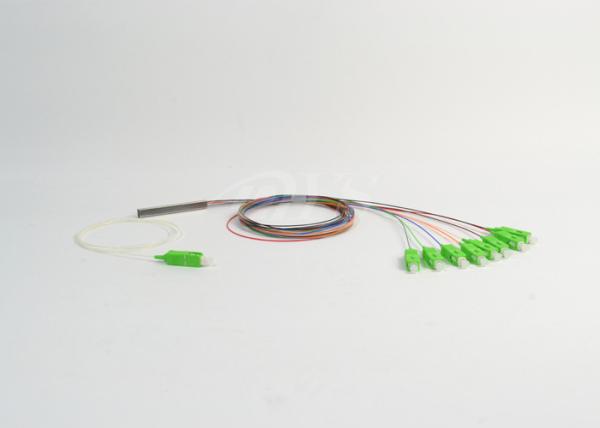

1. Basic type PLC splitter

2. SFF type PLC splitter

3. 900um Fan-out Type PLC Splitter

4. Cassette type PLC splitter Module

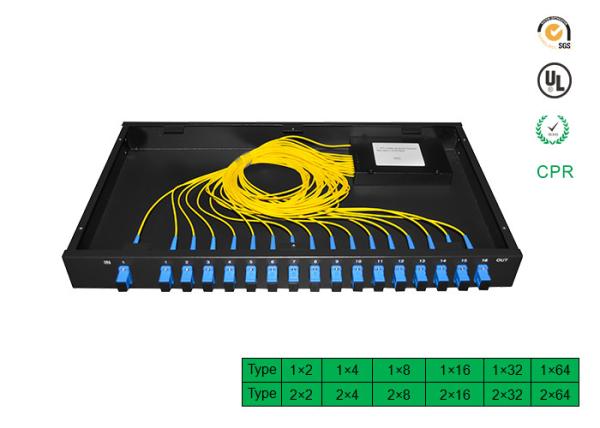

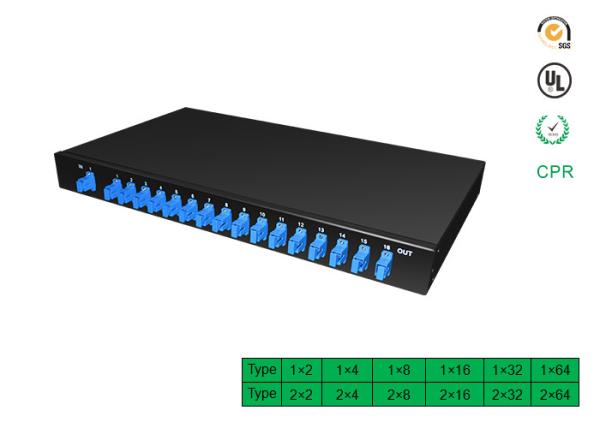

5. Rack type PLC splitter Module

6. Tray assembly PLC splitter Module

7. Flat Quick-Connect Termination Type PLC Splitter Module

Factory directly selling price for 1x64 PLC Optical Fiber Splitter Rack optical splitter with SC APC connector

1×N PLC Splitter (Measured at room temperature and includes connector loss)

Type Nx2 Nx4 Nx8 Nx16 Nx32 Nx64
Fiber Type Single mode G657A1 or customized made
Operating Wavelength 1260~1650nm
Insertion Loss (dB) Typical 3.9 7.1 10.3 13.3 16.3 19.8
Maximum 4.1/4.3 7.4/7.6 10.5/10.8 13.8/14.0 16.8/17.0 20.8/21.3
Loss Uniformity (dB) Max 0.6 0.6 0.8 1.2 1.5 2.0
Polarization Dependent Loss(dB) Max 0.15 0.15 0.2 0.2 0.2 0.3
Directivity(dB) MINI 55
Return Loss (dB) MINI UPC≥50 APC≥60
Operating Temperature (℃) -40~85
Storage Temperature (℃)

-40~85

Competitive Advantage
DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; And good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.
