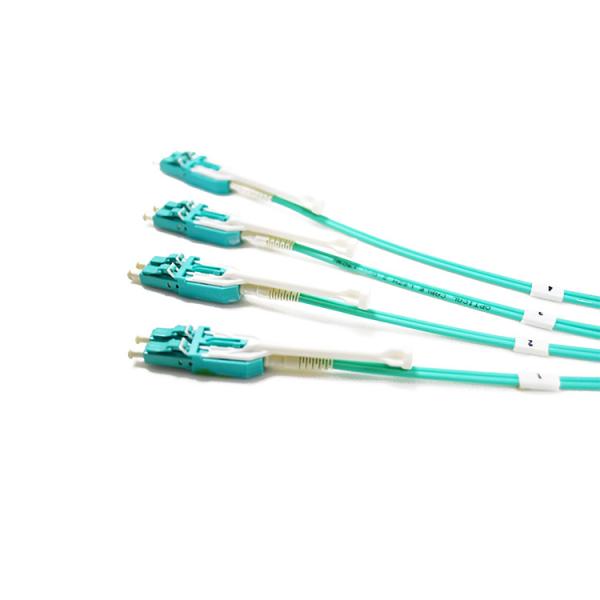

12 core om3 40G mpo-lc fiber optic cable
12 core om3 40G mpo-lc fiber optic cable
12 core om3 40G mpo-lc fiber optic cable
12 core om3 40G mpo-lc fiber optic cable
12 core om3 40G mpo-lc fiber optic cable
12 core om3 40G mpo-lc fiber optic cable
12 core om3 40G mpo-lc fiber optic cable
12 core om3 40G mpo-lc fiber optic cable
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
DYS/OEM
Certification :
IS09001-2015.ROHS
Model Number :
40G mpo-lc cable
MOQ :
Negotiable
Price :
Negotiable
Packaging Details :
Individual box or according to customer's request
Delivery Time :
IN 3 Days
Payment Terms :
T/T or L/C,Western Union or Paypal
Supply Ability :
500000PCS / Month
Polishing type :
PC
Inserion Loss :
<0.5db
Return Loss :
>35db
Length :
1m, 3m, 10m,Customized
Jacket :
Riser (OFNR), Plenum (OFNP), LSZH
Description
Quick Details

Place of Origin:Guangdong, China (Mainland)

Brand Name:DYS/OEM

Model Number:40G mpo-lc cable

Name:40G mpo-lc cable

Polishing type:PC

Inserion Loss:<0.5db

Return Loss:>35db

Length:1m, 3m, 10m,Customized

Jacket Colors:Aqua, Orange, Green, Red, Blue, Gray, Black, Yellow

Jacket:Riser (OFNR), Plenum (OFNP), LSZH

Connector Brand:Senko

Fiber Brand:YOFC, Corning

Certifaction:ISO9001, ROHS

Packaging & Delivery
Packaging Details Individual Export Package
Delivery Time 3 days

MPO/MTP trunk multicore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network installation or reconfiguration time and cost, they are used to interconnect cassettes, plane or fan outs.
It offered in fiber types in standard 8, 12, 24 or 48 cores versions using a compact and rugged micro cables structure.
The compact cable optimize cableway use and improve airflow.
These MPO/MTP cable are built with highest quality components.
Low loss elite versions are offered, featuring low insertion loss for demanding high speed networks where power budgets are critical.

Applications

  1. Data communication network
  2. Optical system access network
  3. Storage area network fiber channel
  4. High density architectures

Features and benefits

  1. Utilize MPO/MTP connectors
  2. Rapid deployment
  3. Factory terminated
  4. 100% tested (test data supplied)
  5. High-density cable
  6. Optimized performance
  7. Compliant to directive 2002/95/EC (RoHS)and REACH SvHC
  8. MPO connector complies with IEC-61754-7 and EIA/TIA-604-5

Specifications

Rich Text Editor, longKeySpecificationList, Press ALT 0 for help

Parameter
Mode Single mode Multimode
Polish PC, APC PC
Insertion Loss Standard ≤0.7dB ≤0.5dB
Elite Low Loss ≤0.35dB ≤0.3dB
Return Loss PC≥50dB; APC≥60dB ≥30dB
Test Wavelength 1310/1550nm 850/1310nm
Durability(500 Matings) ≤0.2dB
Operating Temperature -20℃~+70℃
Storage Temperature -40℃~+85℃
Fire Resistant IEC 60794-2-30
Standards-Compliant RoHS, IEC and GR-326
Specification
Fiber Type OS2, OM1, OM2, OM3, OM4
Cord type 8, 12, 24, 48, 72, 96, 144 cores
Cable diameter 3.0mm(8 or 12 or 24 core), 5.5(24core), or Customized
Cable jacket LSZH, OFNR, OFNP
Length(M) 0.3m,1m,2m,5m,10m,25m,50m,100m
