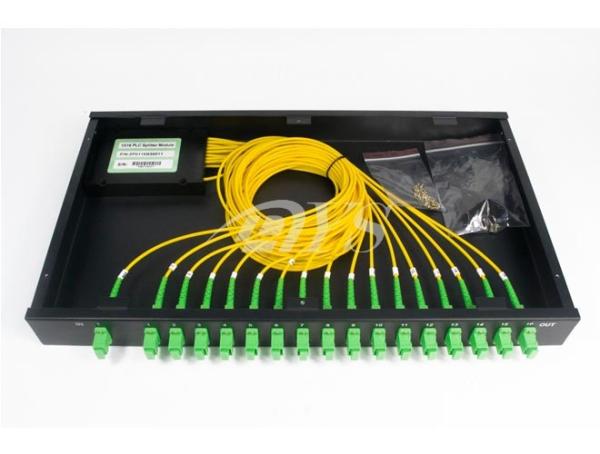

SC/APC 1*16 PLC Optical Fiber Splitter Rack Mount Box Low Excess Loss
SC/APC 1*16 PLC Optical Fiber Splitter Rack Mount Box Low Excess Loss
SC/APC 1*16 PLC Optical Fiber Splitter Rack Mount Box Low Excess Loss
SC/APC 1*16 PLC Optical Fiber Splitter Rack Mount Box Low Excess Loss
Specifications
Brand Name :
DYS/OEM
Model Number :
1*16 PLC
Certification :
IS09001-2015.ROHS
Place of Origin :
shenzhen
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
50000/Week
Delivery Time :
in 3 days
Packaging Details :
Individual Box or According to Customer's Request
Model Number: :
1*16
Length :
1m ,1.5m, 2m or customized length
Ferrule Polish :
APC,UPC,PC
Application :
FTTH FTTB FTTX Network
Product name :
PLC splitter
Color :
12 colors are available
Description

Fiber Optical with SC/APC Connector 1*16 PLC Splitter

Description of PLC Splitter

PLC splitter is based on planar Lightwave circuit technology and precision aligning process, can divide a single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN. PLC splitter is applied in FTTX deployments, PON networks, CATV links and optical signal distribution currently. Siemax’ PLC splitter offers superior optical performance, high stability and high reliability, meet various application requirements in different environments.

Application

1. FTTX networks

2. PON networks

3. CATV links

4. Data Communication

Types

1. Basic type PLC splitter

2. SFF type PLC splitter

3. 900um Fan-out Type PLC Splitter

4. Cassette type PLC splitter Module

5. Rack type PLC splitter Module

6. Tray assembly PLC splitter Module

7. Flat Quick-Connect Termination Type PLC Splitter Module

Feature

1. Low Insertion Loss

2. Low Polarization Dependent Loss

3. Wide Operation Wavelength

4. Wide Operation Temperature

5. High Stability and Reliability

6. Telcordia GR-1209 and GR-1221 Compliance

7. YD/T 2000.1-2009 Compliance (TLC Product Certificate Compliance)

Specification

Parameter Unit 1×2 1×4 1×6 1×8 1×12 1×16 1×32 1×64
Premium Grade
Insertion Loss at 23°C Typ. dB 3.9 6.8 9.3 10 12.1 13.2 16.5 20
Max dB 4 7 9.6 10.4 12.6 13.5 16.8 20.5
Channel Uniformity Max dB 0.6 0.8 1 1 1.6 1.6 1.6 2
PDL Typ. dB 0.1 0.1 0.1 0.1 0.2 0.2 0.2 0.2
Max dB 0.2 0.3 0.3 0.3 0.3 0.3 0.3 0.5
Standard Grade
Insertion Loss at 23°C Typ. dB 4 7 9.5 10.4 12.4 13.6 17 20.5
Max dB 4.2 7.3 10 10.6 12.8 13.8 17.1 20.8
Channel Uniformity Max dB 0.6 0.8 1 1 1 1.4 1.6 2
PDL Typ. dB 0.1 0.1 0.1 0.1 0.2 0.2 0.2 0.3
Max dB 0.2 0.3 0.3 0.2 0.3 0.3 0.3 0.5
Return Loss Min dB 55 (Premium Grade)/50 (Standard Grade)
Directivity Min dB 55
Operation Wavelength nm 1260~1650
Operation Temperature °C -4-~+85
Storage Temperature °C -4-~+85
Fiber Type - G.657A or Customized

Competitive Advantage

DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.
