1x16 ABS PLC splitter with SC APC connector Optical Fiber Splitter ABS box
1x16 ABS PLC splitter with SC APC connector Optical Fiber Splitter ABS box
1x16 ABS PLC splitter with SC APC connector Optical Fiber Splitter ABS box
1x16 ABS PLC splitter with SC APC connector Optical Fiber Splitter ABS box
1x16 ABS PLC splitter with SC APC connector Optical Fiber Splitter ABS box
1x16 ABS PLC splitter with SC APC connector Optical Fiber Splitter ABS box
Specifications
Brand Name :
DYS/OEM
Model Number :
1x16 ABS PLC splitter
Certification :
IS09001-2015.ROHS
Place of Origin :
shenzhen
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T or L/C,Western Union or Paypal
Supply Ability :
500000PCS / Month
Delivery Time :
3-5 work days
Packaging Details :
Individual box or according to customer's request
Brand Name: :
DYSFO
Place of Origin: :
Guangdong, China (Mainland)
Model Number: :
1x16 ABS PLC splitter
Splitter type: :
PLC tube type
Splitter type :
steel tube type /ABS box
Splitting Ratio :
1:2, 1:4, 1:16, 1:32, 2:16.....
Loose Tube Diameter :
0.9mm, 2.0mm, 3.0mm
Fiber Type :
G657A1 or customized
Ferrule Polish :
APC,UPC,PC
Length :
Customize
Application :
FTTH FTTB FTTX Network
Description

DYS Fiber Optic PLC (planar lightwave circuit) splitter is fabricated by using silica optical waveguide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in PON networks to realize optical signal power management. We provide a whole series of 1 x N and 2 x N splitters that are tailored for specific applications. All products meet Telcordia 1209 and 1221 reliability requirements and are certified by TLC for network development requirment.

DYS' PLC splitter quality control, minimizing products risk
1)100% raw material testing
2)Semi-finished products pass the High and low temperature cycle testing
3)Finished product pass the High and low temperature cycle testing again
4)100% performance testing before shipping

Feature
Ultra-end insertion loss and associated loss of polarization
Good spectral uniformity
Wide wavelength bandwidth
Wide range of working environment
High reliability
Small

Application
FTTX Systems
GEPON Networks
CATV
Optical Signal Distribution

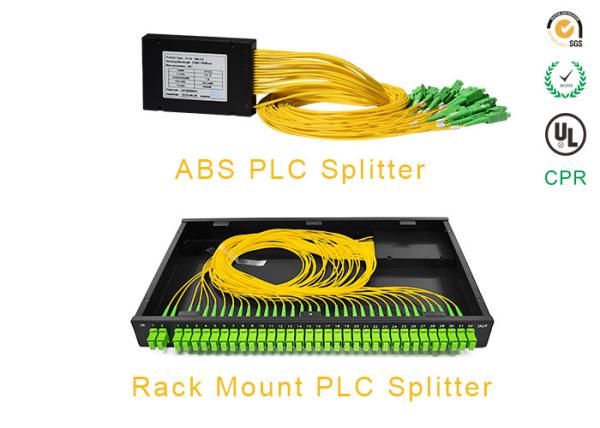

1x16 ABS PLC splitter with SC APC connector Optical Fiber Splitter ABS box

Product Parameters

Parameter/Type Nx2(N=1or2) Nx4(N=1or2) Nx8(N=1or2) Nx16(N=1or2) Nx32(N=1or2) Nx64(N=1or2)
Fiber 9/125 um SMF-28e or customer appoint
Operating Wavelength(nm) 1260~1650(nm)
Insertion Loss ≤3.9dB ≤7.1dB ≤10.3dB ≤13.3dB ≤16.3dB ≤19.8dB
Loss Uniformity(dB) ≤0.6dB ≤0.6dB ≤0.8dB ≤1.2dB ≤1.5dB ≤2.0dB
Polariation Dependent Loss ≤0.15dB ≤0.15dB ≤0.2dB ≤0.2dB ≤0.2dB ≤0.3dB
Return Loss UPC≥50dB APC≥60dB
Directivity ≥55dB
Working Temperature(℃) -40°C to +85°C
