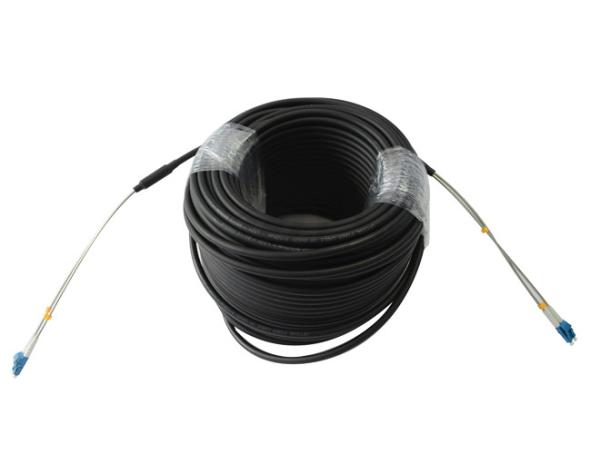

LC-LC Duplex Fiber Optic Cable Outdoor Cable Assembly Patch Cord CPRI-FTTA
LC-LC Duplex Fiber Optic Cable Outdoor Cable Assembly Patch Cord CPRI-FTTA
LC-LC Duplex Fiber Optic Cable Outdoor Cable Assembly Patch Cord CPRI-FTTA
LC-LC Duplex Fiber Optic Cable Outdoor Cable Assembly Patch Cord CPRI-FTTA
LC-LC Duplex Fiber Optic Cable Outdoor Cable Assembly Patch Cord CPRI-FTTA
LC-LC Duplex Fiber Optic Cable Outdoor Cable Assembly Patch Cord CPRI-FTTA
LC-LC Duplex Fiber Optic Cable Outdoor Cable Assembly Patch Cord CPRI-FTTA
LC-LC Duplex Fiber Optic Cable Outdoor Cable Assembly Patch Cord CPRI-FTTA
LC-LC Duplex Fiber Optic Cable Outdoor Cable Assembly Patch Cord CPRI-FTTA
LC-LC Duplex Fiber Optic Cable Outdoor Cable Assembly Patch Cord CPRI-FTTA
LC-LC Duplex Fiber Optic Cable Outdoor Cable Assembly Patch Cord CPRI-FTTA
LC-LC Duplex Fiber Optic Cable Outdoor Cable Assembly Patch Cord CPRI-FTTA
Specifications
Brand Name :
DYS/OEM
Model Number :
LC-LC SM duplex
Certification :
IS09001-2015.ROHS
Place of Origin :
Guangdong, China (Mainland)
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
15000PCS connectors/day
Delivery Time :
5-7days
Packaging Details :
44*44*50cm
Connector :
LC PC SM
Fiber type :
SM
Diameter :
4.8/7.0mm
cable jacket :
LSZH,PE,PU,Armoured or Non Armoured
color of cable :
black
insertion loss :
<=0.3dB
return loss :
>=50dB
Waterproof level :
IP67
Description

LC-LC Duplex CPRI-FTTA Outdoor Cable Assembly Patch Cord

Parameters

ITEM

Description

Q'TY

1

2Core Indoor/Outdoor Fibers cable

1 PC

2

Break Out Kits

2 PCS

3

3.0mm Armoured Tube

4 PCS

4

LC Boot

4 PCS

5

LC Duplex Clips

2 PCS

6

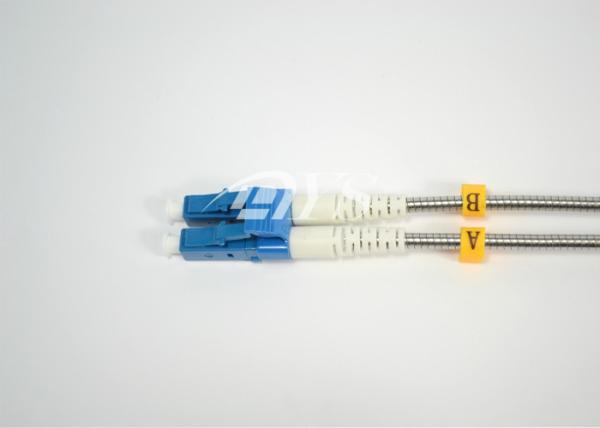

LC/UPC SM duplex connector blue

2 PCS

Cable Structure for option:

Type1: LSZH+Kevlar+2×Tight Buffer(4.8mm/7.0mm);

Type2 :LSZH+Armoured+Kevlar+2×2.0mm Cable(7.0mm);

Type3: PE+Armoured+Kevlar+2×2.0mm Cable(7.0mm);

Type4 :LSZH+Armoured+Kevlar+2×0.9mm Cable(4.8mm or 7.0mm);

Type5: PE+Armoured+Kevlar+2×0.9mm Cable(4.8mm or 7.0mm);

Type6: LSZH+ Kevlar+2×2.0mm Cable +2×2.0mmTube(7.0mm);

Type5 :PE+Armoured+Kevlar+2×2.0mm Cable (7.0mm);

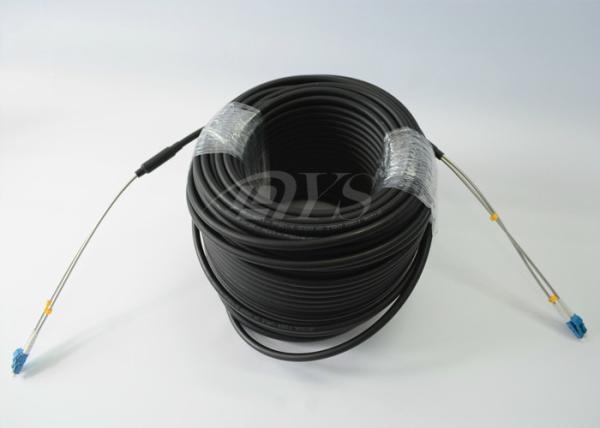

LC-LC Duplex Fiber Optic Cable Outdoor Cable Assembly Patch Cord CPRI-FTTA

Application:

1>FTTA , WiMax base station,CATV outdoor Application;

2>Optional Diameter:4.8mm,7.0mm or Customized;

3>Optiional Jacket:LSZH,PE,PU.,Armoured or Non Armoured;

4>IP67 Waterproof protection

LC-LC Duplex Fiber Optic Cable Outdoor Cable Assembly Patch Cord CPRI-FTTA

Assembly Performance:

Item

Data

Insertion Loss

≤0.3dB

Return Loss

SM/UPC≥50dB,SM/APC≥60dB,MM≥35dB

Mechanical life

500cycles

Working temperature

-40°C~+70°C

Storage temperature

-40°C~+70°C

Operating temperature

-10°C~+50°C

Protection Level

IP67

Tensile Data

Tensile between junction and fiber cable≥100N

Authentication

Meet with RoHS

Cable Specification:

Item

Data

fiber

OS2,OM1,OM2,OM3,OM4

Tension member

Aramid Kevlar,Armoured Tube

Max. attenuation

SM:≤0.34dB/km at 1310nm,≤0.20dB/km at 1550nm

MM:≤0.60dB/km at 1300nm,≤2.3dB/km at 850nm

Tensile resistance(short term)

500N(no breakage)

Crush resistance(short term/long term)

1000N/100mm

inflaming retarding

IEC 60332-3

Temperature

-40~+70°C

Uvioresistant

PASS

Authentication

Meet with RoHS &UL
