Specifications
Brand Name :
DYS/OEM
Model Number :
NSN -NSN
Certification :
IS09001-2015.ROHS
Place of Origin :
Guangdong, China (Mainland)
Fiber type :
SM 9/125,MM 50/125,MM 62.5/125
Fiber count :
Duplex
Cable jacket :
PVC,LSZH
Cable Diameter :
7.0mm
Insertion loss :
≤0.2dB
Return Loss :
≥50dB
Certifaction :
ISO9001, ROHS
MOQ :
Negotiable
Price :
Negotiable
Description

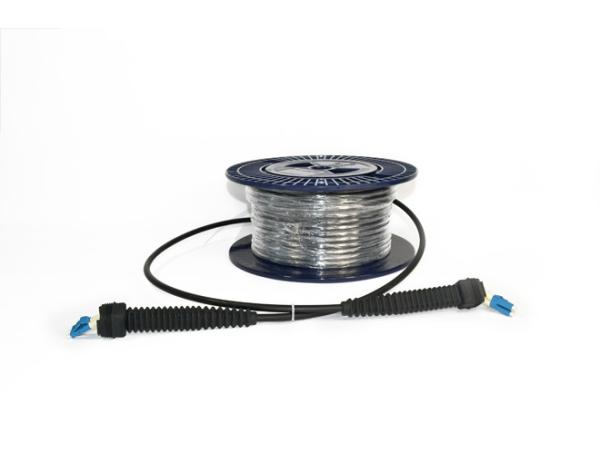

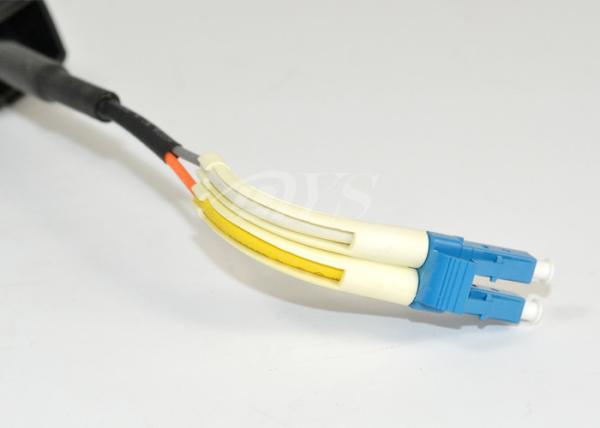

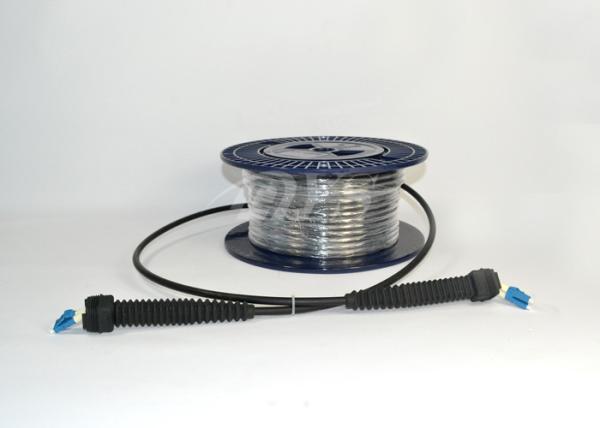

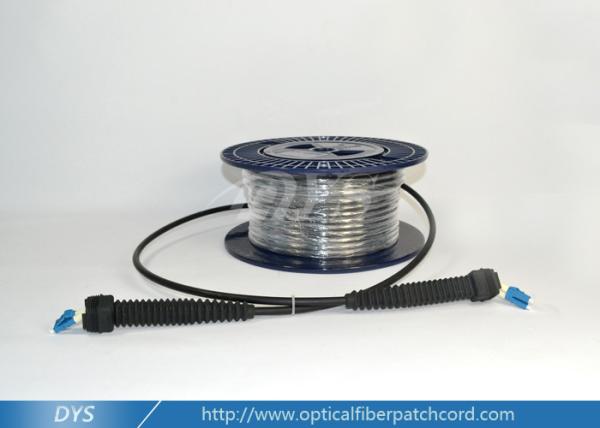

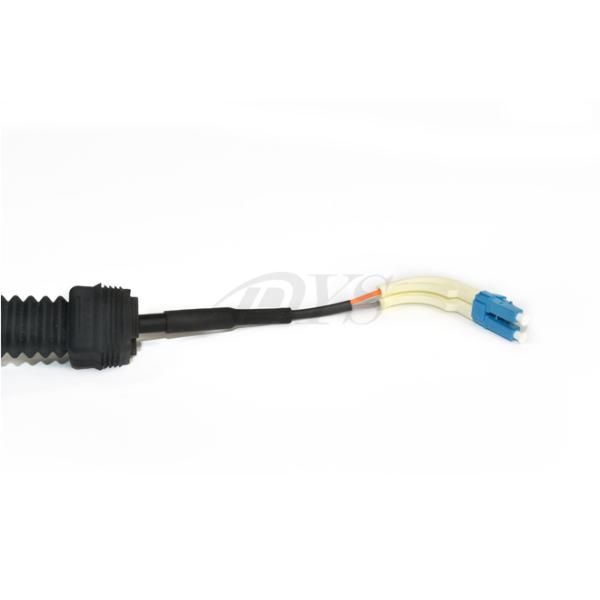

NSN Outdoor Fiber Optic Cable Assemblies With IP67 Waterproof Protection

1.Feature:NSN Outdoor Fiber Optic Drop Cable Assemblies IP67 Waterproof Protection Durable

1>FTTA , WiMax base station,CATV outdoor Application;

2>Optional Diameter:4.8mm,7.0mm or Customized;

3>Optional Jacket:LSZH,PE,PU.,Armoured or Non Armoured;

4>IP67 Waterproof protection;

NSN Outdoor Fiber Optic Drop Cable Assemblies IP67 Waterproof Protection Durable

2. Drawing:

NSN Outdoor Fiber Optic Drop Cable Assemblies IP67 Waterproof Protection Durable NSN Outdoor Fiber Optic Drop Cable Assemblies IP67 Waterproof Protection Durable

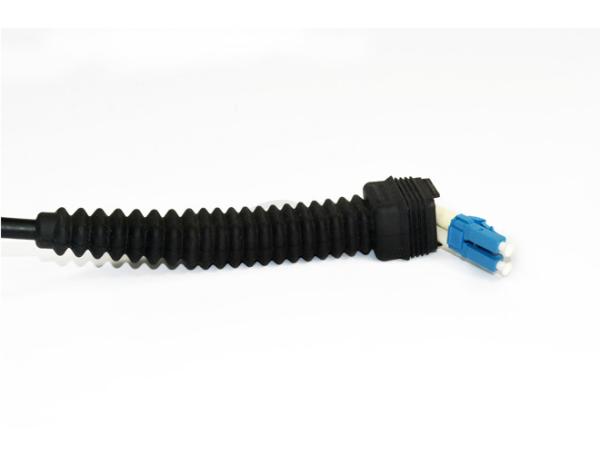

NSN Boot(for 7.0mm Cable) NSN Boot(For 4.8mm boot)

NSN Outdoor Fiber Optic Drop Cable Assemblies IP67 Waterproof Protection Durable

3. Assembly Performance:

Item

Data

Insertion Loss

≤0.2dB

Return Loss

SM/UPC≥55dB,SM/APC≥65dB,MM≥35dB

Mechanical life

500cycles

Working temperature

-40°C~+70°C

Storage temperature

-40°C~+70°C

Operating temperature

-10°C~+50°C

Protection Level

IP67

Tensile Data

Tensile between junction and fiber cable≥100N

Authentication

Meet with RoHS

4. Cable Specification:

Item

Data

fiber

OS2,OM1,OM2,OM3,OM4

Tension member

Aramid Kevlar,Armoured Tube

Max. attenuation

SM:≤0.34dB/km at 1310nm,≤0.20dB/km at 1550nm

MM:≤0.60dB/km at 1300nm,≤2.3dB/km at 850nm

Tensile resistance(short term)

500N(no breakage)

Crush resistance(short term/long term)

1000N/100mm

inflaming retarding

IEC 60332-3

Temperature

-40~+70°C

Uvioresistant

PASS

Authentication

Meet with RoHS &UL
