Specifications
Brand Name :
DYS/OEM
Model Number :
ST Field assembly Connector
Certification :
IS09001-2015.ROHS
Place of Origin :
shenzhen
MOQ :
Negotiable
Price :
Negotiable
Description

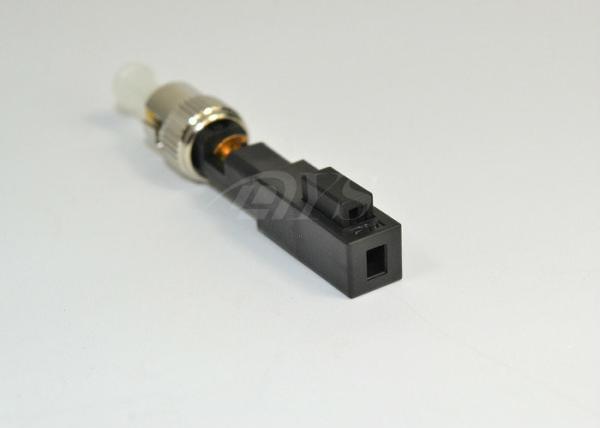

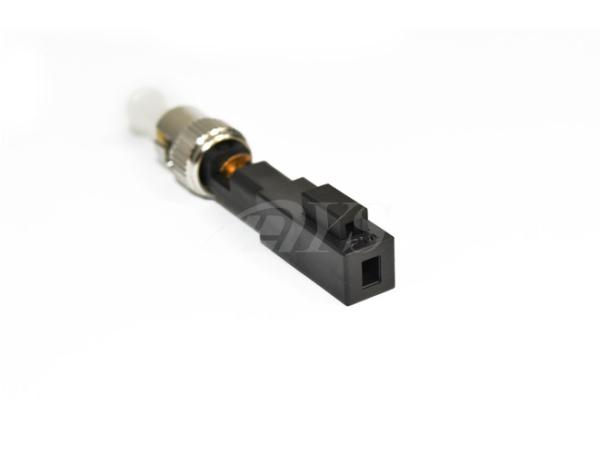

ST Fast Optical Fiber Connectors Ceramic Ferrule with Pre-embedded Fiber

Specifications

It enable easy and fast fiber termination in the field. It is possible to reconnect, so can be reduced the rate

Description

1. Twin end-face of pre embedded fiber is polised in the factory..

2. Fiber optics is aligned in V-groove through the ceramic ferrule.

3. Side cover design provide complete preservation of the matching liquid.

4. Ceramic ferrule with pre-embedded fiber is polished to UPC.

5. Length of the FTTH cable is controllable

6. Simple tooling, easy operation, portable style and reusable design.

7. Connector size: 49.5*7*6mm or produced as per client's request.

Technical specification

Item

Parameter

Cable Scope

3.0 x 2.0 mm Bow-type Drop Cable

Fiber Diameter

125μm ( 652 & 657 )

Coating Diameter

250μm

Mode

SM

Operation Time

about 15s(exclude fiber presetting)

Insertion Loss

≤ 0.25dB(1310nm & 1550nm)

Return Loss

≤ -45dB

Success Rate

>98%

Reusable Times

>10 times

Tensile Strength

>5 N

Tighten Strength of Coating

>10 N

Temperature

-40~+85°C

On-line Tensile Strength Test (20 N)

IL ≤ 0.3dB

Mechanical Durability(500 times)

IL ≤ 0.3dB

Drop Test(4m concrete floor, once each direction, three times total)

IL ≤ 0.3dB

Relevant Solutions

  • Easy operating, The connector can be directly used in ONU, also with fasten strength more than 5 kg, it is widely used in FTTH project of network revolution. It also reduce the use of sockets and adapters, save cost of project.
  • With 86 standard socket and adapter, the connector makes connection between drop cable and patch cord. The 86 standard socket provides complete protection with its unique design.
