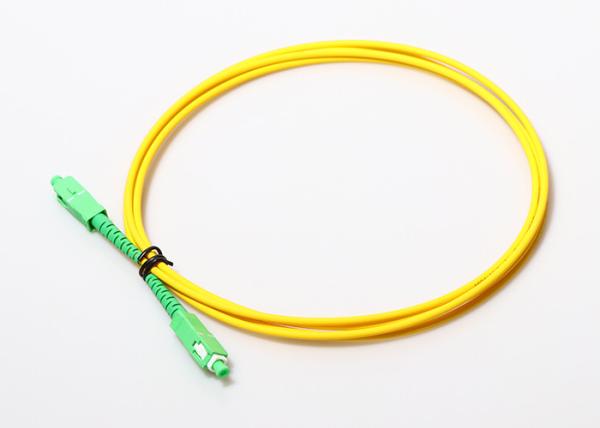

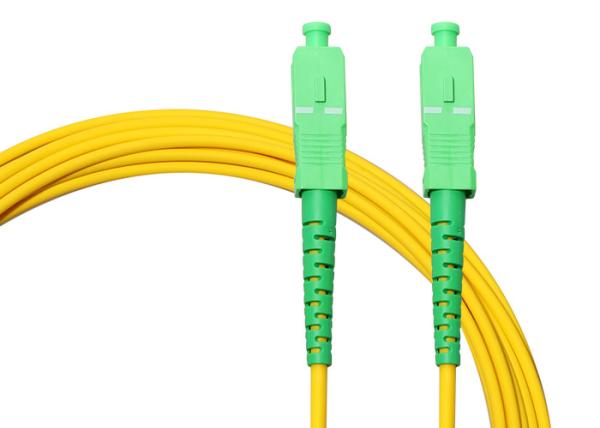

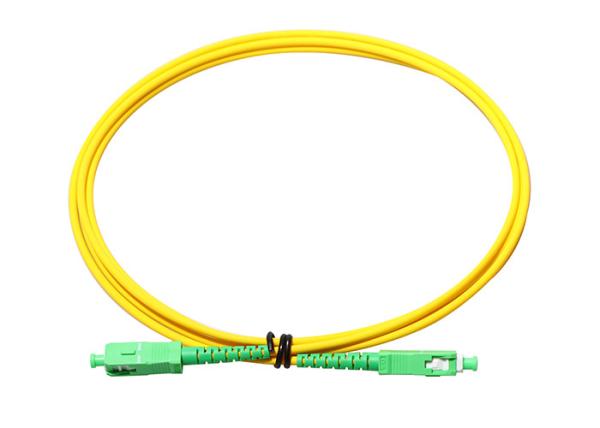

SC/APC To SC/APC 3m Simplex LSZH Sfp Optical Fiber Patch Cord
SC/APC To SC/APC 3m Simplex LSZH Sfp Optical Fiber Patch Cord
SC/APC To SC/APC 3m Simplex LSZH Sfp Optical Fiber Patch Cord
SC/APC To SC/APC 3m Simplex LSZH Sfp Optical Fiber Patch Cord
SC/APC To SC/APC 3m Simplex LSZH Sfp Optical Fiber Patch Cord
SC/APC To SC/APC 3m Simplex LSZH Sfp Optical Fiber Patch Cord
SC/APC To SC/APC 3m Simplex LSZH Sfp Optical Fiber Patch Cord
SC/APC To SC/APC 3m Simplex LSZH Sfp Optical Fiber Patch Cord
SC/APC To SC/APC 3m Simplex LSZH Sfp Optical Fiber Patch Cord
SC/APC To SC/APC 3m Simplex LSZH Sfp Optical Fiber Patch Cord
Specifications
Brand Name :
DYS/OEM
Model Number :
Optical Fiber Patch Cord
Certification :
IS09001-2015.ROHS
Place of Origin :
Guangdong, China (Mainland)
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
3-5 work days
Packaging Details :
Individual box or according to customer's request
Fiber Type :
SM/MM/OM3
Connector :
SC LC FC ST
Insertion loss :
IL<0.2db
Return Loss :
UPC 60dB
Function :
equipment connecting
Application :
Military industry
Color :
Yellow
Description

SC/APC To SC/APC Singlemode 3m Simplex LSZH Sfp Fiber Optic Patch Cord

1.Fiber optic patch cord is available in both singlemode and multimode versions.

2.Both singlemode and multimode versions fiber optic patch cord come with a zirconia ceramic ferrule with pre-polished PC,UPC,APC profile and convex spherical end.

3.These end face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability

APPLICATION

1.Telecommunications

2.CATV, LAN, MAN, WAN, Test &Measurement

3.Military industry

4.Medical

FEATURES

1.Low insertion loss and back reflection loss

2.Ferrule end surface pre-domed

3.Excellent mechanical endurance

4.Good in repeatability

5.Good in exchange

6.Green Production, CE, RoHS Standard

SC/APC To SC/APC 3m Simplex LSZH Sfp Optical Fiber Patch Cord

SC/APC To SC/APC 3m Simplex LSZH Sfp Optical Fiber Patch Cord

PRODUCT PARAMETERS

Mode Single mode Multimode
Polish UPC APC PC
Insertion Loss ≤0.30dB ≤0.20dB ≤0.20dB
Return Loss ≥50dB ≥60dB ≥30dB
Test Wavelength 1310/1550nm 850/1310nm
Durability(500 Matings) ≤0.2dB
Operating Temperature -40℃~+60℃
Storage Temperature -45℃~+85℃
Fire Resistant IEC 60794-2-30
Standards-Compliant ROHS,IEC and GR-326

Fiber type Single mode: (1)9/125-G652D (2)9/125-G655 (3)9/125-G657A,G657A2 (4)9/125-G657B3
Multimode: (5)50/125-OM2 (6)62.5/125-OM1 (7)50/125-OM3 (8)50/125-OM4 (9)50/125-OM5
Fiber Brand YOFC, Corning, Sumitomo, Fujikura
Connector SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC
Cord type Simplex ,Duplex
Cable diameter 0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm
Cable jacket PVC, OFNR, LSZH, OFNP
length(M) 0.5m,1m,2m,5m,10m,25m,50m,100m…Customized
