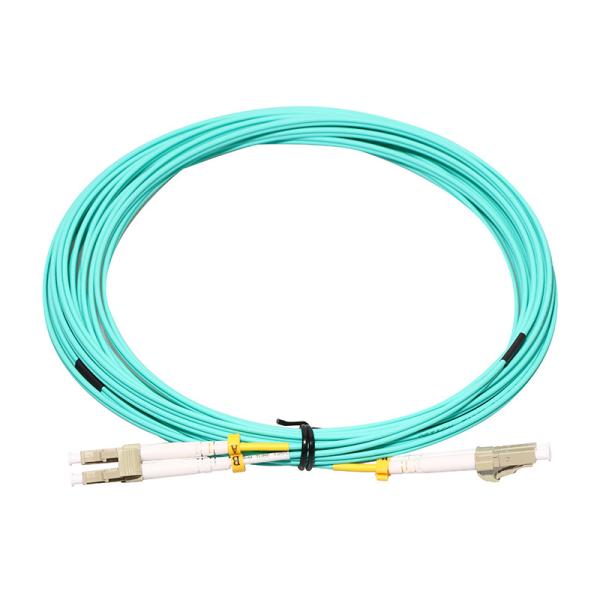

OM3 LC LC Connector Armored Fiber Optic Patch Cord
OM3 LC LC Connector Armored Fiber Optic Patch Cord
OM3 LC LC Connector Armored Fiber Optic Patch Cord
OM3 LC LC Connector Armored Fiber Optic Patch Cord
OM3 LC LC Connector Armored Fiber Optic Patch Cord
OM3 LC LC Connector Armored Fiber Optic Patch Cord
Specifications
Brand Name :
DYS/OEM
Model Number :
LC-LC patch cord
Certification :
IS09001-2015.ROHS
Place of Origin :
Guangdong, China (Mainland)
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Delivery Time :
3-5 work days
Packaging Details :
Individual box or according to customer's request
Fiber Type :
SM/MM/OM3
Connector :
SC LC FC ST
Fiber type :
SM or MM
Application :
FTTH FTTB FTTX Network
Color :
blue or Cusomized
Length :
Customized
Material :
PVC/LSZH
Product name :
Fiber Optic Patch Cord
Description

Factory Price armoured fiber optic patch cord With om3 Lc-Lc Connector

FEATURES

1.Good in exchange

2.Ferrule end surface pre-domed

3.Green Production, CE, RoHS Standard

4.Good in repeatability

5.Low insertion loss and back reflection loss

6.Excellent mechanical endurance

APPLICATION

1.Military industry

2.CATV, LAN, MAN, WAN, Test &Measurement

3.Telecommunications

4.Medical

LC-LC fiber optic patch cordis used for linking the equipment and components in the fiber optic network. They are with various kinds of fiber optic connector types. The fiber optic patch cord types are classified by the fiber optic connector types. There are PC, UPC, APC type fiber patch cord. They are different because of the polish of fiber connector.

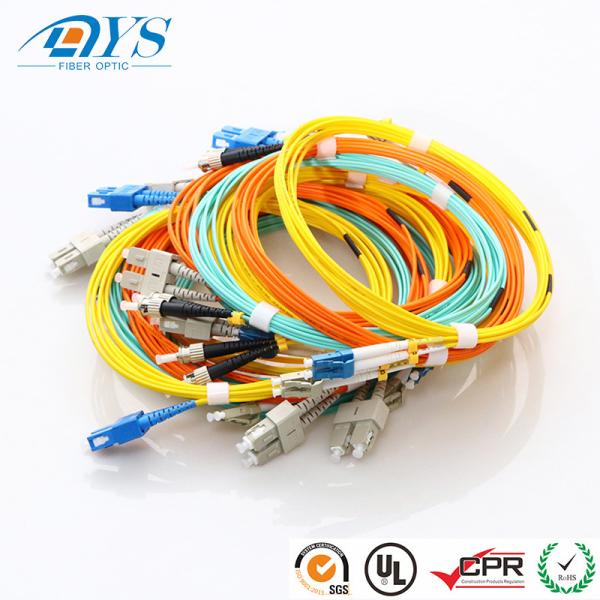

1.Fiber optic patch cord is available in both singlemode and multimode versions.

2.Both singlemode and multimode versions fiber optic patch cord come with a zirconia ceramic ferrule with pre-polished PC,UPC,APC profile and convex spherical end.

3.These end face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability

OM3 LC LC Connector Armored Fiber Optic Patch CordOM3 LC LC Connector Armored Fiber Optic Patch Cord

OM3 LC LC Connector Armored Fiber Optic Patch Cord

PRODUCT PARAMETERS

Mode Single mode Multimode
Polish UPC APC PC
Insertion Loss ≤0.30dB ≤0.20dB ≤0.20dB
Return Loss ≥50dB ≥60dB ≥30dB
Test Wavelength 1310/1550nm 850/1310nm
Durability(500 Matings) ≤0.2dB
Operating Temperature -40℃~+60℃
Storage Temperature -45℃~+85℃
Fire Resistant IEC 60794-2-30
Standards-Compliant ROHS,IEC and GR-326

Fiber type Single mode: (1)9/125-G652D (2)9/125-G655 (3)9/125-G657A,G657A2 (4)9/125-G657B3
Multimode: (5)50/125-OM2 (6)62.5/125-OM1 (7)50/125-OM3 (8)50/125-OM4 (9)50/125-OM5
Fiber Brand YOFC, Corning, Sumitomo, Fujikura
Connector SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC
Cord type Simplex ,Duplex
Cable diameter 0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm
Cable jacket PVC, OFNR, LSZH, OFNP
length(M) 0.5m,1m,2m,5m,10m,25m,50m,100m…Customized

OM3 LC LC Connector Armored Fiber Optic Patch Cord

OM3 LC LC Connector Armored Fiber Optic Patch Cord

OM3 LC LC Connector Armored Fiber Optic Patch Cord

OM3 LC LC Connector Armored Fiber Optic Patch Cord

OM3 LC LC Connector Armored Fiber Optic Patch Cord

OM3 LC LC Connector Armored Fiber Optic Patch Cord
