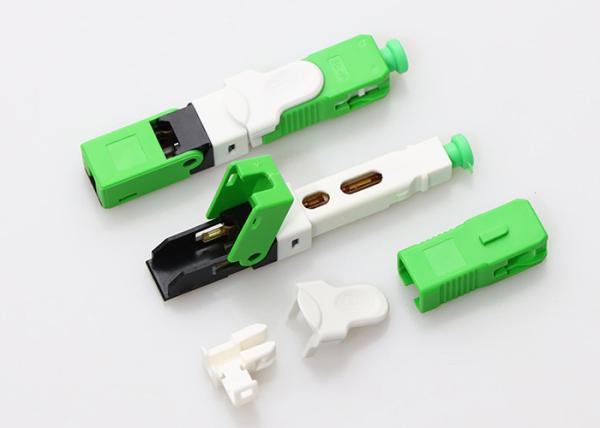

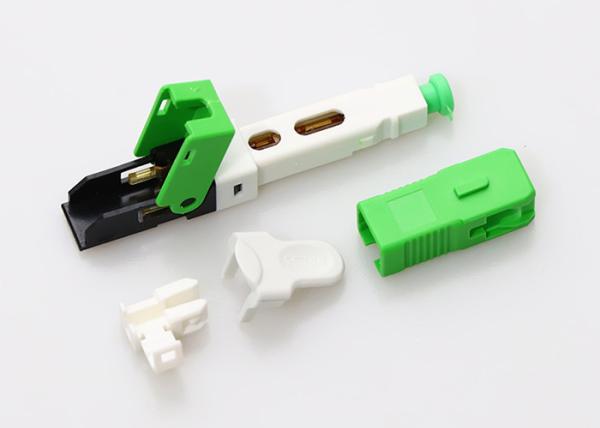

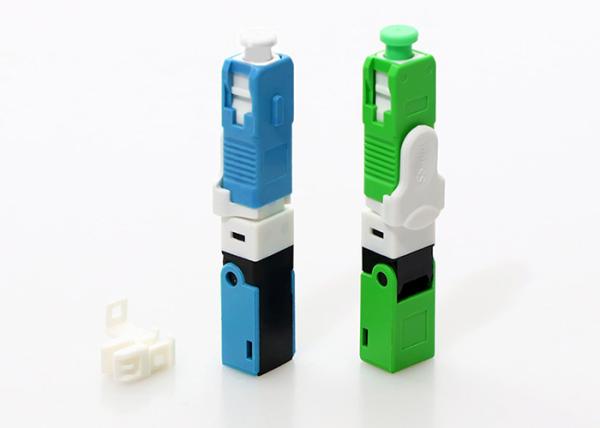

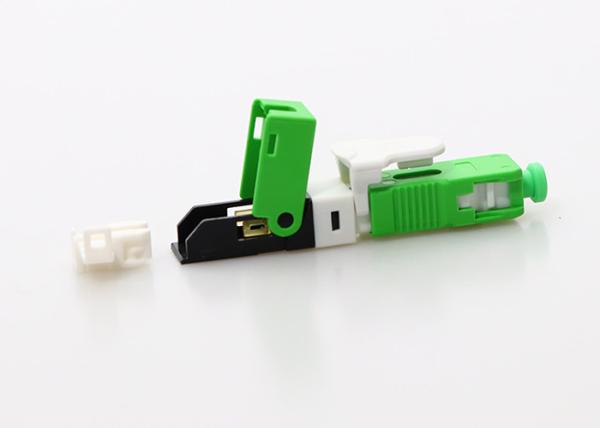

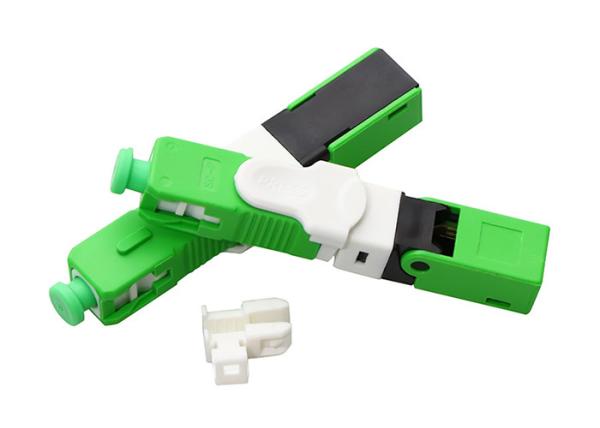

ESC250D Single Mode SC APC Fast Connector For FTTH
ESC250D Single Mode SC APC Fast Connector For FTTH
ESC250D Single Mode SC APC Fast Connector For FTTH
ESC250D Single Mode SC APC Fast Connector For FTTH
ESC250D Single Mode SC APC Fast Connector For FTTH
ESC250D Single Mode SC APC Fast Connector For FTTH
ESC250D Single Mode SC APC Fast Connector For FTTH
ESC250D Single Mode SC APC Fast Connector For FTTH
ESC250D Single Mode SC APC Fast Connector For FTTH
ESC250D Single Mode SC APC Fast Connector For FTTH
Specifications
Brand Name :
DYS/OEM
Model Number :
SC/LC/FC
Certification :
IS09001-2015.ROHS
Place of Origin :
Guangdong, China (Mainland)
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T or L/C,Western Union or Paypal
Supply Ability :
500000PCS / Month
Delivery Time :
IN 3 Days
Packaging Details :
Individual box or according to customer's request
Type :
Quick Connector
Application :
field assembly
Color :
Green, Black
Product name :
Fiber Optic SC APC Fast Connector
Fiber type :
SM/MM
Operating temperature :
-40°C ~ +80°C
Name :
fiber optic fast/quick connector
Description

FTTH ESC250D Single-Mode Fiber Optic Quick Connector SC APC Fast Connector

Feature
1. FTTH project usable

2. Field installable

3. Insert loss less than 0.3dB

4. Metal V-shape cavity work well in high and low temperature

5. Installation less than 1 minutes

6. Reliable and superior optical performance


Technical specification

Item Parameter
Cable Scope 3.0 x 2.0 mm &2.0*1.6mm Drop Cable
Size 51*9*7.55mm
Fiber Diameter 125μm ( 652 & 657 )
Coating Diameter 250μm
Mode SM SC/APC SC/UPC
Operation Time about 15s(exclude fiber presetting)
Insertion Loss ≤ 0.5dB(1310nm & 1550nm)
Return Loss SC/APC≤ 55dB SC/UPC ≤ 50dB
Success Rate >98%
Reusable Times >10 times
Tighten Strength of Naked Fiber >5 N
Tensile Strength >50 N
Temperature -40 ~ +85 C
On-line Tensile Strength Test (20 N) IL ≤ 0.3dB
Mechanical Durability(500 times) IL ≤ 0.3dB
Drop Test(4m concrete floor, once each direction, three times total) IL ≤ 0.3dB

Fiber Optic Mechanical Connector designed for FTTH is a new generation of fiber connector used in assembly. It can provide Open flow and Precast
type of products, whose optical and mechanical specification meets the standard optical fiber connector. it is designed for high quality and high
efficiency for installation. the structure of crimping position is a unique design, and need not gluing, polishing neither any consumables.
Adapted fiber pre-installed structure, and convenient for field installation.

Application
1. Distribution frames

2. Maintenance or emergency restoration of fiber networks

3. Patch panels

4. FTTH Outlets

5. Field word

ESC250D Single Mode SC APC Fast Connector For FTTHESC250D Single Mode SC APC Fast Connector For FTTHESC250D Single Mode SC APC Fast Connector For FTTH

ESC250D Single Mode SC APC Fast Connector For FTTHESC250D Single Mode SC APC Fast Connector For FTTH

ESC250D Single Mode SC APC Fast Connector For FTTH
