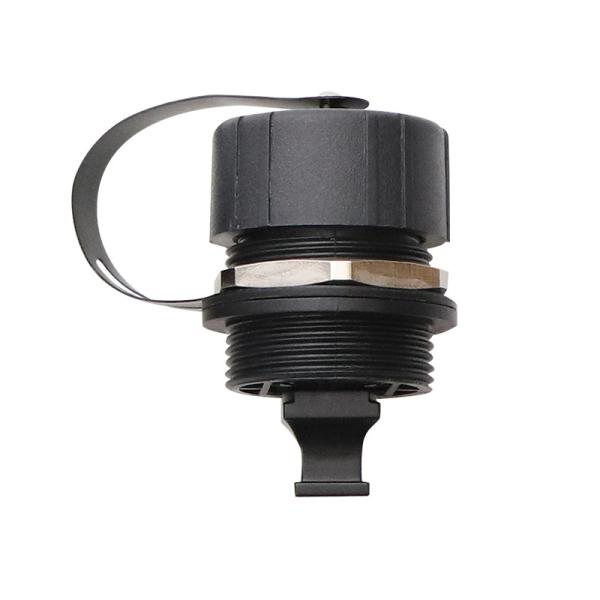

SX SM IP67 MPO ODVA Fiber Optic Adapter With Dust Cap
SX SM IP67 MPO ODVA Fiber Optic Adapter With Dust Cap
SX SM IP67 MPO ODVA Fiber Optic Adapter With Dust Cap
SX SM IP67 MPO ODVA Fiber Optic Adapter With Dust Cap
SX SM IP67 MPO ODVA Fiber Optic Adapter With Dust Cap
SX SM IP67 MPO ODVA Fiber Optic Adapter With Dust Cap
Specifications
Brand Name :
DYS/OEM
Model Number :
Odva MPO Adapter
Certification :
ISO9001,RoHS
Place of Origin :
Shenzhen（China）
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T or L/C,Western Union or Paypal
Supply Ability :
500000PCS /DAY
Delivery Time :
3-5 work days
Packaging Details :
Individual box or according to customer's request
Type: :
Fiber Optic Adapter
Specification: :
IP67
Connector type :
SC,MPO,LC
Operating temperature :
-40℃ to 85℃
Use :
FTTA
Application :
FTTH FTTB FTTX Network
Warranty :
3 years
Description

Sx Sm Waterproof MPO Odva Adapter with Dust Cap

Applications

· CATV networks

· LAN

· Fiber optic transmission system

· Testing/Measurement Instruments

· Fiber distribution frame, Mounts in Fiber Optic Wall Mount and Rack Mount Cabinets

The IP67 MPO ODVA waterproof adapter is used for harsh industrial or outdoor environments, mounts case side to panel or enclosure, female simplex singlemode MPO pass-thru receptacle to female duplex MPO connectors, quick-release quarter-turn bayonet locking to cable shield, gasket seals provide IP67 rated water tight and dust free protection.

　Operating Performance Outdoor MPO ODVA Waterproof Adapter
PC APC
Insertion Loss (dB) < 0.3 < 0.3
Durability (500 Mating) (dB) < 0.1 < 0.1
Operation Temperature (°C) -40 to 80 -40 to 80
Retention Force (N) 200-600 200-600
Tensile Strength (kgf) 10 10
Housing Material PC PC
Mounting Style Screw/Clip Screw/Clip
Sleeve Alignment Material Ceramic (Grade A) Ceramic (Grade A)
Housing Color Black Black

SX SM IP67 MPO ODVA Fiber Optic Adapter With Dust Cap

SX SM IP67 MPO ODVA Fiber Optic Adapter With Dust Cap

SX SM IP67 MPO ODVA Fiber Optic Adapter With Dust Cap

SX SM IP67 MPO ODVA Fiber Optic Adapter With Dust Cap

SX SM IP67 MPO ODVA Fiber Optic Adapter With Dust Cap
