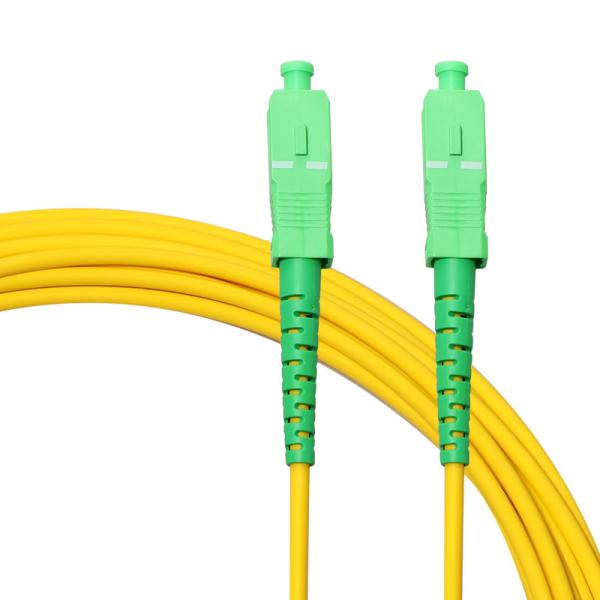

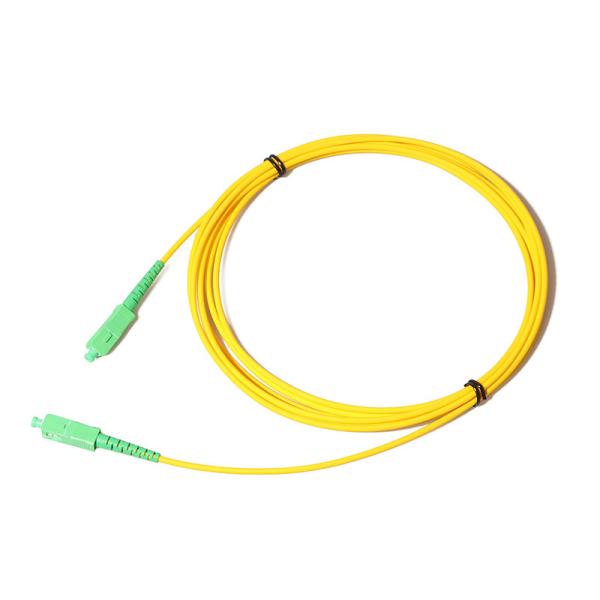

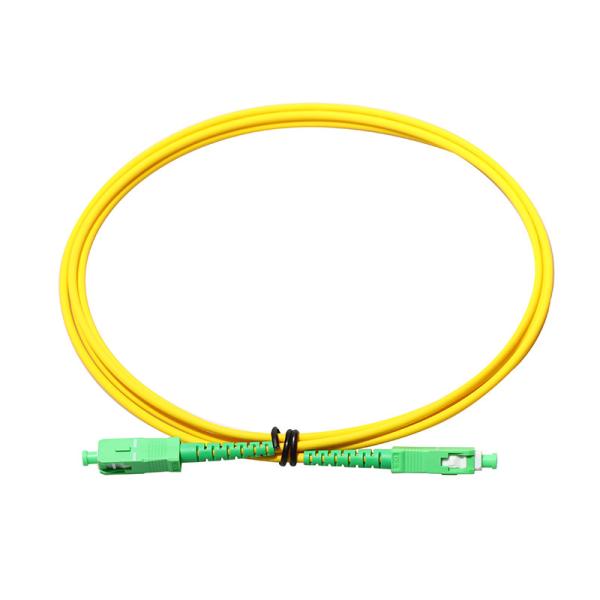

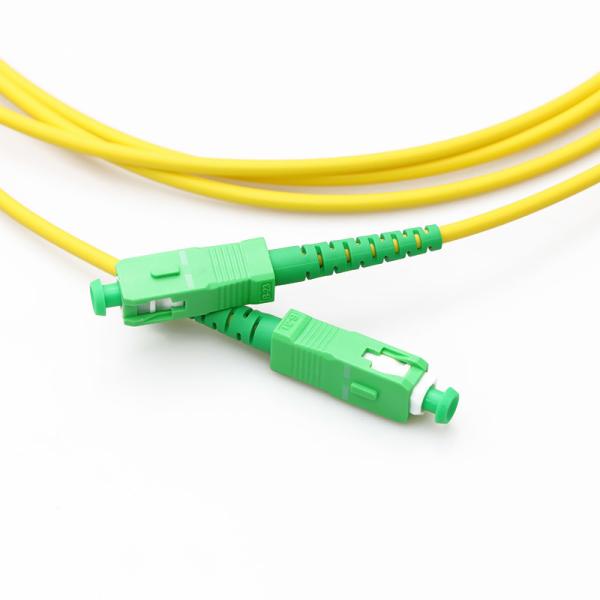

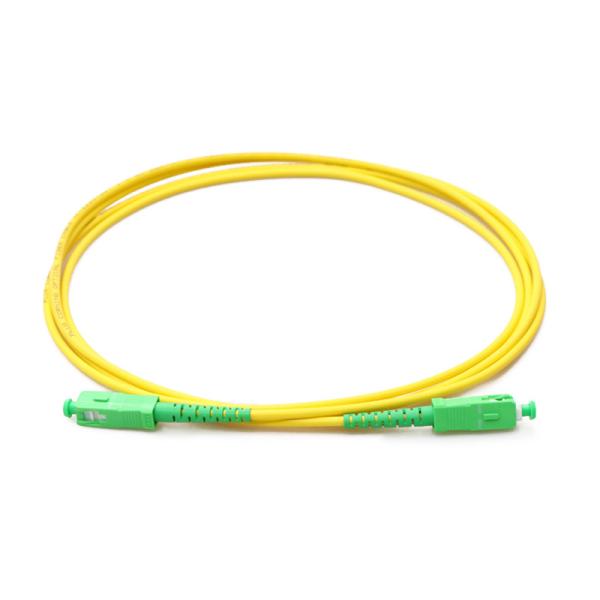

1.6mm 2m SC APC Single Mode Fiber Optic Patch Cord
1.6mm 2m SC APC Single Mode Fiber Optic Patch Cord
1.6mm 2m SC APC Single Mode Fiber Optic Patch Cord
1.6mm 2m SC APC Single Mode Fiber Optic Patch Cord
1.6mm 2m SC APC Single Mode Fiber Optic Patch Cord
1.6mm 2m SC APC Single Mode Fiber Optic Patch Cord
1.6mm 2m SC APC Single Mode Fiber Optic Patch Cord
1.6mm 2m SC APC Single Mode Fiber Optic Patch Cord
1.6mm 2m SC APC Single Mode Fiber Optic Patch Cord
1.6mm 2m SC APC Single Mode Fiber Optic Patch Cord
Specifications
Brand Name :
DYS/OEM
Model Number :
SC-SC patch cord
Certification :
IS09001-2015.ROHS
Place of Origin :
Guangdong, China (Mainland)
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Delivery Time :
3-5 work days
Packaging Details :
Individual box or according to customer's request
Fiber Type :
SM/MM/OM3
Connector :
SC/apc
Single-Mode Fiber :
SM
Multi-Mode Fiber :
MM
Use :
FTTH/FTTX, FTTH
Application :
FTTH
Color :
Yellow
Operating Temperature :
-40℃~80℃
Durability :
≥1000matings
Description

factory price SC/APC single mode fiber optic patch cord 2m

FC/SC/ST/LC patchcord & pigtail provide a table and reliable connection both SM or MM and single or dual fiber. PC,UPC,and APC is optional. 0..9mm,2.0mm,3.0mm fiber cable is optional.

Feature:

* PC/UPC/APC three types optional.

* High return reflect loss and low insertion loss.

* Single mode fiber and multi-mode fiber optional.

* High reliability, stability and good interchangeability.

* 100% tested on optical performance.

* Available in 0.9mm, 2.0mm, 3.0mm sizes.

* Device Termination.

1.6mm 2m SC APC Single Mode Fiber Optic Patch Cord1.6mm 2m SC APC Single Mode Fiber Optic Patch Cord

1.6mm 2m SC APC Single Mode Fiber Optic Patch Cord

PRODUCT PARAMETERS

Mode Single mode Multimode
Polish UPC APC PC
Insertion Loss ≤0.30dB ≤0.20dB ≤0.20dB
Return Loss ≥50dB ≥60dB ≥30dB
Test Wavelength 1310/1550nm 850/1310nm
Durability(500 Matings) ≤0.2dB
Operating Temperature -40℃~+60℃
Storage Temperature -45℃~+85℃
Fire Resistant IEC 60794-2-30
Standards-Compliant ROHS,IEC and GR-326

Fiber type Single mode: (1)9/125-G652D (2)9/125-G655 (3)9/125-G657A,G657A2 (4)9/125-G657B3
Multimode: (5)50/125-OM2 (6)62.5/125-OM1 (7)50/125-OM3 (8)50/125-OM4 (9)50/125-OM5
Fiber Brand YOFC, Corning, Sumitomo, Fujikura
Connector SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC
Cord type Simplex ,Duplex
Cable diameter 0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm
Cable jacket PVC, OFNR, LSZH, OFNP
length(M) 0.5m,1m,2m,5m,10m,25m,50m,100m…Customized

1.6mm 2m SC APC Single Mode Fiber Optic Patch Cord

1.6mm 2m SC APC Single Mode Fiber Optic Patch Cord

1.6mm 2m SC APC Single Mode Fiber Optic Patch Cord

1.6mm 2m SC APC Single Mode Fiber Optic Patch Cord

1.6mm 2m SC APC Single Mode Fiber Optic Patch Cord

1.6mm 2m SC APC Single Mode Fiber Optic Patch Cord
