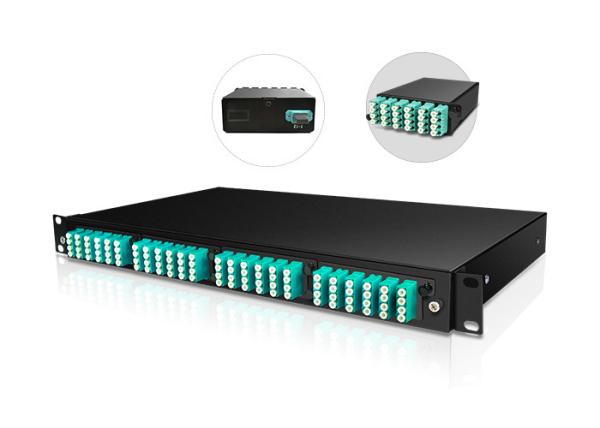

96 Port MTP Mpo Cassette Patch Panel Rack Mount Steel Material
96 Port MTP Mpo Cassette Patch Panel Rack Mount Steel Material
Specifications
Brand Name :
DYS/OEM
Model Number :
96 Port MPO Patch Panel
Certification :
ISO9001:2008
Place of Origin :
Guangdong, China (Mainland)
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T or L/C,Western Union or Paypal
Supply Ability :
500000PCS / Month
Delivery Time :
3-5 work days
Packaging Details :
Individual box or according to customer's request
Fiber Count :
72, 96 , 144, 288
Connector type :
MPO/MTP LC
Pass geometry test or now :
100% passed
Height :
1U, 2U, 3U, 4U
Material :
Steel with Powder coating or Aluminium
Description

96 Port MTP Mpo Cassette Patch Panel Rack Mount Steel Material

Application

Data communication network

Storage area networking fiber channel

High density architectures

Optical System Access network

Features and Benefits

Made in the China of powder coated steel

Custom preloaded panel options are available

Complete line of cable anchors for rack or panel attachment

96 Port MTP Mpo Cassette Patch Panel Rack Mount Steel Material

DYS’s High Density (HD) Series patch panels offer an extra slot that accepts up to four adapter panels or MPO cassettes in the 1RU footprint. This design has been accomplished by staggering the mounting ears. The HD patch panels are ideal for high fiber count applications and will fit into any standard 19” or 23” rack by rotating the panel’s mounting ears.

DYS Fiber Optic Products division offers a complete line of LGX based rack mount panels for 19” and 23” racks,The product line also includes a complete line or offering of MPO cassette modules for MPO trucks splitting to SFP+, QSFP+, CFP+ and CXP. premises wall mount and NEMA rated outside plant panels. The panels can be configured to be patching, splicing or patch and splicing.

Specifications

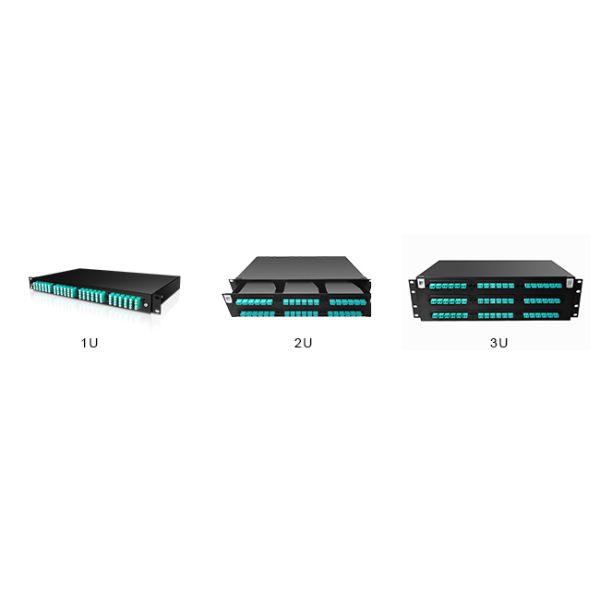

Size 1U(44.5mm) 2U(89.0mm) 3U(132.0mm) 4U(176.0mm)
Ports 3 6 9 12
Width 482mm
Depth 250mm
Net Weight 2.75KG 3.8KG 4.35KG 6.6KG
Gross Wright 3.05KG 4.1KG 4.7KG 7.1KG
Material Cold Rolled steel or Aluminium
Color Black, Grey, White
Complian to RoHS, REACH SVHC
