12 24 36 Cores Fiber Optic MTP MPO LGX Cassette Module Ultra Elite Adapter Cassette
12 24 36 Cores Fiber Optic MTP MPO LGX Cassette Module Ultra Elite Adapter Cassette
12 24 36 Cores Fiber Optic MTP MPO LGX Cassette Module Ultra Elite Adapter Cassette
12 24 36 Cores Fiber Optic MTP MPO LGX Cassette Module Ultra Elite Adapter Cassette
12 24 36 Cores Fiber Optic MTP MPO LGX Cassette Module Ultra Elite Adapter Cassette
12 24 36 Cores Fiber Optic MTP MPO LGX Cassette Module Ultra Elite Adapter Cassette
Specifications
Brand Name :
DYS/OEM
Model Number :
MPO/MTP Cassettes
Certification :
IS09001-2015.ROHS
Place of Origin :
Guangdong, China (Mainland)
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T or L/C,Western Union or Paypal
Supply Ability :
500000PCS / Month
Delivery Time :
3-5 work days
Packaging Details :
Individual box or according to customer's request
Material :
Steel with Powder coating or Aluminium
Fiber Count :
8,12,24,
Color :
Black , beige or customized
Packing :
Individual Box
Pass geometry test or now :
100% passed
Model :
Singlemode or Mulitmode
Polish :
APC or PC
Description

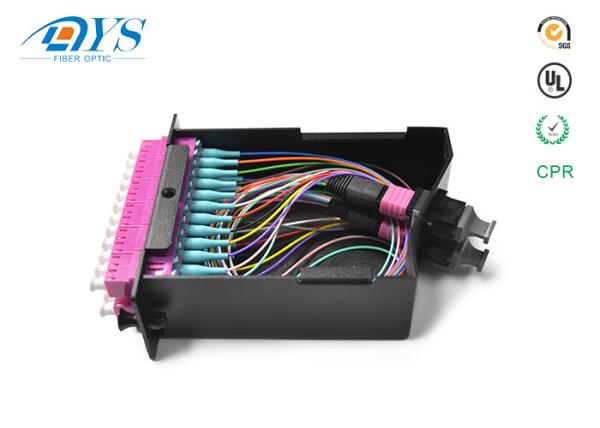

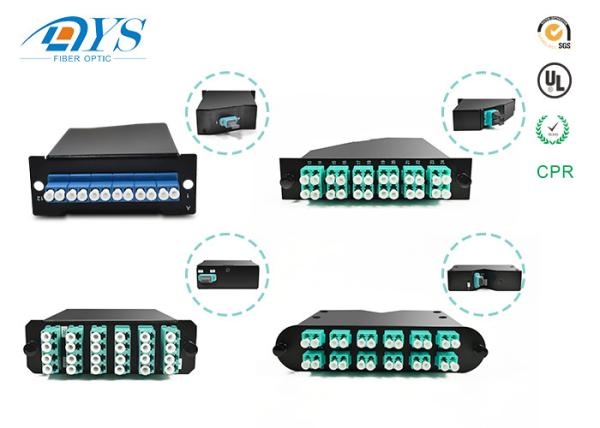

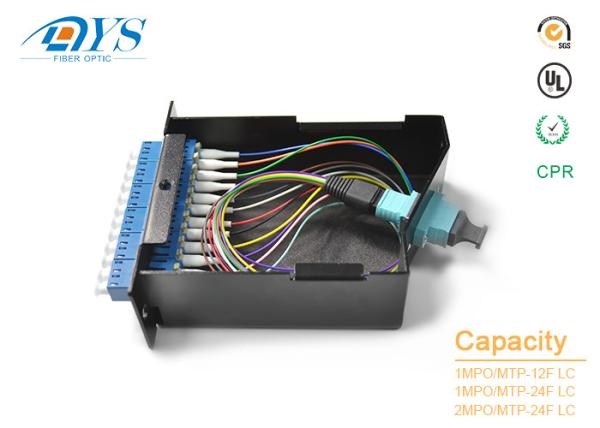

MPO/MTP cassette capable of accepting 6-24 fibers. These cassettes are suitable for use with Singlemode, Multimode 62.5 and 50um, as well as Laser Optimized, OM3 applications and are available in LC, SC, ST, FC, MTRJ connector types.

MPO/MTP cassette comes pre-installed with the required adapters featuring Zirconia Ceramic sleeves for enhanced compatibility with all applications. Adapters are color-coded according to the application in use (Blue = 9/125; Beige = 62.5 and 50um; Aqua = OM3; Green = APC). All adapters come standard with dust covers.

APPLICATION

Implementation of the structured cabling in Data Centers

FEATURES

100% pre-terminated and tested in factory to ensure transfer performance

Rapid configuration and networking, reduce installation time

Supports 40G and 100G network applications


12 24 36 Cores Fiber Optic MTP MPO LGX Cassette Module Ultra Elite Adapter Cassette

12 24 36 Cores Fiber Optic MTP MPO LGX Cassette Module Ultra Elite Adapter Cassette

12 24 36 Cores Fiber Optic MTP MPO LGX Cassette Module Ultra Elite Adapter Cassette

12 24 36 Cores Fiber Optic MTP MPO LGX Cassette Module Ultra Elite Adapter Cassette

Fiber Cable Perfomance Specifications

Fiber Type OS2, OM1, OM2, OM3, OM4
Fiber Count 8, 12, 24, 48, 72, 96, 144 cores
Cable Diameter 3.0mm 5.5mm or customized
Jacket Color Yeloow, Orange, Aqua, Purple
Jacket Material OFNR, OFNP, PVC, LSZH
Tensile Strength 500N
Operating Temperature -20 to 70 ℃
Storage Temperature -40 to 75℃


12 24 36 Cores Fiber Optic MTP MPO LGX Cassette Module Ultra Elite Adapter Cassette

Supply Ability

Supply Ability:
10000 Piece/Pieces per Week

Packaging & Delivery
Packaging Details Individual Antistatic packaging bag
Port Shenzhen
Lead Time 3 days




Competitive Advantage

DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, products exported to Europe and the United States and Southeast Asian countries.
