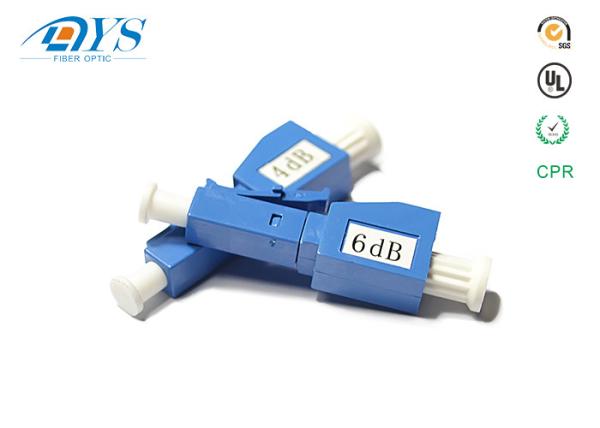

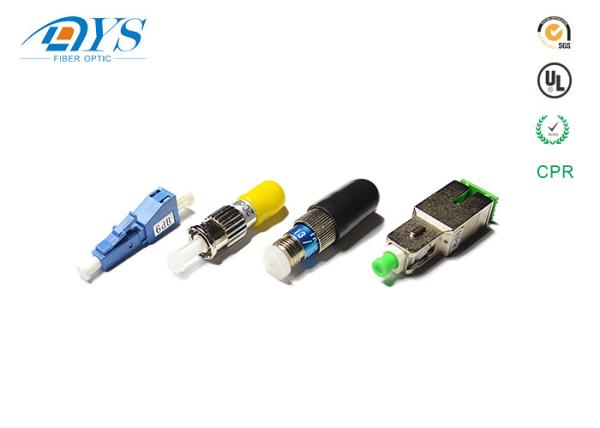

Plug type 1dB 3dB 5dB 10dB 20dB 25dB LC Fiber Optic attenuator fixed type optical attenuator Simplex Singlemode
Plug type 1dB 3dB 5dB 10dB 20dB 25dB LC Fiber Optic attenuator fixed type optical attenuator Simplex Singlemode
Plug type 1dB 3dB 5dB 10dB 20dB 25dB LC Fiber Optic attenuator fixed type optical attenuator Simplex Singlemode
Plug type 1dB 3dB 5dB 10dB 20dB 25dB LC Fiber Optic attenuator fixed type optical attenuator Simplex Singlemode
Specifications
Brand Name :
DYS/OEM
Model Number :
LC
Certification :
IS09001-2015.ROHS
Place of Origin :
Guangdong, China (Mainland)
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500000PCS / Month
Delivery Time :
3-5 work days
Packaging Details :
Individual box or according to customer's request
Connector type :
LC
Return Loss :
> 55dB (UPC) ≥ 65dB (APC)
Operational Temperature :
-40 to+ 75℃
Attenuation Tolerance :
1 to 10dB ± 0.5dB;11 to 30dB ±5%dB
operation wavelength :
1260 to 1650nm
Attenuation level range :
from 1 to 30dB
Description

Quick Details:

Model Number: LC

Attenuation range: 0-30 dB

Model Name: Adapter Type,Plgu Type

Color: Blue, green, metal

Polishing: PC/UPC/APC

Specifications:

1.Stable performance;
2.Low attenuation error,high return loss;
3.Bellcore standare
4,easy to operat

Features

1) High precision.

2) Good stability.

3) Small size and bulk.

4) Easy to operate.

5) Based on IEC/Telcordia Bell GR-326-Core Tested.

6) Optional adapter: SM/MM, Simplex/Duplex

7) 100% Optic test(Insertion loss ≤0.20dB)

Application

1 Fiber optic communication systems.

2 Fiber optic CATV

3 Fiber optic test

Plug type 1dB 3dB 5dB 10dB 20dB 25dB LC Fiber Optic attenuator fixed type optical attenuator Simplex Singlemode

data sheet

Parameter Value Unit
Operating Wavelength 1310/1550 ± 10 nm
Tolerance for 1~5 dB Attenuation ± 0.5 dB
Tolerance for 6~30 dB Attenuation ± 10 %
Return Loss > 50 dB
Operating Temperature -40 to +75 C
Polarization Dependent Loss < 0.1 dB
Mating Durability >1000

cycle
