Fiber Optic Ribbon Cable 24 Fiber SM MPO To LC Breakout Jumper MPO/MTP 0.9mm
Fiber Optic Ribbon Cable 24 Fiber SM MPO To LC Breakout Jumper MPO/MTP 0.9mm
Fiber Optic Ribbon Cable 24 Fiber SM MPO To LC Breakout Jumper MPO/MTP 0.9mm
Fiber Optic Ribbon Cable 24 Fiber SM MPO To LC Breakout Jumper MPO/MTP 0.9mm
Specifications
Brand Name :
DYS/OEM
Model Number :
MPO/MTP Harnesses Cables
Certification :
IS09001-2015.ROHS
Place of Origin :
Guangdong, China (Mainland)
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T or L/C,Western Union or Paypal
Supply Ability :
500000PCS / Month
Delivery Time :
3-5 work days
Packaging Details :
Individual box or according to customer's request
Fiber Type :
SM(G.652/G.657A)
Cable Diameter :
0.9mm
Insertion Loss :
less than 0.7dB /0.35dB
Jacket Materials :
LSZH/OFNR/PVC
Pass geometry test or now :
100% passed
Model :
Singlemode or Mulitmode
Polish :
APC or PC
Length :
35cm or customized
Description

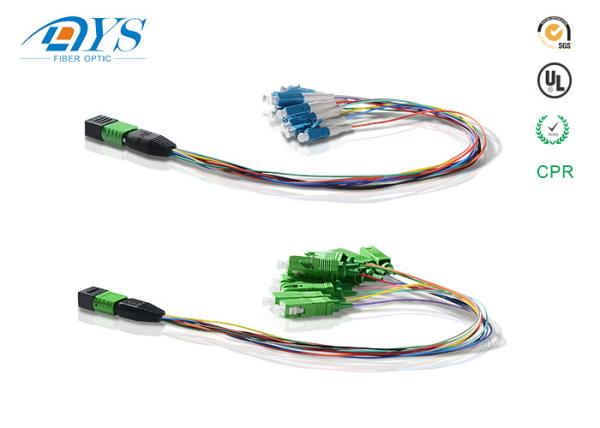

Fiber Optic Ribbon Cable 24 Fiber SM MPO To LC Breakout Jumper MPO/MTP Fan Out 0.9mm Patch Cords

APPLICATION

Data communication network

Optical System Access network

Storage area networking fiber channel

High density architectures


FEATURES

Economical solution for mass-termination of fiber

Designed for low loss and standard loss SM and MM applications

Ruggedized round cable, oval cable and bare ribbon options available

Color coded housings available to differentiate fiber type, polish type and/or connector grade

Good in repeatability and exchangeability


Fiber Optic Ribbon Cable 24 Fiber SM MPO To LC Breakout Jumper MPO/MTP 0.9mm

PRODUCT PARAMETERS

Performance Level Standard Elite
Connector Mode Endface IL(max) (dB) RL(min) (dB) IL(max) (dB) RL(min) (dB)
MPO/MTP SM 12F/APC ≤0.70 ≥60 ≤0.35 ≥60
24F/APC ≤0.75 ≥60 ≤0.35 ≥60
48F/APC ≤0.75 ≥60
MM 12F/PC ≤0.50 ≥20 ≤0.35 ≥20
24F/PC ≤0.50 ≥20 ≤0.35 ≥20
48F/PC ≤0.50 ≥20
LC/SC/FC/ST SM APC ≤0.30 ≥60 ≤0.10 ≥60
UPC ≤0.20 ≥50 ≤0.10 ≥50
MM PC ≤0.20 ≥30 ≤0.10 ≥30

Note:

1.Test wavelength:SM@1310/1550nm,MM@850/1300nm;

2.Standard conformance: GR-326,GR-1435.

Mechanical Properties
Item Criteria Conformance
△IL After 50 Matings MPO/MTP ≤0.3dB GR-1435
△IL After 500 Matings LC/SC/FC/ST ≤0.2dB IEC 61300-2-2
Min Bend Radius (Dynamic) 20*OD (Cable Diameter)
Min Bend Radius (Static ) 15*OD (Cable Diameter)

Environment Conditions
Item Criteria Conformance
Operation Temperature -40~60°C IEC 61753-1
Storage Temperature -45~85°C

Fiber Optic Ribbon Cable 24 Fiber SM MPO To LC Breakout Jumper MPO/MTP 0.9mm

Supply Ability

Supply Ability:
10000 Piece/Pieces per Week

Packaging & Delivery

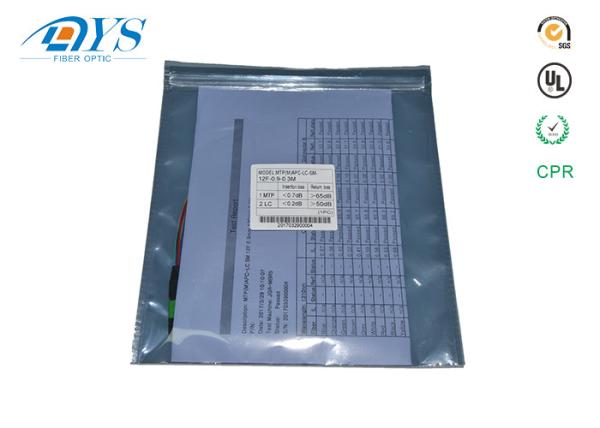

Packaging Details Individual Antistatic packaging bag
Port Shenzhen
Lead Time 3 days




Competitive Advantage

DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, products exported to Europe and the United States and Southeast Asian countries.
